Epson TM-T81 Technical & Specifications Manual

Confidential
EPSON
TITLE
SHEET
REVISION
NO
SHEETNEXT
18 17
TM-T81
Specification
(STANDARD)
A
2.2 Connectors
2.2.1 Interface Connectors
See Section 2.1, Interface.
2.2.2 Power Supply Connector
This connector is used to connect the printer to an external power source.
1) Pin assignments: See Table 2.2.1.
Table 2.2.1 Power Supply Connector Pin Assignments
Pin Number Signal Name
1 +24 V
2 GND
3 N.C
SHELL F.G.
SHELL

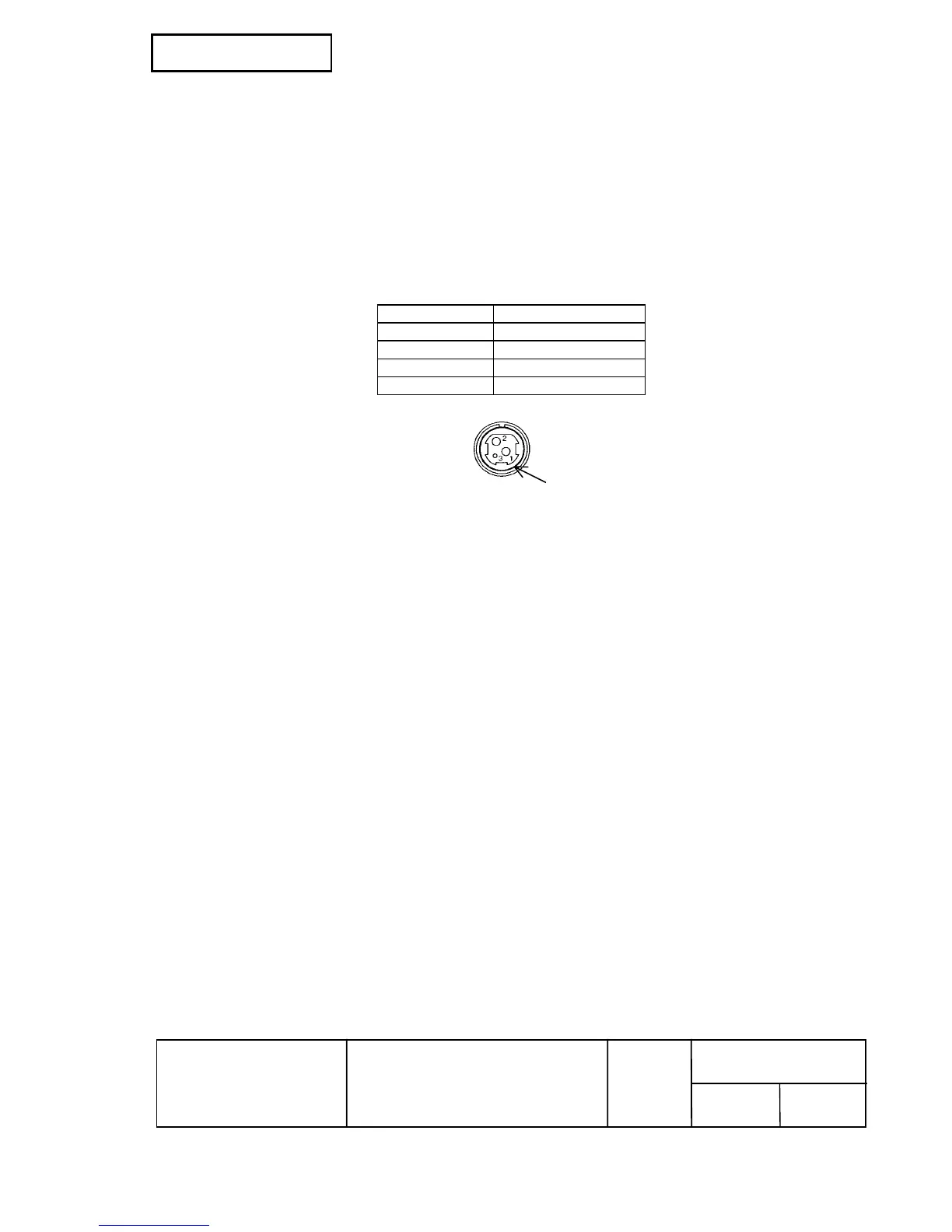

Figure 2.2.1 Power Supply Connector
NOTE: Be sure to ground the metal of the interface using the hole for the frame ground.
2) Connector model: Printer side: Hosiden TCS7960-532010 or equivalent
User side: Hosiden TCP8927-631100 or equivalent
Hosiden TCP8927-531100 or equivalent

Epson TM-T81 Specifications

General

Print Method	Thermal line printing
Autocutter	Yes
Interface	USB, Ethernet
Dimensions	140 mm (W) x 199 mm (D) x 146 mm (H)
Power Supply	AC 100 V - 240 V, 50 Hz - 60 Hz
Paper Width	79.5 ±0.5 mm
