Epson TM-T82II User Manual

Chapter 2 Setup
45
2
For USB Interface

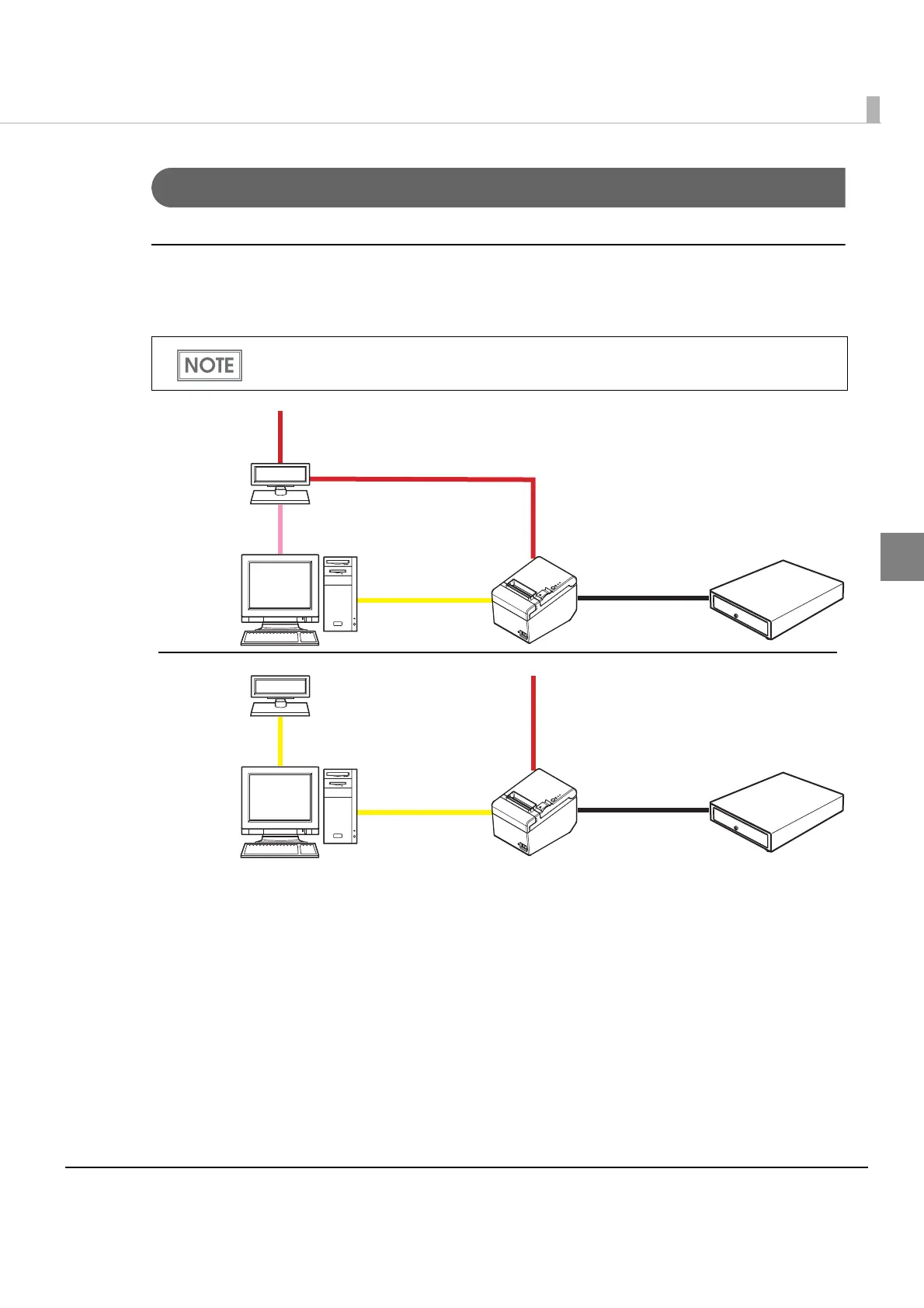

USB interface connection diagram
This printer is connected to the host computer via the USB port. When a customer display
(DM-D) is to be connected, connect it to the host computer via the serial port or USB port.
The modular cable is amounted on the cash drawer.
USB cable
Serial cable
Cash drawer
TM-T82II
Modular cable
Power supply unit
+ AC cable
DM-D
(Serial I/F model)
DM-D
(USB I/F model)
USB cable
USB cable
Modular cable
Cash drawer
Power supply unit
+ AC cable
TM-T82II
Extension cable
for power supply

Epson TM-T82II Specifications

General

Print Method	Thermal line printing
Print Speed	200 mm / sec
Auto Cutter	Yes
Paper Width	58 mm
Interfaces	USB, Serial, Ethernet
