Chapter 2 Setup
43
2
For Parallel Interface

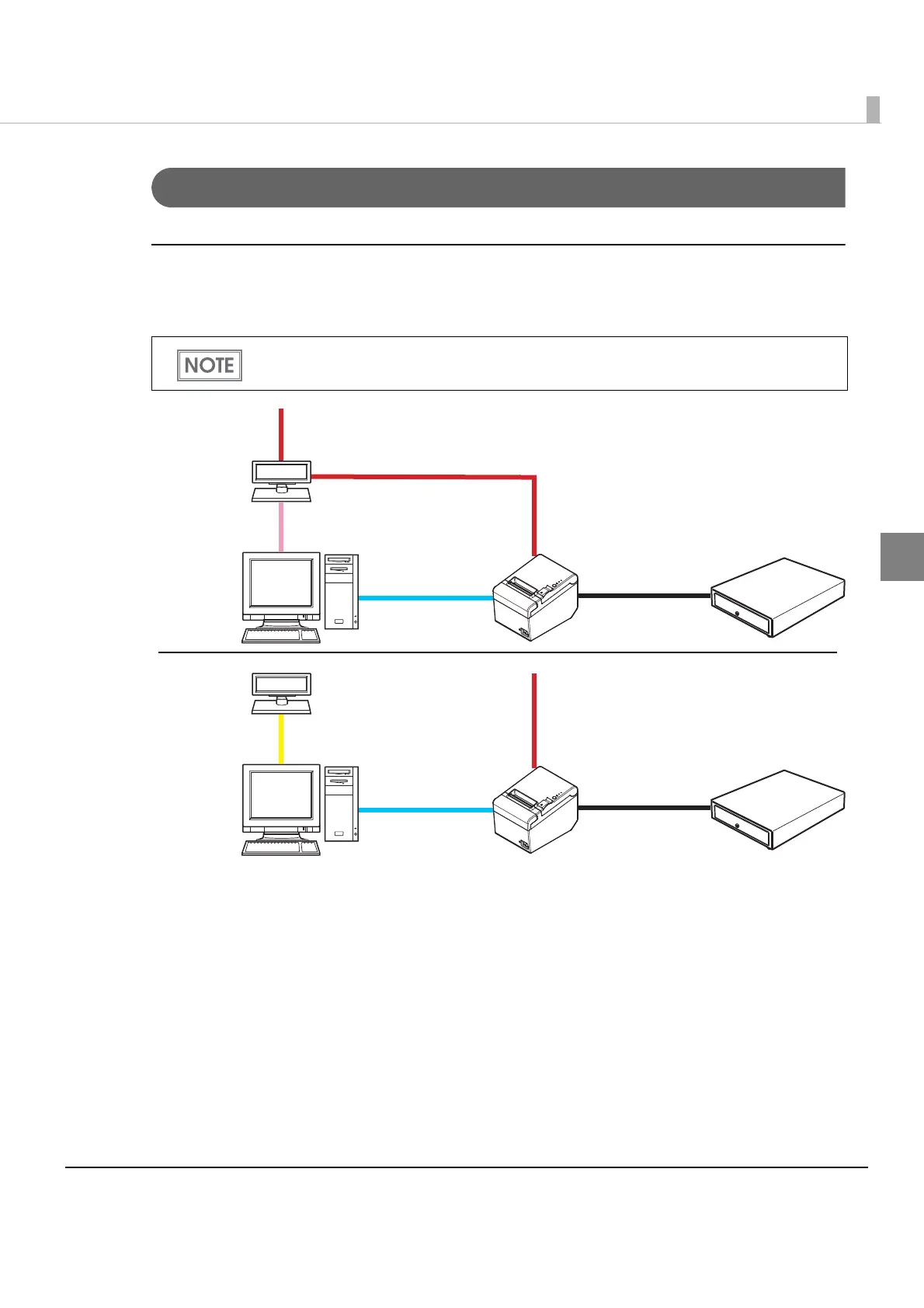

Parallel interface connection diagram
This printer is connected to the host computer via the parallel port. When a customer display
(DM-D) is to be connected, connect it to the host computer via the serial port or USB port.
The modular cable is connected to the cash drawer.
Parallel cable
Serial cable
Cash drawer
TM-T82II
Modular cable
Power supply unit
+ AC cable
DM-D
(Serial I/F model)
DM-D
(USB I/F model)
Parallel cable
USB cable
Modular cable
Cash drawer
Power supply unit
+ AC cable
TM-T82II
Extension cable
for power supply
