Printable Area
80 mm paper width printing
The printable area of paper with a width of 79.5 ± 0.5 mm {3.13 ± 0.02"} is 72.2 ± 0.2 mm {2.84 ±
0.008"} (512 dots), and the space on the right and left sides is approximately 3.7 mm {0.15"}.

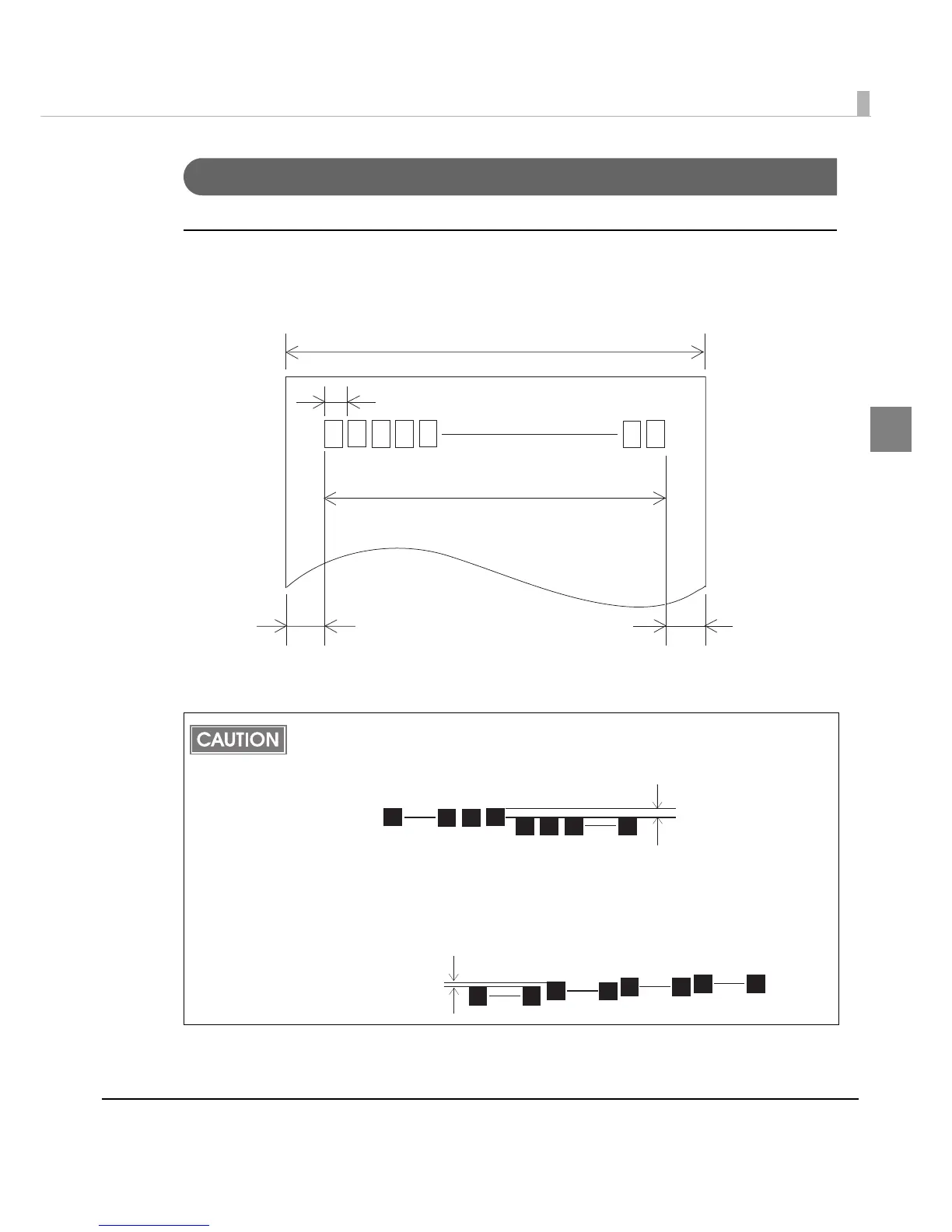

• In 2-divided energizing, the print position within the printable area of the thermal
elements for dots 1 to 256 and 257 to 512 is shifted approximately 0.07 mm {0.0028"} in
the paper feed direction as shown in the figure below.
• In 4-divided energizing, the print position within the printable area of the thermal
elements for dots 1 to 128, 129 to 256, 257 to 384, and 385 to 512 is shifted
approximately 0.04 mm {0.0016"} in the paper feed direction as shown in the figure
below.
0.141 0.05 mm {0.0056 0.002”}
79.5 0.5 mm {3.13 0.02”}
+
-
+
-
72.2 0.2 mm {2.84 0.008}
3.7 mm {0.15} 3.7 mm {0.15}
+
-
+
-
+
-
+
-
All the numeric values are typical.
2561
257
512
About 0.07 mm
129
1
512385257
A
bout 0.04 mm
