Epson TM T88V Technical Reference Guide

Chapter 2 Setup
53
2

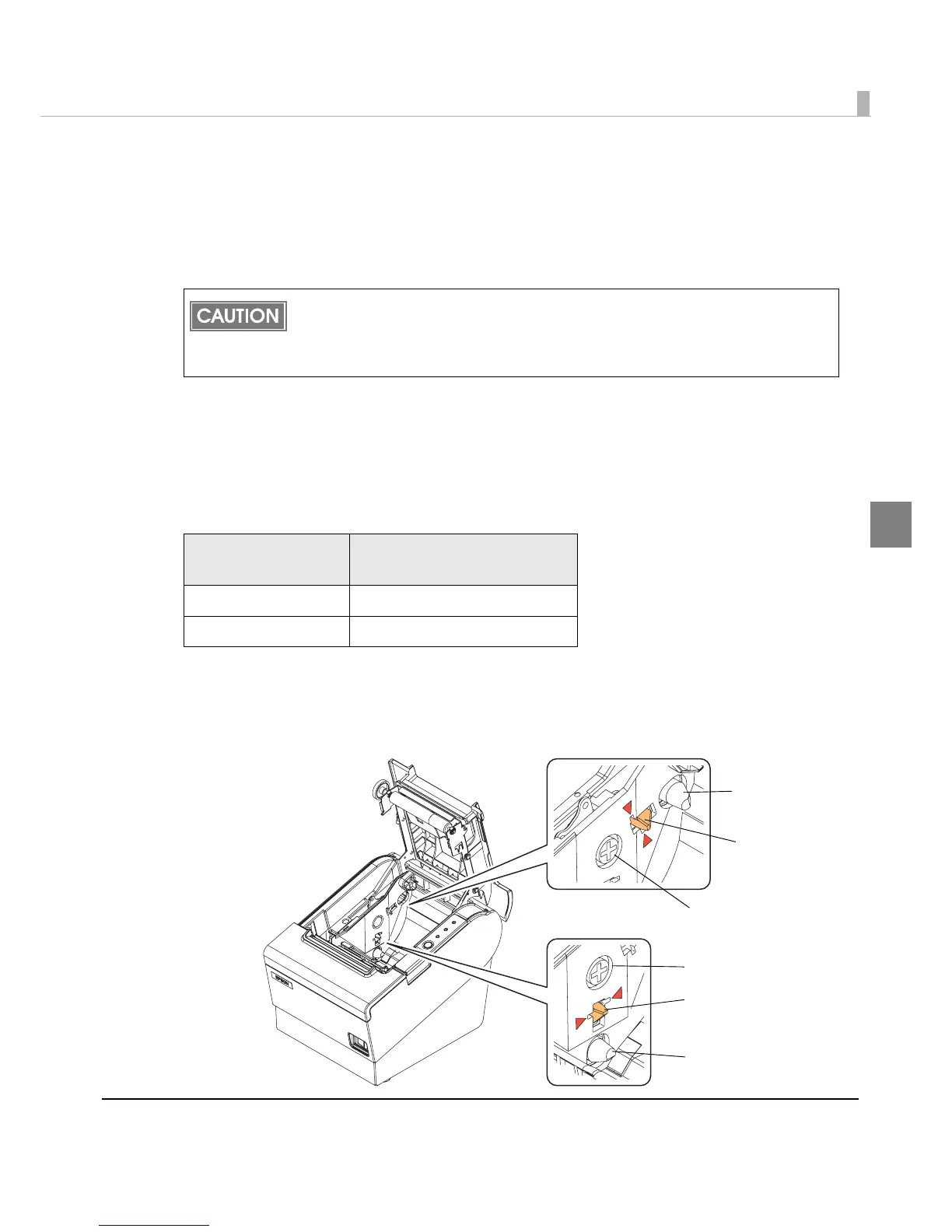

Adjusting the Paper Roll Near-End Sensor
Below are two situations where a roll paper NE sensor adjustment is required.
•To adjust the detection position to suit the diameter of the roll paper core used.
•To adjust the detection position of remaining amount of paper.
Follow the steps below to adjust the roll paper near-end detector.
1
Open the roll paper cover, and remove the roll paper.
2
Loosen the adjustment screw fastening the sensor, and align the upper
edge of the positioning plate with the adjustment position.
3
Tighten the adjustment screw.
4
After adjustment, make sure that the detection lever operates smoothly.
• Since roll paper cores vary slightly in shape, depending on paper roll design and
manufacturing tolerances, it is impossible to detect the remaining paper exactly.
• Use roll paper with a core inner diameter of 12 mm {0.47"} and outer diameter of 18 mm
{0.71"} so that the NE sensor can detect the remaining paper as accurately as possible.
Adjustment position
Remaining amount of paper
(outer diameter: mm)
Upper Approx. 27 {1.06"}
Lower (Initial setting) Approx. 23 {0.97"}
Detection lever
Positioning
plate
Adjustment screw
Adjustment screw
Positioning
plate
Detection lever
For wall-hanging
For horizontal installation

Epson TM T88V Specifications

General

Dimensions (WxDxH)	145 x 195 x 148 mm
USB port	Yes
Standard interfaces	RS-232, USB 2.0
Serial interface type	RS-232
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Type	POS printer
Print speed	11.8 ips
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Safety	UL1950/CSA C22.2 No. 950
Certification	FCC/ICES-003
Built-in barcodes	2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF-14, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Country of origin	China
Autocutter durability	2 million cuts
Mean time between failures (MTBF)	360000 h
Product color	Black
Maximum roll diameter	83 mm
Supported paper width	80, 58 mm
Printing media thickness	55 - 80 µm
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	No
Input current	1.8 A
Power supply type	DC
Pallet width	800 mm
Pallet height	2550 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	128 pc(s)
Quantity per pallet (UK)	192 pc(s)
Master (outer) case width	400 mm
Quantity per pallet layer	16 pc(s)
Master (outer) case height	255 mm
Master (outer) case length	490 mm
Quantity per pallet layer (UK)	24 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2660 g
Quantity per pack	1 pc(s)
