Epson TM T88V Technical Reference Guide

Chapter 2 Setup
63
2
Connecting the Cash Drawer
When using a cash drawer, connect the cash drawer.
Use the cash drawer handled by EPSON or your dealer.
If the optional external buzzer is used, you cannot use a cash drawer.
Connecting the Drawer Kick-out Cable
Connect the connector of the drawer kick-out cable to the printer.
WARNING
• Specifications of drawers differ depending on makers or models. When you use a
drawer other than specified, make sure its specification meets the following con-
ditions.
Otherwise, devices may be damaged.
∗ The load, such as a drawer kick-out solenoid, must be connected between pins 4 and
2 or pins 4 and 5 of the drawer kick-out connector.
∗ When the drawer open/close signal is used, a switch must be provided between
drawer kick-out connector pins 3 and 6.
∗ The resistance of the load, such as a drawer kick-out solenoid, must be 24
Ω or more
or the input current must be 1A or less.
∗ Be sure to use the 24V power output on drawer-kick out connector pin 4 for driving the
equipment.
• Use a shield cable for the drawer connector cable.
• Two driver transistors cannot be energized simultaneously.
• Leave intervals longer than 4 times the drawer driving pulse when sending it
continuously.
• Be sure to use the printer power supply (connector pin 4) for the drawer power
source.
• Do not insert a telephone line into the drawer kick-out connector.
Doing so may damage the telephone line or printer.

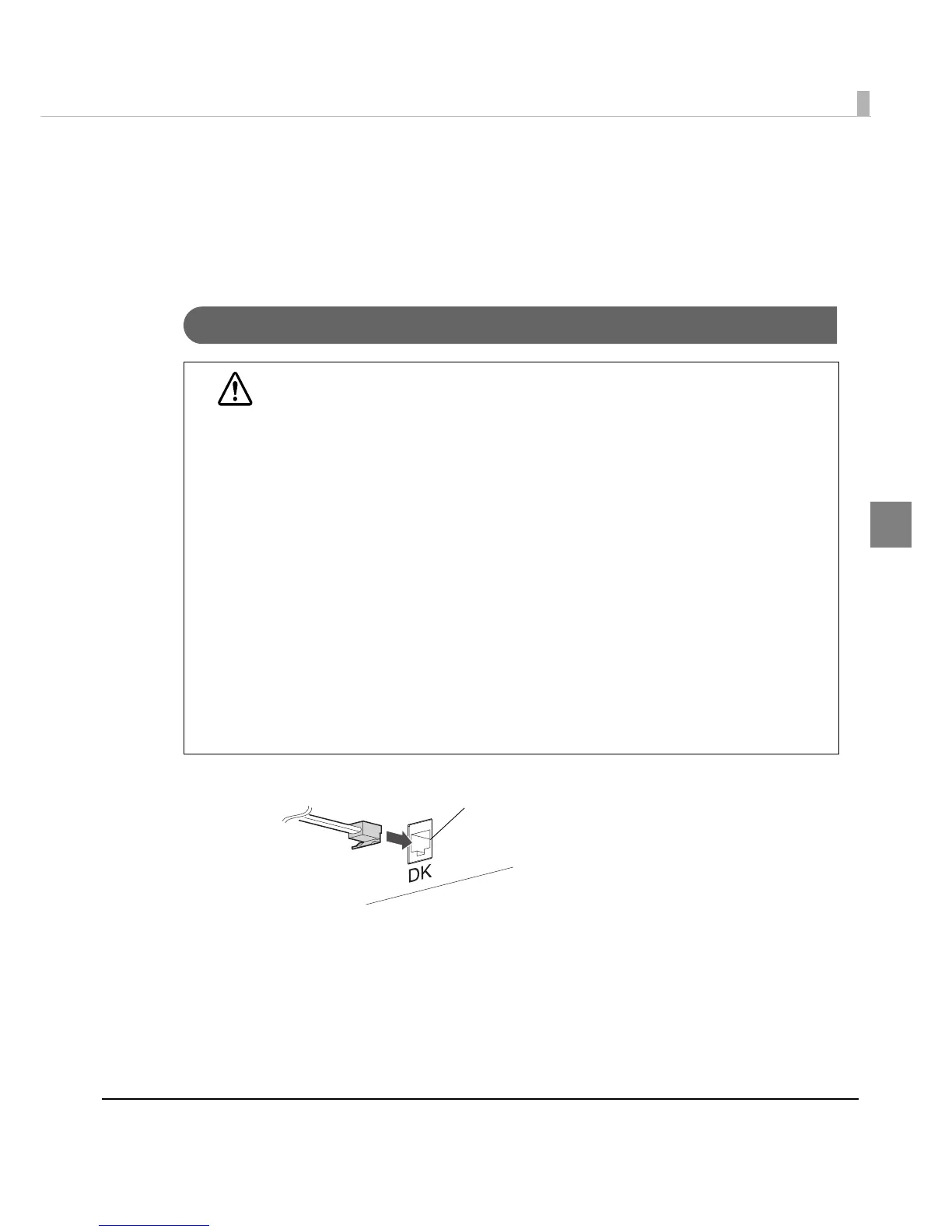

Drawer kick-out connector

Epson TM T88V Specifications

General

Dimensions (WxDxH)	145 x 195 x 148 mm
USB port	Yes
Standard interfaces	RS-232, USB 2.0
Serial interface type	RS-232
Serial ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Type	POS printer
Print speed	11.8 ips
Print technology	Thermal
Maximum resolution	180 x 180 DPI
Safety	UL1950/CSA C22.2 No. 950
Certification	FCC/ICES-003
Built-in barcodes	2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN13, EAN8, ITF-14, MaxiCode, PDF417, QR Code, UPC-A, UPC-E
Country of origin	China
Autocutter durability	2 million cuts
Mean time between failures (MTBF)	360000 h
Product color	Black
Maximum roll diameter	83 mm
Supported paper width	80, 58 mm
Printing media thickness	55 - 80 µm
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Ethernet LAN	No
Input current	1.8 A
Power supply type	DC
Pallet width	800 mm
Pallet height	2550 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	128 pc(s)
Quantity per pallet (UK)	192 pc(s)
Master (outer) case width	400 mm
Quantity per pallet layer	16 pc(s)
Master (outer) case height	255 mm
Master (outer) case length	490 mm
Quantity per pallet layer (UK)	24 pc(s)
Quantity per master (outer) case	4 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2660 g
Quantity per pack	1 pc(s)
