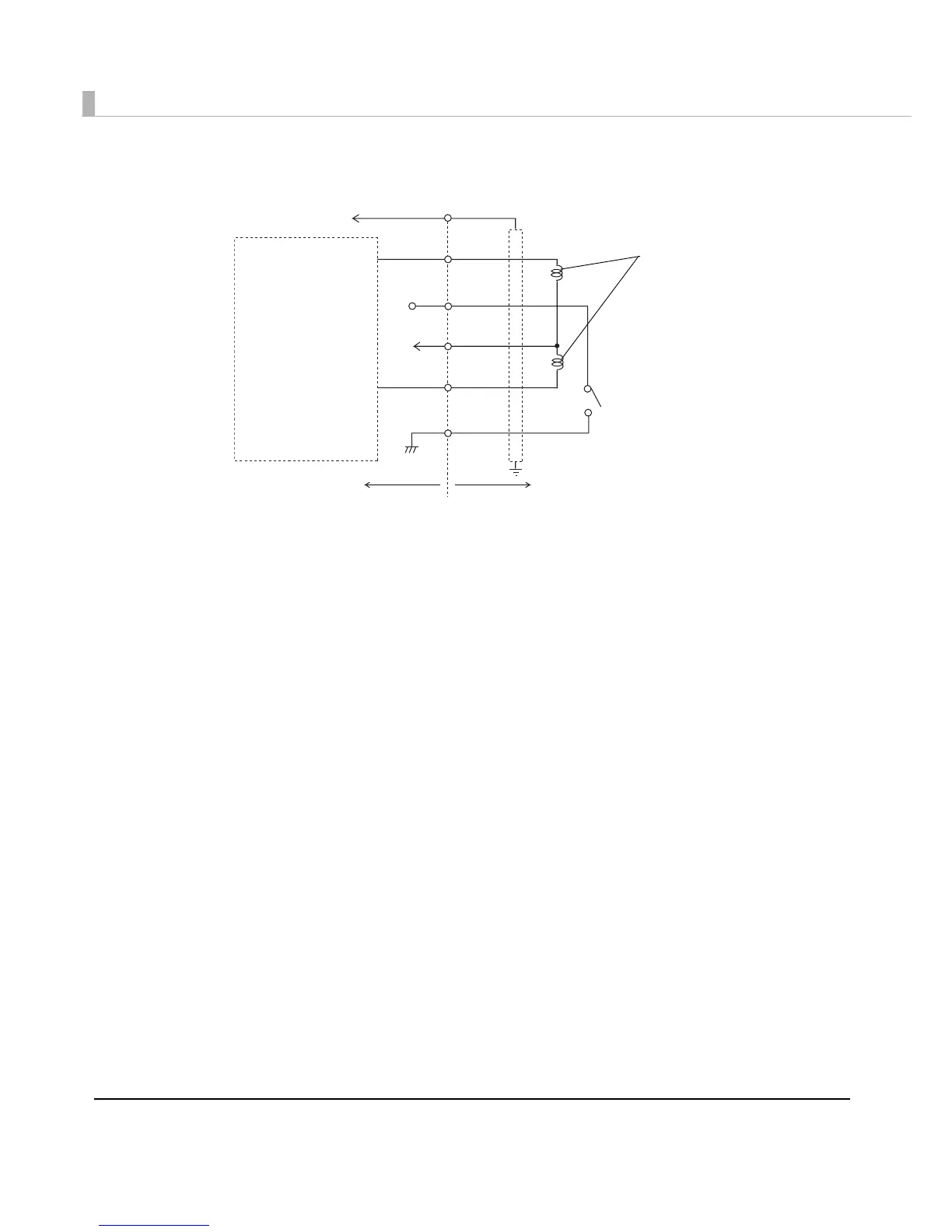

Drawer Connection Circuitry
F.G
+24V
With shielded
Drawer kick-out connector
Printer side
User side [Drawer kick-out side]
Drawer open/close switch
Drawer kick-out solenoid
Control device
1
2
3
4
5
6
