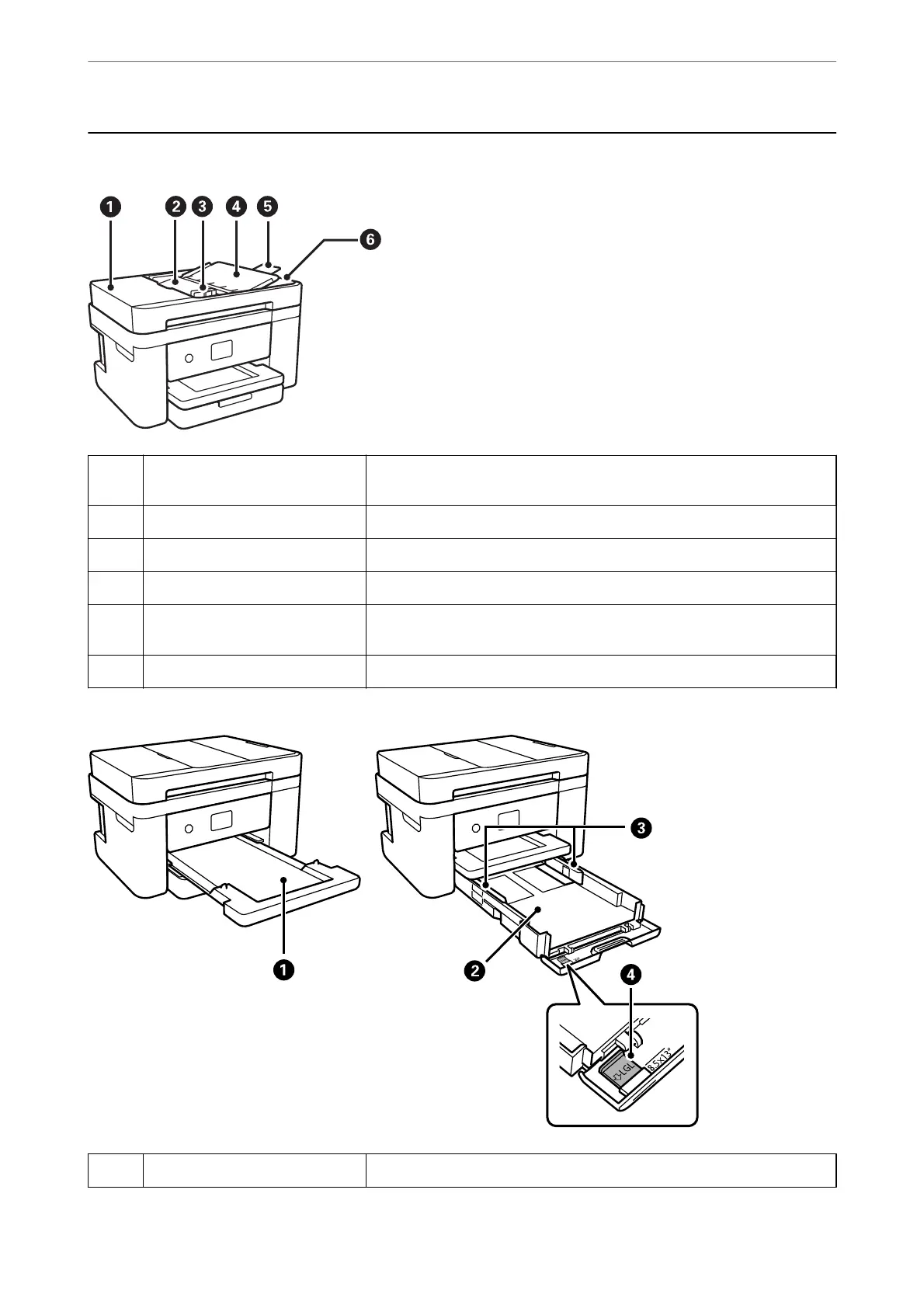

Front
A
ADF (Automatic Document
Feeder) cover
Open when removing jammed originals in the ADF.
B
ADF input tray Feeds originals automatically.
C
ADF edge guide Feeds originals straight into the printer. Slide to the edge of the originals.
D
ADF document support Supports originals.
E
ADF output tray extension Holds legal size originals ejected from the ADF. Make sure you extend this
when scanning legal size originals using the ADF.
F
ADF output tray Holds originals ejected from the ADF.
A
Output tray Holds the ejected paper.
Part Names and Functions
>
Front
17
To Next Page
