CUTMASTER A120
INTRODUCTION 0-5430
2-2

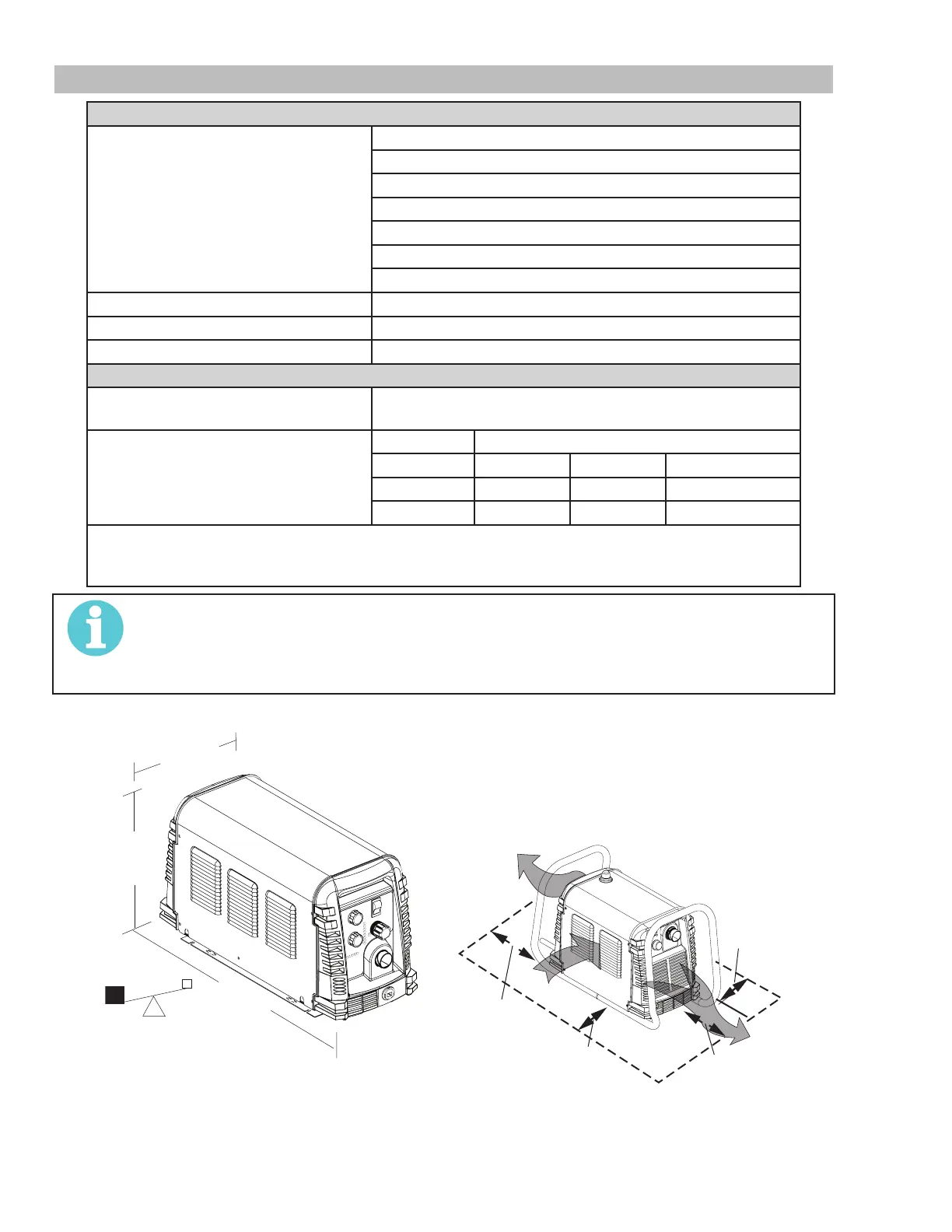

2.04 PowerSupplySpecications
CutmasterA120PowerSupplySpecications
Input Power 208 / 230 VAC (187 - 253 VAC), Single Phase, 60 Hz
230 VAC (187 - 253 VAC), 3 Phase, 50/60 Hz
380 VAC (360 - 440 VAC), 3 Phase, 50/60 Hz
400 VAC (360 - 440 VAC), 3 Phase, 50 Hz
460 VAC (414 - 506 VAC), Single Phase, 60 Hz
460 VAC (414 - 506 VAC), 3 Phase, 60 Hz
600 VAC (540 - 630), 3 Phase, 60 Hz
Input Power Cable Power Supply includes input cable.
Output Current 30 - 120 Amps, Continuously Adjustable
Power Supply Gas Filtering Ability Particulates to 5 Microns
Cutmaster A120 Power Supply Duty Cycle *
Ambient Temperature Duty Cycle Ratings @ 40° C (104° F)
Operating Range 0° - 50° C
All Units IEC
Duty Cycle **60% 80% 100%
Current 120 120 100
DC Voltage 128 128 120
* NOTE: The duty cycle will be reduced if the primary input power (AC) is low or the output voltage
(DC) is higher than shown in this chart.
** 60% at 208/230V 1-Phase Input ONLY
NOTE!
IEC Rating is determined as specied by the International Electro-Technical Commission. These
specications include calculating an output voltage based upon power supply rated current. To fa-
cilitate comparison between power supplies, all manufacturers use this output voltage to determine
duty cycle.
Power Supply Dimensions & Weight Ventilation Clearance Requirements
26.3"
0.668 m
63 lb / 28.6 kg
10"
254 mm
13.78"
350 mm
Art # A-08459
6"
150 mm
24"
610 mm
6"
150 mm
6"
150 mm
Art # A-07925_AB
