ESAB A120 - Mechanized Torch Connection Diagram

CUTMASTER A120
0-5430 APPENDIX
A-7
To rch: Unshielded Mechanized SL100 Machine To rch
Leads: Leads with ATC Connector and
Remote Pendant Connector
Power Supply: with ATC Female Receptacle
Pilot
Negative / Plasma
Power
Supply
To Remote Control
Remote
Pendant
Connector
PIP
Switch
Not
Used
Male
AT C Leads
Connector
AT C Female
Receptacle
Pilot Lead
Negative / Plasma Lead
Torch
Leads
Torch
Head
Art # A-03798
1
2
5
6
4
3
8
7
To Power Supply
Circuitry
Green
To Power Supply
Circuitry
1
2
5
6
4
3
8
7
Black
White
Green
Black
Orange
White

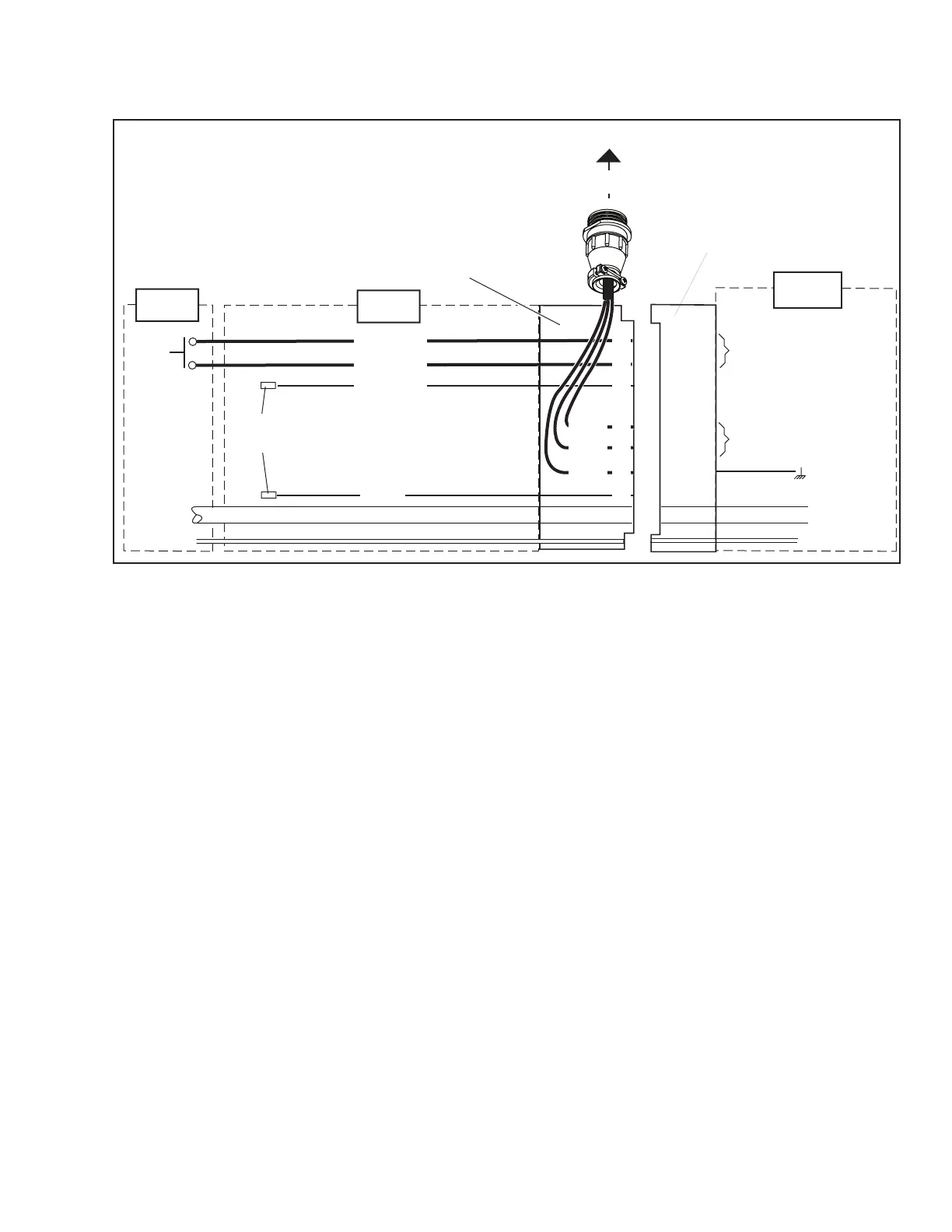

B. Mechanized Torch Connection Diagram
