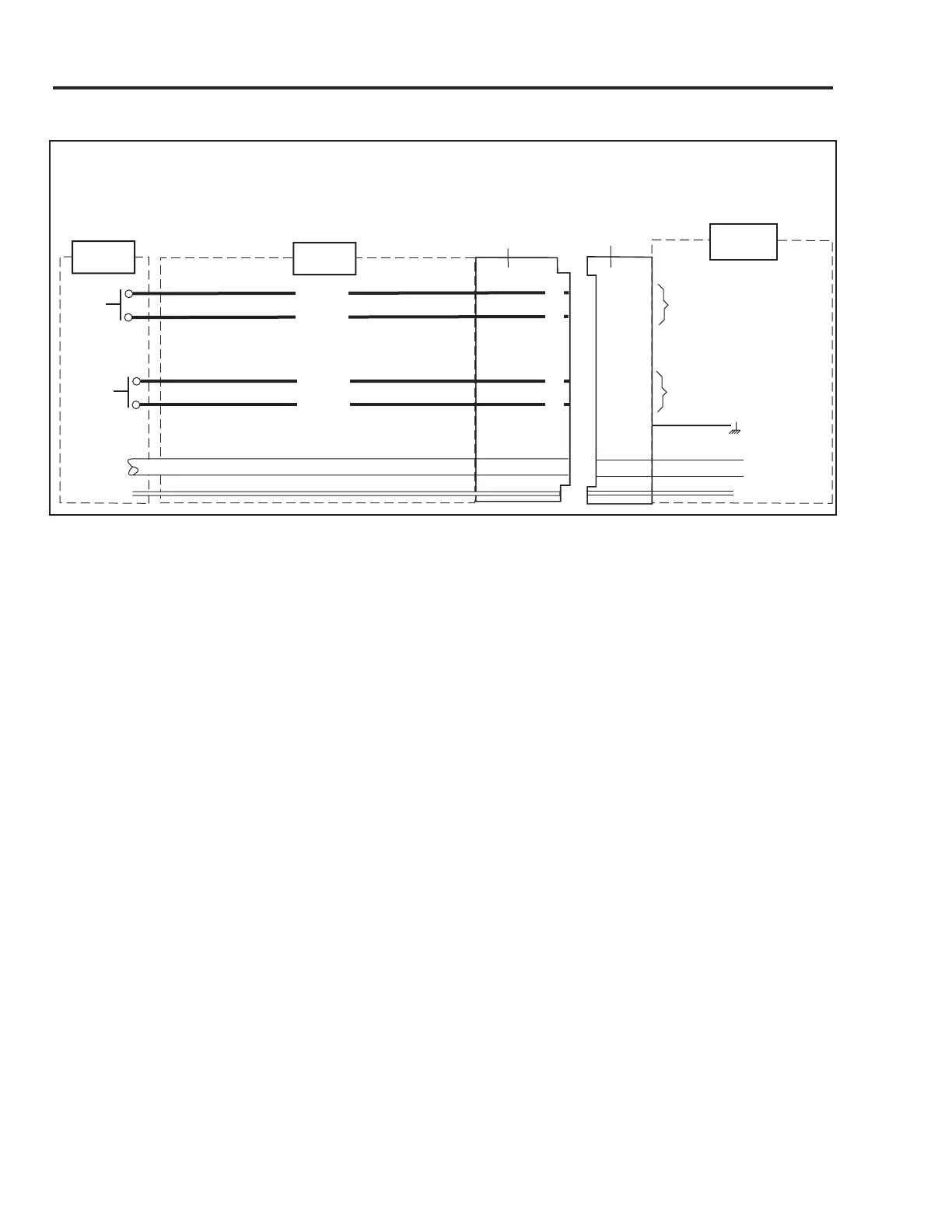

APPENDIX 4: TORCH CONNECTION DIAGRAMS
A. Hand Torch Connection Diagram
To rch: SL60 / SL100 Hand Torch
Leads: To rch Leads with AT C Connector
Power Supply: with ATC Receptacle
Pilot
Negative / Plasma
Power
Supply
PIP
Switch
Male
ATC Leads
Connector
AT C Female
Receptacle
Pilot
Negative / Plasma
Black
Orange
Torch
Leads
Torch
Head
To Power Supply
Circuitry
Art # A-03797
1
2
5
6
4
3
8
7
1
2
5
6
4
3
8
7
Torch
Switch
Green
White
To Power Supply
Circuitry
