ESAB A120 - Installing Optional Single - Stage Air Filter; Using High Pressure Air Cylinders; Stage Air Filter Kit

CUTMASTER A120
INSTALLATION 0-5430
3-4

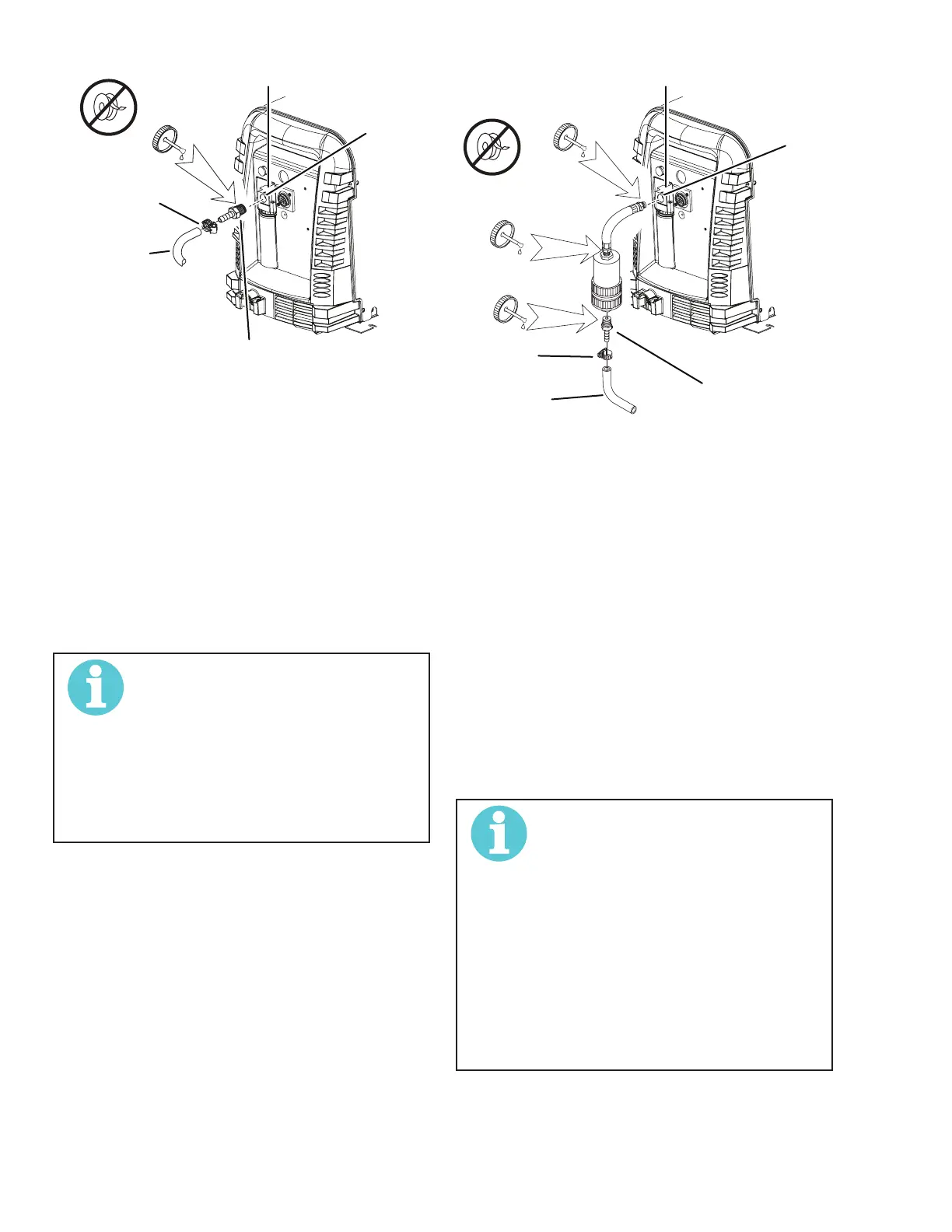

Art # A-08320
Inlet Po
rt
Filter Assembly
Hose Clamp
Gas Supply
Hose
1/4 NPT or ISO-R
to 1/4” (6mm) Fitting
Air Connection to Inlet Port
Installing Optional Single - Stage Air Filter
An optional lter kit is recommended for improved lter-
ing with compressed air, to keep moisture and debris
out of the torch.
1. Attach the Single - Stage Filter Hose to the Inlet
Port.
2. Attach the Filter Assembly to the lter hose.
3. Connect the air line to the Filter. The illustration
shows typical ttings as an example.
NOTE!
For a secure seal, apply thread seal-
ant to the tting threads, according
to the manufacturer's instructions.
Do Not use Teon tape as a thread
sealer, as small particles of the tape
may break off and block the small air
passages in the torch. Connect as
follows:
Art # A-08319
Hose Clam
p
1/4 NPT to 1/4"
(6mm) Fitting
Inlet Po
rt
Gas Supply
Hose
Filter Assembly
Optional Single - Stage Filter Installation
Using High Pressure Air Cylinders
When using high pressure air cylinders as the air supply:
1. Refer to the manufacturer’s specications for
installation and maintenance procedures for high
pressure regulators.
2. Examine the cylinder valves to be sure they are
clean and free of oil, grease or any foreign mate-
rial. Briey open each cylinder valve to blow out
any dust which may be present.
3. The cylinder must be equipped with an adjust-
able high - pressure regulator capable of outlet
pressures up to 100 psi (6.9 bar) maximum and
ows of at least 300 scfh (141.5 lpm).
4. Connect supply hose to the cylinder.
NOTE!
Pressure should be set at 100 psi
(6.9 bar) at the high pressure cylin-
der regulator.
Supply hose must be at least 1/4
inch (6 mm) I.D.
For a secure seal, apply thread
sealant to the tting threads, accord-
ing to manufacturer's instructions.
Do Not use Teon tape as a thread
sealer, as small particles of the tape
may break off and block the small air
passages in the torch.
Installing Optional Two - Stage Air Filter Kit
This optional two - stage air line lter is also for use on
compressed air shop systems. Filter removes moisture
and contaminants to at least 5 microns.
