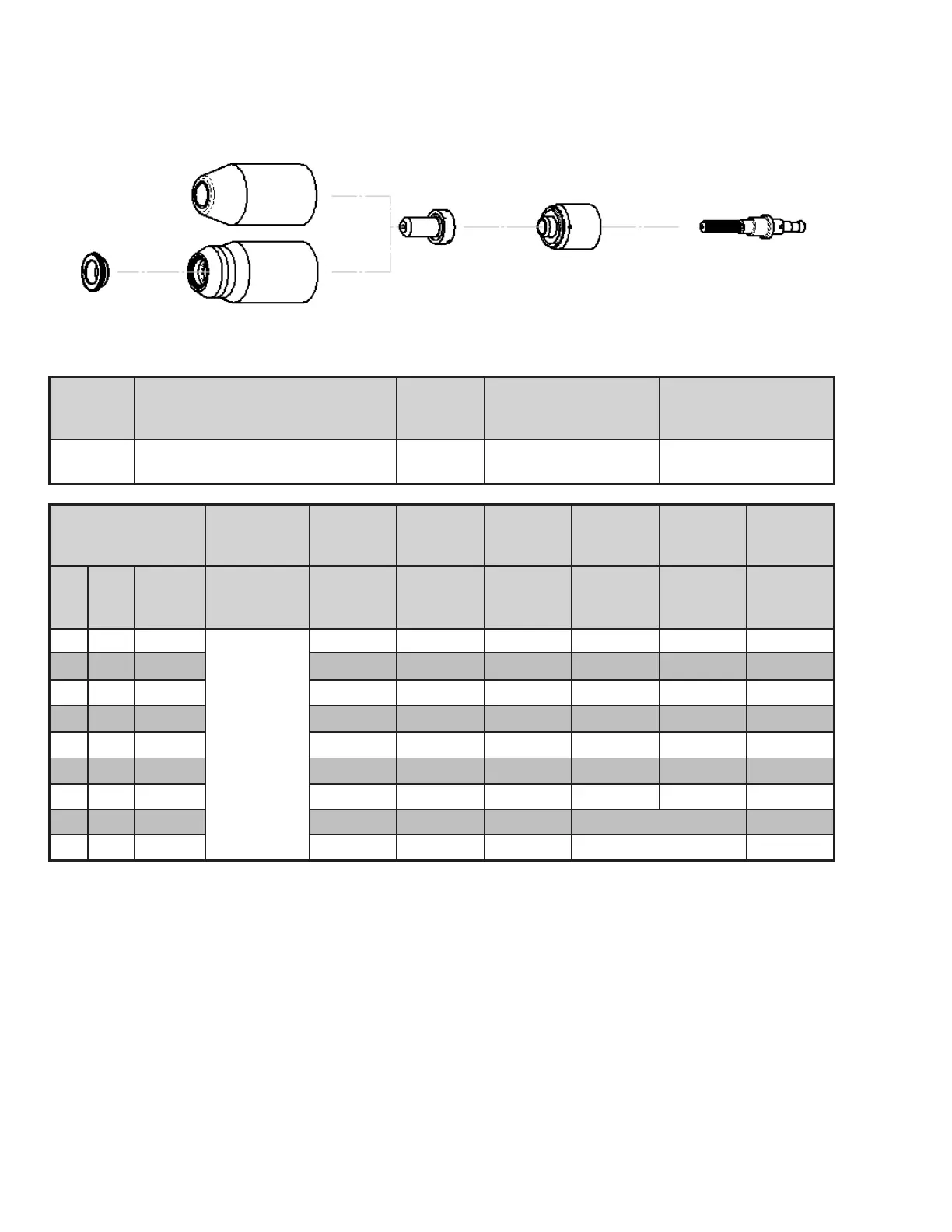

ESAB A120 - Page 53

CUTMASTER A120
OPERATION 0-5430
4T-22
Stainless Steel
80A
Air Plasma / Air Shield
Deector
Standard Shield Cup
Maximum Life Shield Cup
Tip
Starter Cartridge
Heavy Duty Starter
Cartridge
Electrode
9-8243
9-8218
9-8237
9-8211
9-8213
9-8277
9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA) (in) inch
PSI
(torch lead
length)
Volts (in) (ipm) (in) (sec) (in)
16 0.063
85 (25')
90 (50')
110 0.19 340 0.25 0.00
0.06
11 0.125
115 .0.19 300 0.25 0.10
0.06
10 0.141
115 0.19 280 0.25 0.10
0.06
3/16 0.188
115 0.19 140 0.25 0.20
0.07
1/4 0.250
118 0.19 100 0.25 0.30
0.08
3/8 0.375
119 0.19 45 0.25 0.40
0.08
1/2 0.500
124 0.19 26 0.25 0.80 0.10
5/8 0.625
133 0.19 16 Edge Start 0.10
3/4
0.750
136 0.19 10 Edge Start 0.11
