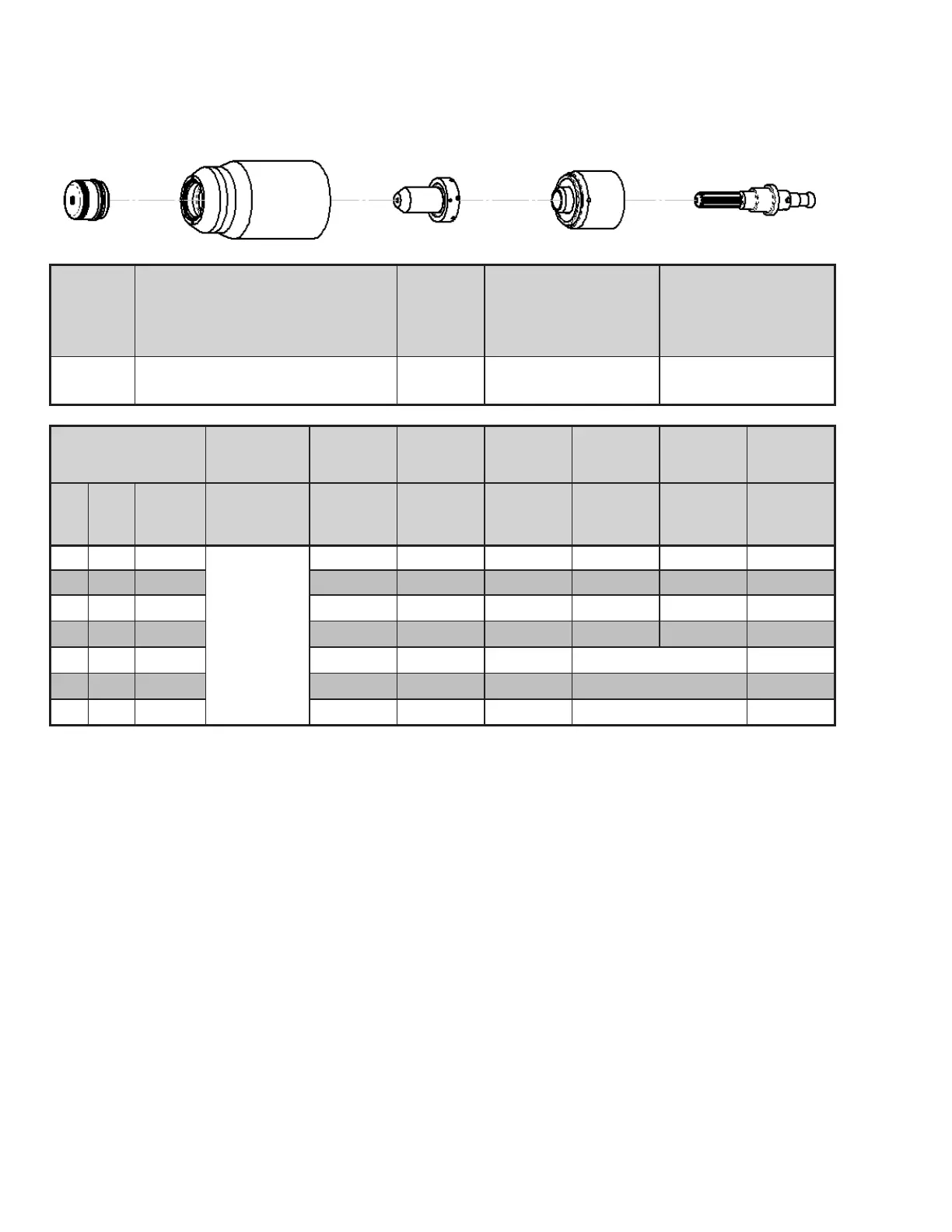

ESAB A120 - Page 97

CUTMASTER A120
OPERATION 0-5430
4T-66
Stainless Steel
120A
Air Plasma / Air Shield
Shield Cap Maximum Life Shield Cup Tip
Starter Cartridge
Heavy Duty Starter
Cartridge
Electrode
9-8256 9-8237 9-8233
9-8213
9-8277
9-8232
Material
Thickness
Gas Pressure
(Air)
Arc Voltage
Torch
Working
Height
Travel Speed
Initial
Piercing
Height
Pierce Delay
Kerf Width
@ Rec.
Speed
(GA) (in) inch
PSI
(torch lead
length)
Volts (in) (ipm) (in) (sec) (in)
1/4 0.250
80 (25')
80 (50')
140 0.13 180 0.20 0.30 0.11
3/8 0.375 140 0.13 100 0.20 0.40 0.12
1/2 0.500 142 0.15 65 0.25 0.80 0.12
5/8 0.625 152 0.15 40 0.25 1.00 0.12
3/4 0.750 150 0.15 26 Edge Start 0.13
1 1.000 155 0.15 16 Edge Start 0.13
1-1/4 1.250 165 0.15 8 Edge Start 0.13
