3.1 Connection of Torch To Plasma System
Refer to system manual.
3.1.1 Connection to the Arc Starter Box
The PT-36 has two water cooled power cables which must be connected to the negative output from the power
supply. The right handed 7/16-20 tting is on the cable supplying coolant to the torch. The left handed 7/16-20
tting is on the cable returning coolant from the torch.
The ring terminal is used to make the nozzle connection for pilot arc starting. The fast-on connection grounds
the braided shield on the pilot arc cable.
Electric Shock Can Kill!
components.
-
out turning primary power o.
recommended lens shades for plasma cutting:
Arc Current Lens Shade
Up to 100 Amps Shade No. 8
100-200 Amps Shade No. 10 200-400 Amps Shade No. 12
Over 400 Amps Shade No. 14
glasses.
SECTION 3 INSTALLATION
WARNING
DANGER

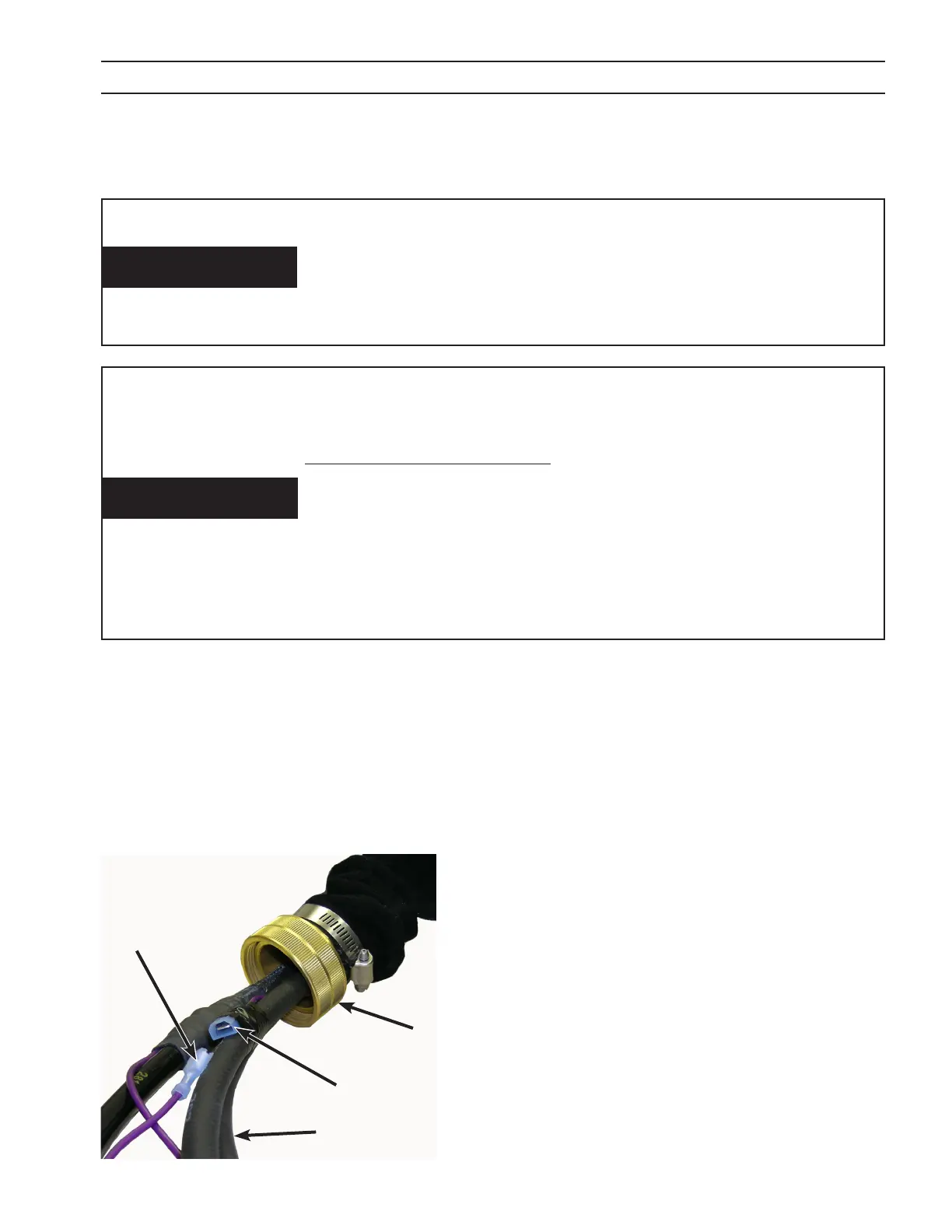

An alternative braided shield connection is provided on the
torch. The female fast-on connection (normally in the arc
starter box) can instead be mated to a male fast-on connec-
tion taped to one of the power cables a few inches before
the end of the torch sleeving. Push the sleeving and large
brass nut towards the head of the torch to reveal this con-
nection. When this connection is made, the shield connec-
tion is grounded through the large brass nut.
Female fast-on connection
power cables (2)
Male fast-on
connection
Brass nut
