PT-36 Repair & Accessories Kit ...................................................................................0558005221
SECTION 2 DESCRIPTION
2.4.1 PT-36 Torch Consumable Kits

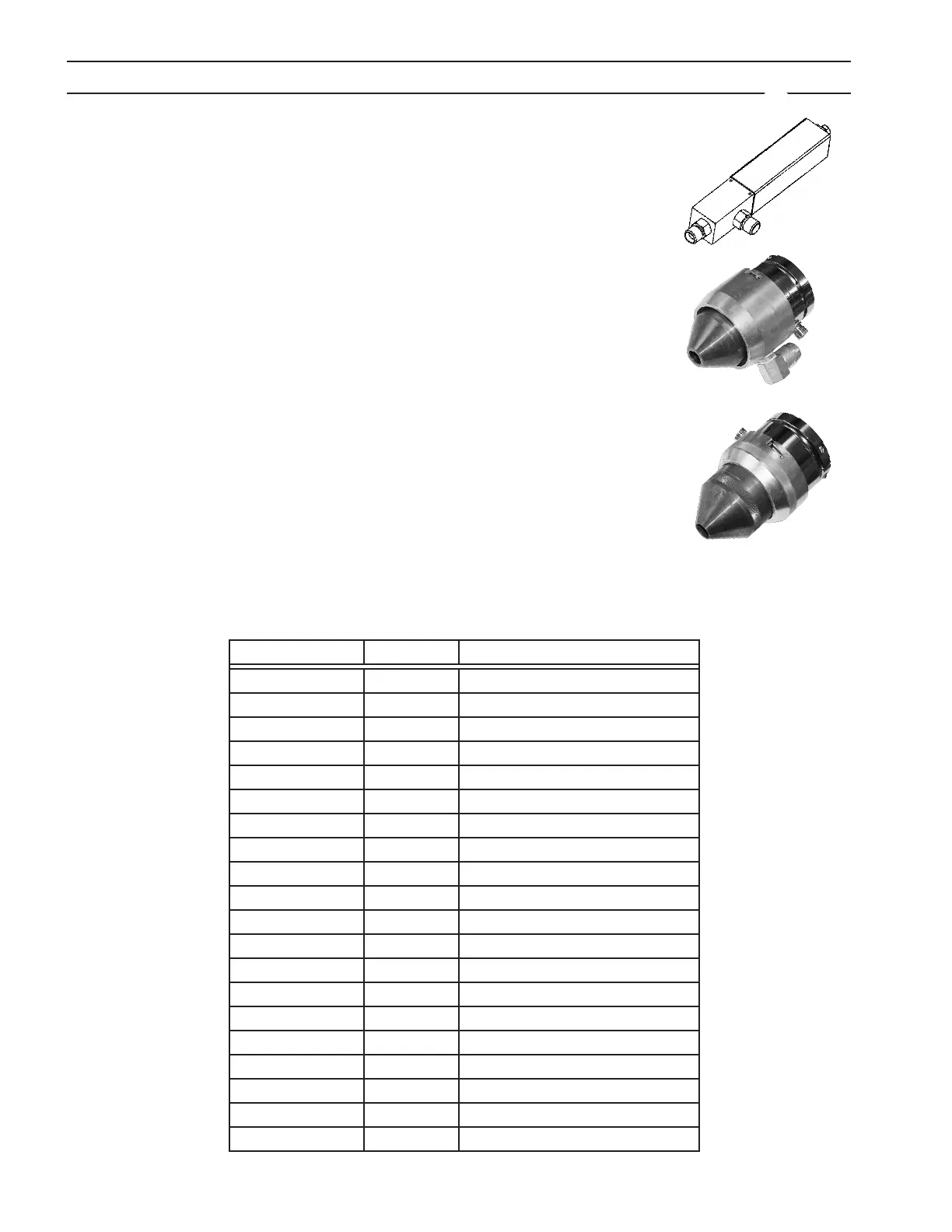

2.4 Optional Accessories:
Test Flow Meter - This valuable troubleshooting tool allows measurement of the ac-
tual plasma gas ow through the torch ...............................................................................21317
Bubble Muer - When used in conjunction with a water pump recirculating water
from the table and by using compressed air, this device creates a bubble of air which
enables a PT-36 Plasmarc Cutting Torch to be used underwater with slight sacrice
of cut quality. This system also permits operation above water as the ow of water
through the muer reduces fume, noise, and arc U.V. Radiation).
(for installation/operation instructions see manual 0558006722) ............................. 37439
Air Curtain - This device when supplied with compressed air is used to improve the
performance of the PT-36 Plasmarc Cutting Torch when cutting underwater. The de-
vice mounts onto the torch and produces a curtain of air. This allows the plasma arc to
operate in a relatively dry zone, even though the torch has been submerged to reduce
noise, fume, and arc radiation. To be used in underwater applications only.
(for installation/operation instructions see manual 0558006404) .............................37440
Part Number Quantity Description
0558003804 1 Torch Body PT-36 w/O-rings
996528 10 O-ring 1.614 ID x .070
0558002533 2 Bae, 4 Hole x .032
0558001625 2 Bae, 8 Hole x .047
0558002534 1 Bae, 4 x .032 Reverse
0558002530 1 Bae, 8 x .047 Reverse
0558005457 1 Bae, 4 Hole x .022
0558003924 3 Electrode Holder PT-36 w/O-ring
86W99 10 O-ring .364 ID x .070
37082 2 Nozzle Retaining Cup, Standard
21796 1 Shield Gas Diuser, Low Current
21944 5 Shield Gas Diuser, Standard
22496 1 Shield Gas Diuser, Reverse
37081 2 Shield Retainer, Standard
0558003858 2 Contact Ring w/screw
37073 6 Screw, Contact Ring
93750010 2 Hex Key Wrench .109"
996568 1 Nut Driver 7/16" (Electrode tool)
0558003918 1 Electrode Holder Tool PT-36
77500101 1 Silicon Grease DC-111 5.3oz
