ESAB PT-36 - Torch Front End Disassembly

154
5.2 Torch Front End Disassembly
1. Remove shield retainer.
NOTE:
If the shield retainer is dicult to remove, try to screw the nozzle retainer tighter to relieve pressure on
the shield.
2. Inspect mating metal surface of shield and retainer for nicks or dirt that might prevent these two parts from
forming a metal to metal seal. Look for pitting or signs of arcing inside the shield. Look for melting of the
shield tip. Replace if damaged.
3. Inspect diuser for debris and clean as necessary. Wear on the top notches does occur, eecting gas volume.
Replace this part every other shield replacement. Heat from cutting many small parts in a concentrated area
or when cutting material greater than 0.75" (19.1mm) may require more frequent replacement.

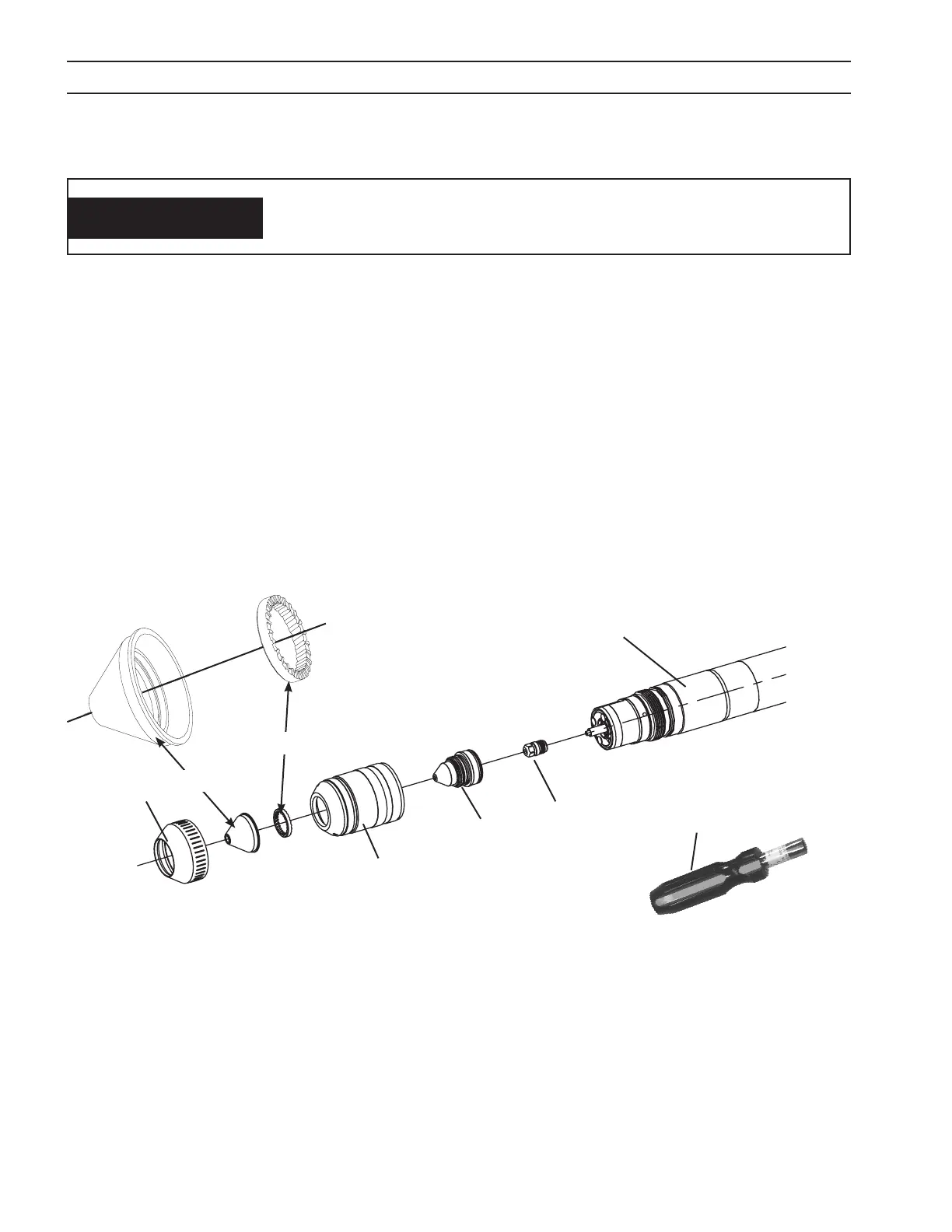

Shield Cup
Retainer
Nozzle Retaining Cup
Nozzle
Electrode
Torch
body
Electrode
Removal
Tool
SECTION 5 MAINTENANCE
DANGER
HOT TORCH WILL BURN SKIN!
ALLOW TORCH TO COOL BEFORE SERVICING.
Shield
Cup
Diuser
