SECTION 5 MAINTENANCE
5.7 Removal and Replacement of the Torch Body
ELECTRIC SHOCK CAN KILL!
BEFORE PERFORMING TORCH MAINTENANCE:
Turn power switch of the power source console to the OFF position •
Disconnect primary input power. •
WARNING
Torch Body
Handle

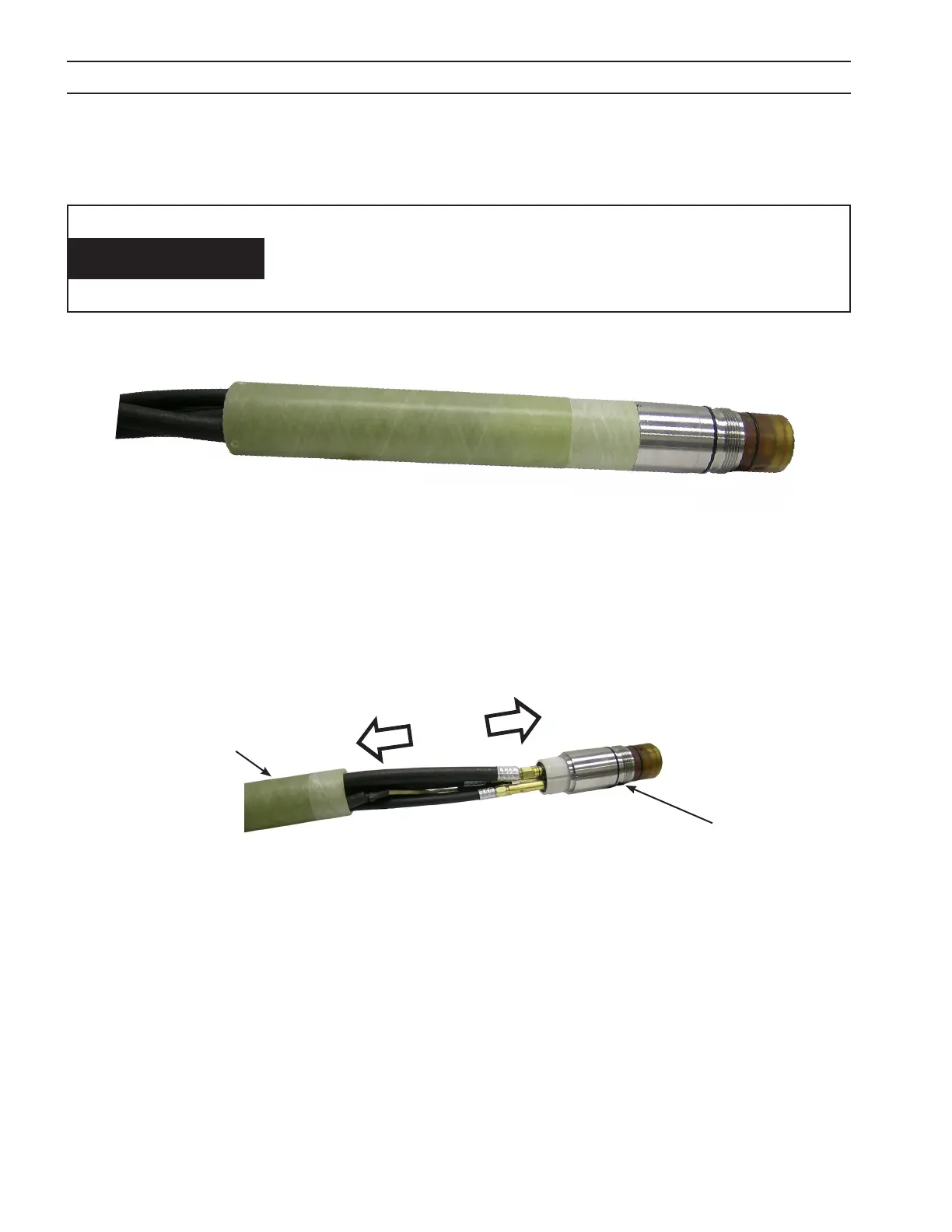

1. Loosen the worm gear hose clamp so that the torch sleeving can be freed and pulled back up the cable
bundle. Approximately 7 inches should be far enough. Loosen the #10-32 setscrews in the end of the sleeve
so that the brass handle extension is free to spin as the sleeve is loosened. Unscrew the torch sleeve and slide
it back until the pilot arc connection is exposed.
