162
NOTE:
When assembling, place the nozzle inside the nozzle retaining cup and thread the retainer/nozzle com-
bination on the torch body. This will help align the nozzle with the assembly. The shield cup and shield
cup retainer should be installed only after installing the nozzle retaining cup and nozzle. Otherwise the
parts will not seat properly and leaks may occur.
SECTION 5 MAINTENANCE

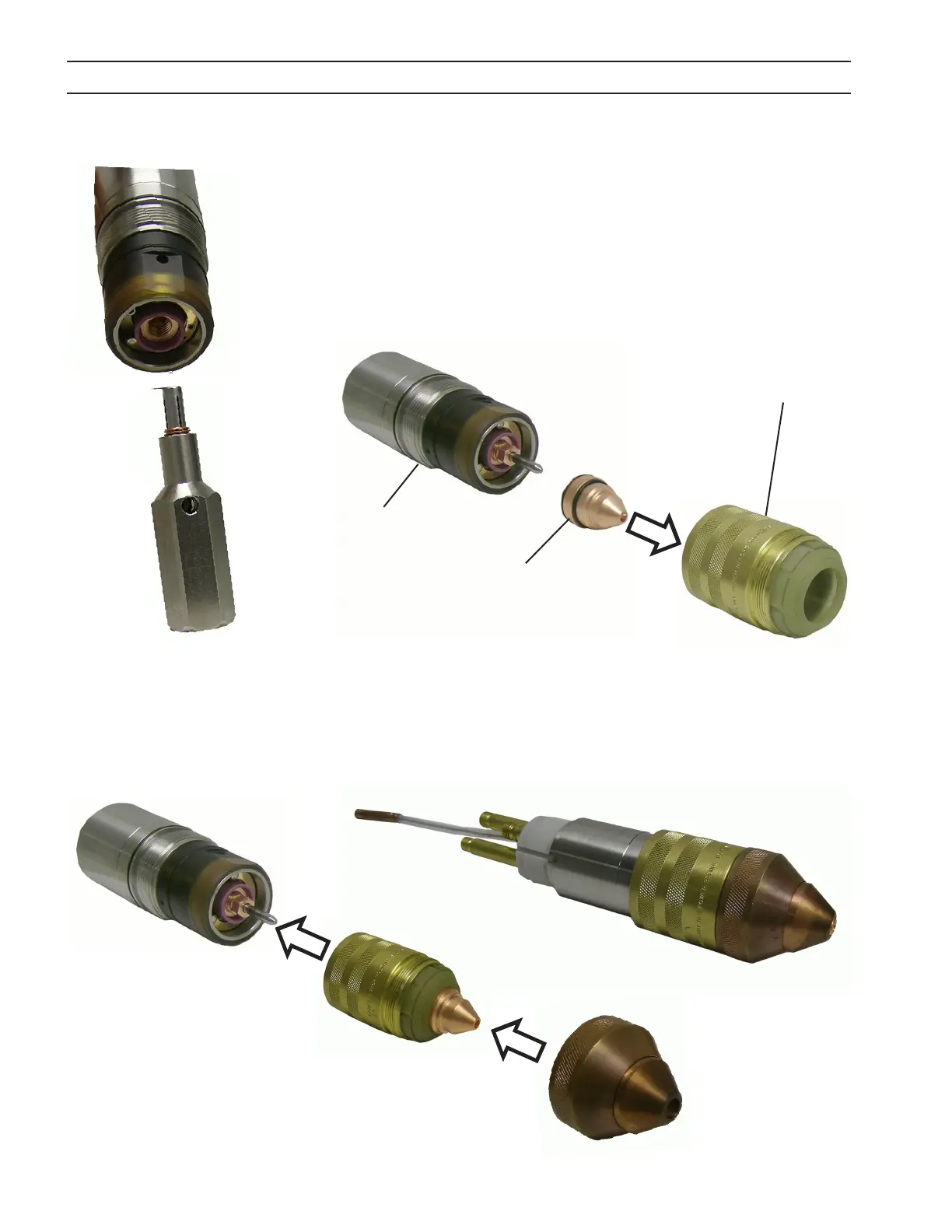

3. Screw electrode assembly in a clockwise direction to torch body. Electrode
will tighten in the correct position when collet closes.
Nozzle
Torch Body
Nozzle Retaining Cup
To Next Page
