12
DETAIL A
Wood
block

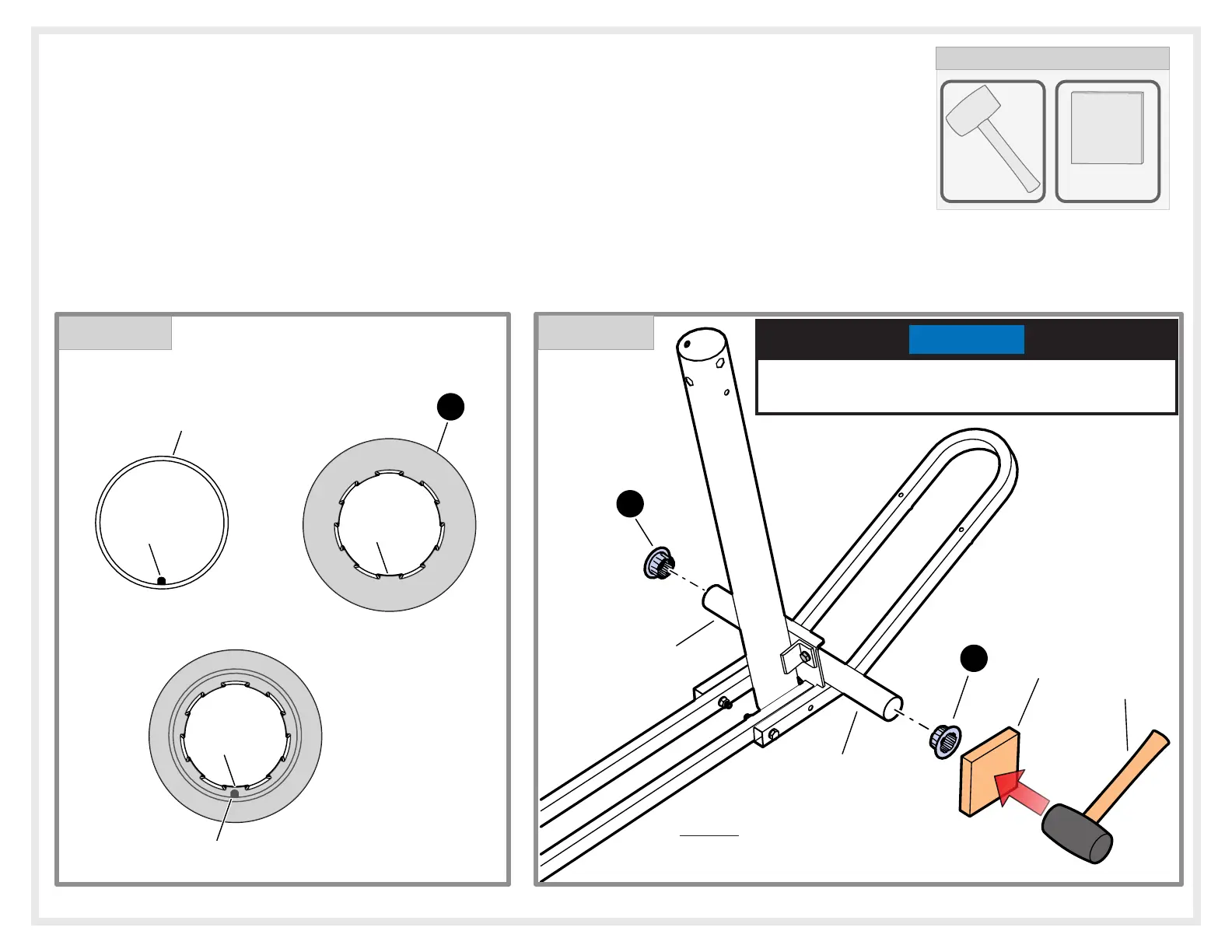

4. Before Inserting Axle Bushings (5) into the lower assembly Steel
Tube, align the bushings (5) so the groove goes over the tube
weld seam without touching it. See Detail A & Detail B.
5
5
DETAIL B
Rubber
Mallet
5
Steel
Tube
Tube
Weld
Seam
5. Use a wood block and Rubber Mallet to gently tap the Axle
Bushing into Steel Tube. Center Wood block onto Axle
bushing and tap on the center of the block, do not tap on
the edges of Axle bushing because it could damage it.
Steel
Tube
Side View of Steel tube
and Axle Bushing (5).
A
B
C
Groove
Axle Bushing
inserted into
Steel Tube
Groove
TOOLS NEEDED
Wood Block
Rubber
Mallet
Steel
Tube
Tube Weld
Seam
NOTE
Use a wood block and Rubber Mallet to
gently tap in the Axle Bushing into Steel Tube.
NOTE: Make sure Axle Bushing
is completely into and flush to
the outside of Steel Tube.
