HARDWARE NEEDED (ACTUAL SIZE)
HEX HEAD BOLT M10-1.5 X 100mm
1B-7078-00
20
(QTY. 1)
WASHER M10
2B-6800-00
23
(QTY. 2)
HEX LOCK NUT M10-1.5
2B-6801-00
24
(QTY. 1)

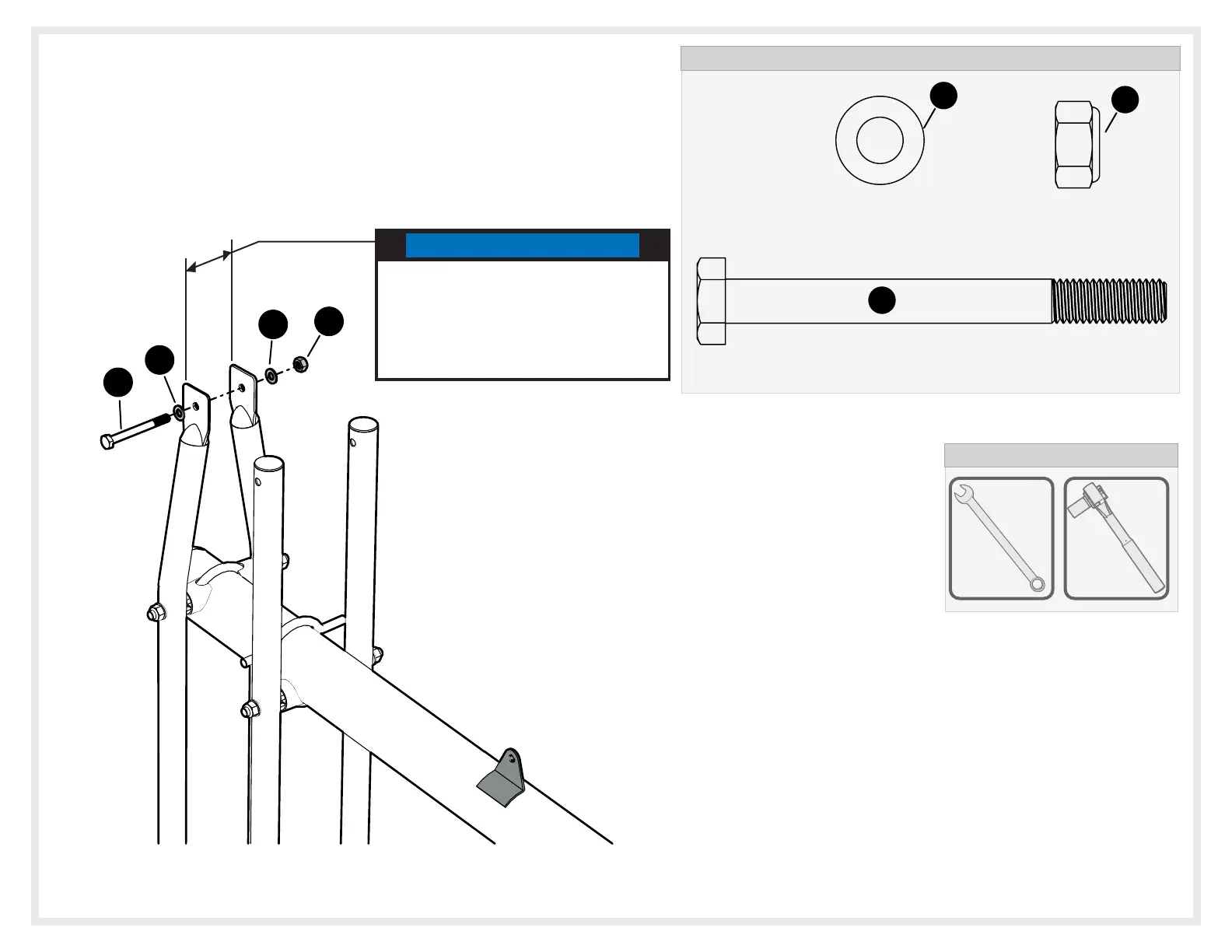

30. Insert bolt (20) through Washer (23), first upper arm,
second upper arm, second Washer (23) and Nut (24)
as shown. Tighten hardware on the upper arms until
the nut makes contact with the ears but do not
overtighten the nut.
16mm
TOOLS NEEDED
16mm
IMPORTANT NOTE:
Do not overtighten this nut.
A minimum of 3” gap must be
remaining in order for the
Spring (55) to be installed in
the next step.
IMPORTANT NOTE
To Next Page
