ESCALADE SilverBack NXT50 - Page 19

19

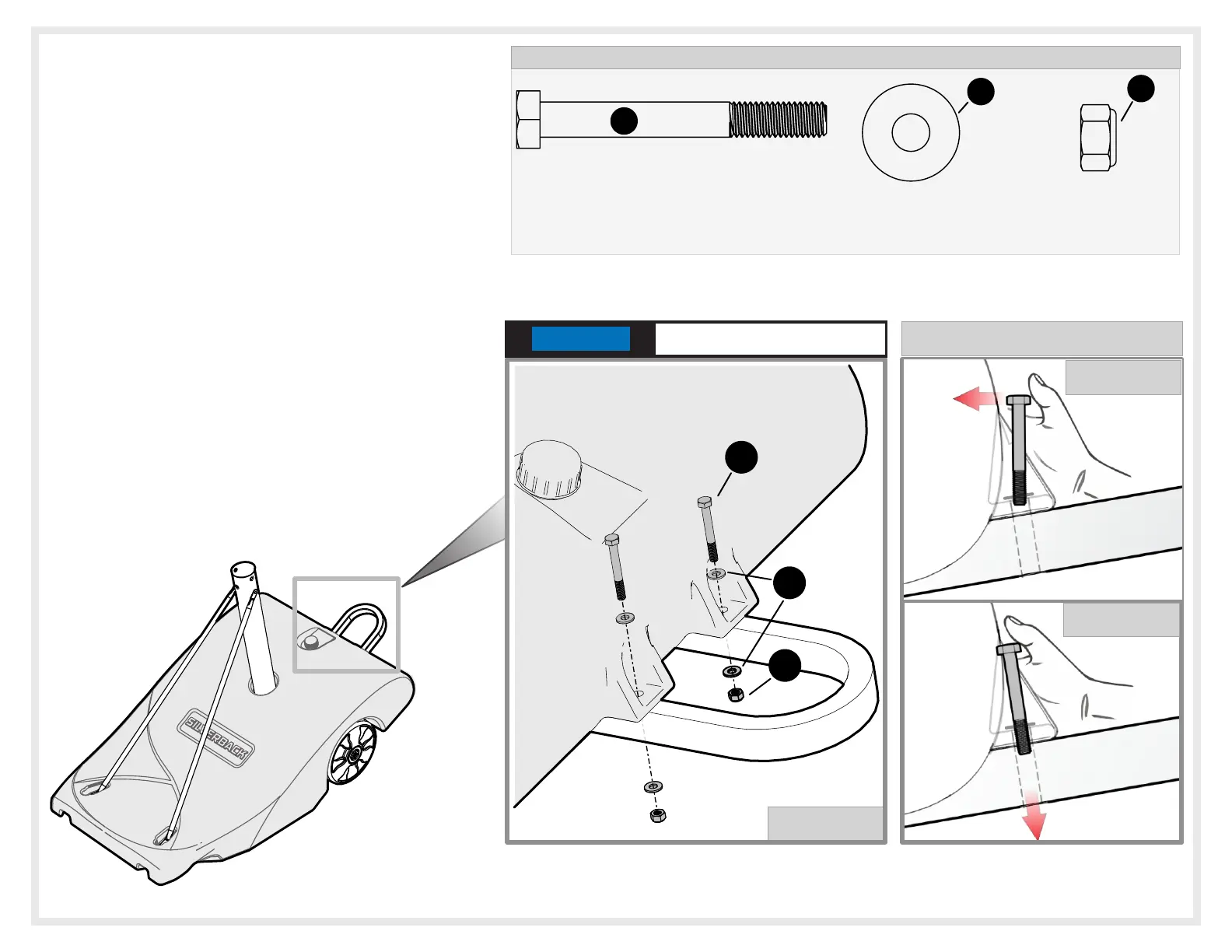

DETAIL A
HARDWARE NEEDED (ACTUAL SIZE)
HEX HEAD BOLT M8-1.25 X 65mm
1B-7077-00
15
Hex Lock Nut M8-1.25
2B-6808-00
17
(QTY. 2)
13. Secure ballast to lower assembly as shown in
Detail A. Finger Tighten hardware.
16
17
15
WASHER M8
2B-6797-00
(QTY. 4)
16
NOTE: If needed use your thumb to push bolt
forward (see Detail B) and then down
(see Detail C) so it goes in easier through
ballast tabs and kick stand tube.
(QTY. 2)
NOTE
FINGER TIGHTEN ONLY!
DETAIL B
DETAIL C
SIDE VIEW
