ESCALADE SilverBack NXT50 - Page 36

36

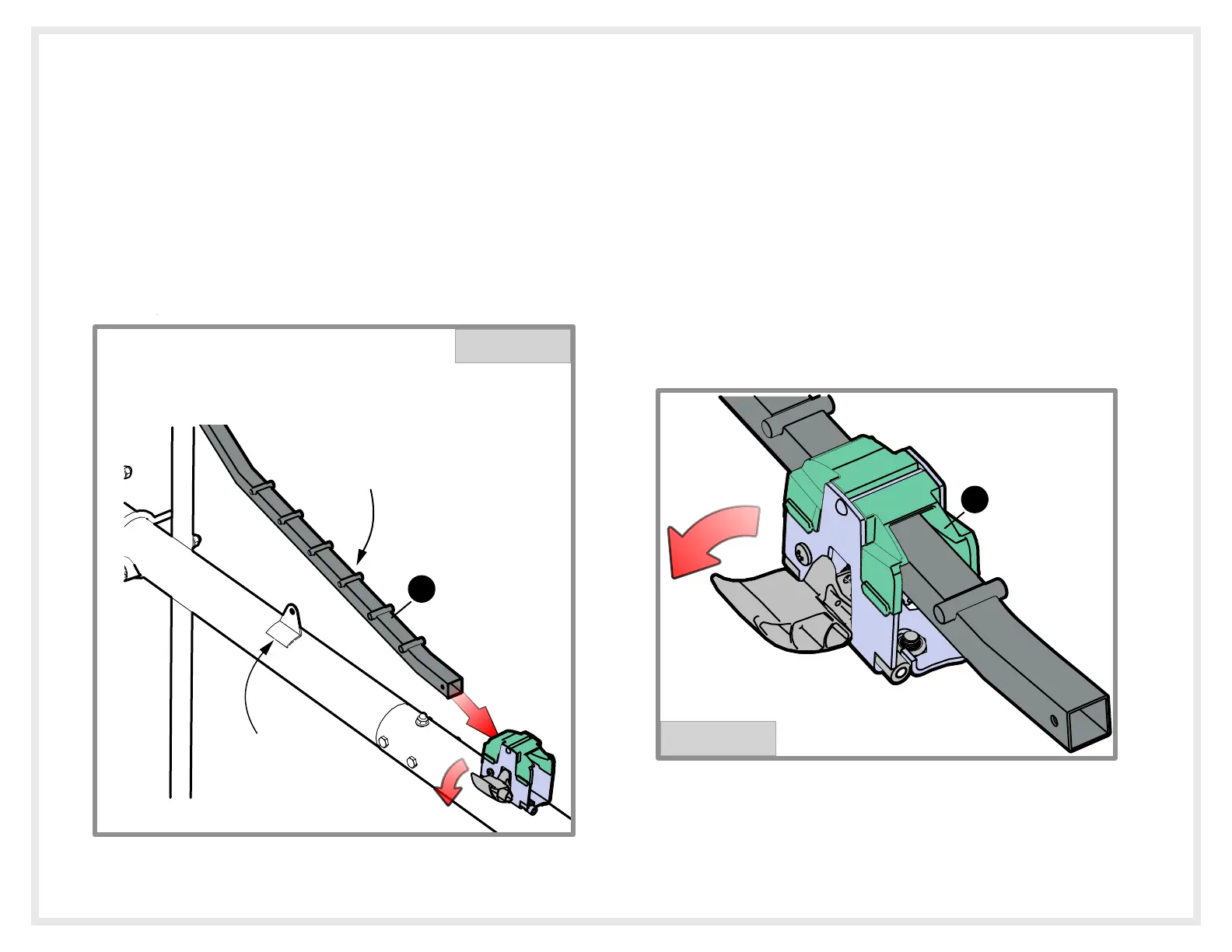

DETAIL A
DETAIL B
DO NOT SCRATCH
ACTUATOR BAR WITH
SPRING BRACKET!
53
53
36. Slide the Actuator Bar (53) through the Actuator Bracket,
release the lever by pressing down and holding while
inserting the Actuator Bar. See Detail A & B.
37. Engage the lock by letting go of the lever and allow
actuator to lock into the bracket.
PINS IN ACTUATOR
BAR FACE UP.
SPRING NOT SHOWN
FOR CLARITY.
