37
DETAIL A
HARDWARE NEEDED (ACTUAL SIZE)
SPRING NOT SHOWN
FOR CLARITY.

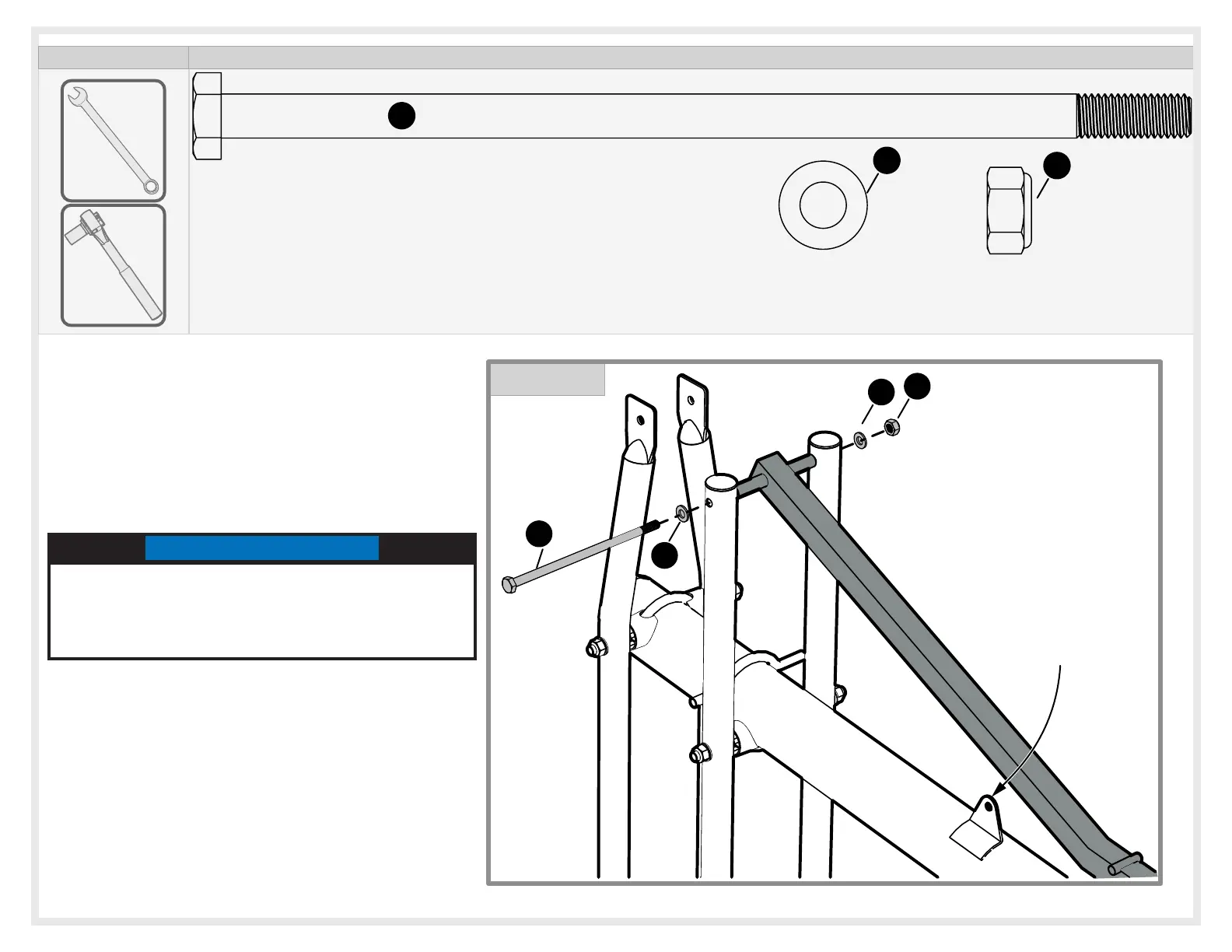

38. Attach other end of the Actuator Bar
(53) to the lower arms, as shown.
You may have to pivot the arms to
align actuator. See Detail A.
24
23
30
23
HEX HEAD BOLT M10-1.5 X 220mm
1B-7085-00
30
(QTY. 1)
WASHER M10
2B-6800-00
23
(QTY. 2)
HEX LOCK NUT M10-1.5
2B-6801-00
24
(QTY. 1)
16mm
TOOLS NEEDED
16mm
DO NOT SCRATCH
ACTUATOR BAR WITH
SPRING BRACKET!
IMPORTANT NOTE
DO NOT over tighten Hardware, arms must
pivot freely. There should only be about two
threads sticking out past the nut.
To Next Page
