33
DETAIL BDETAIL A
NOTE: ATTACH SPRING
TO THE BRACKET ON
THE POLE FIRST.
55

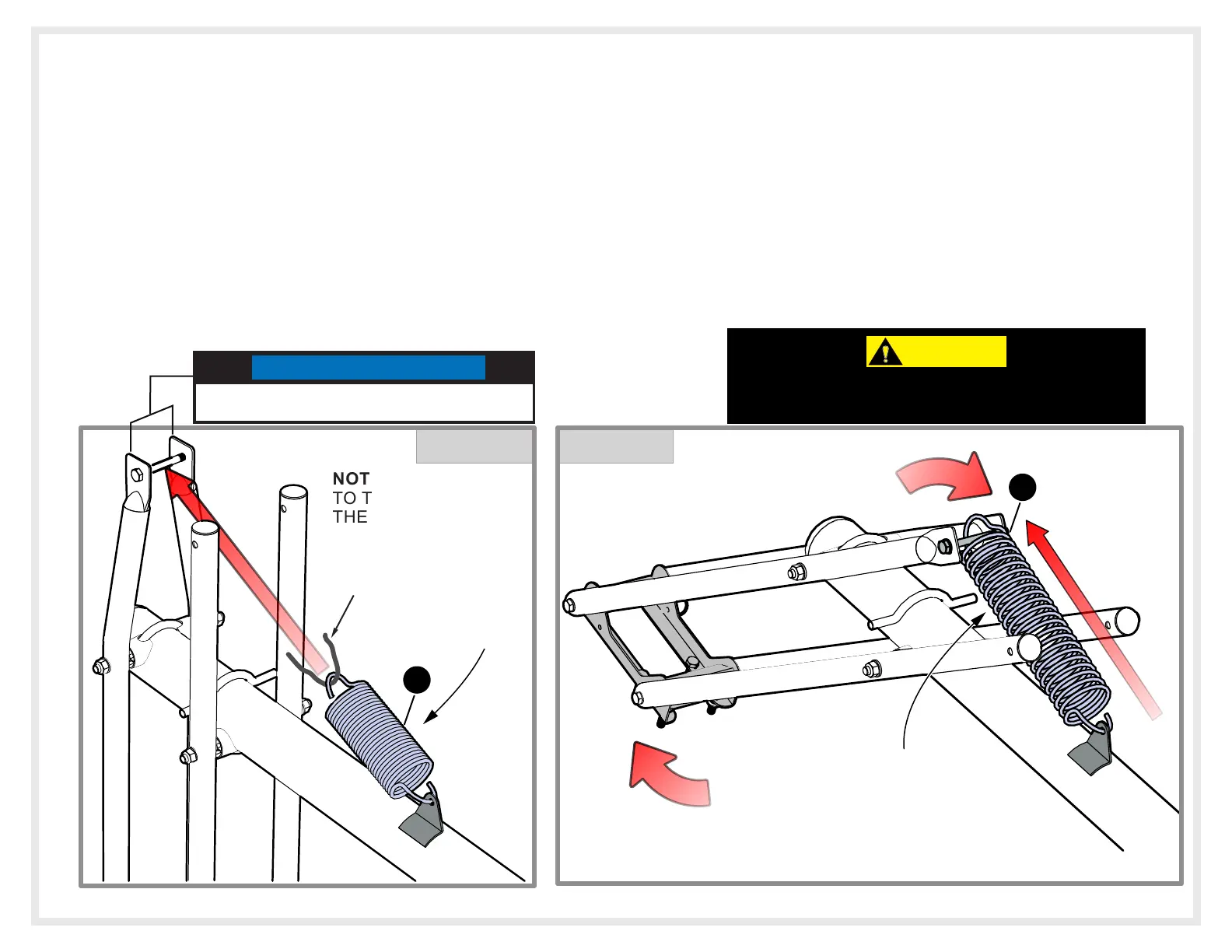

32. With the help of another person attach Spring (55) to upper board
arms. With one hand tilt the upper arms towards the spring and hold
arms in position, then with the other hand pull the spring toward the
arms and hook it onto the Bolt as shown in Detail A & B.
55
31. Insert one end of the spring (55) into Spring bracket on the upper
pole as shown in Detail A.
NOTE: A shoelace or rope can be used to pull
the spring and hook it onto the bolt, this is an
easier alternative than using your ngers.
KEEP FINGERS AWAY
FROM SPRING COILS
CAUTION:
BE CAREFUL WITH THE SPRING WHEN PULLING
IT BACK, KEEP FINGERS AWAY FROM COILS.
Shoelace or
Rope
IMPORTANT NOTE
A minimum of 3” gap must be remaining
in order for the Spring (55) to be installed.
KEEP FINGERS AWAY
FROM SPRING COILS
To Next Page
