23
DETAIL B
17mm
TOOLS NEEDED
16mm
MAKE SURE HEADS OF THE BOLTS ARE
INSERTED INTO THE CUT OUT OF THE POLE, IF
NEEDED USE YOUR THUMB TO HOLD THE
BOLTS IN PLACE THEN USE A RATCHET AND
17MM SOCKET ON NUTS (21). TIGHTEN
HARDWARE TIGHT BUT DO NOT CRUSH TUBE.

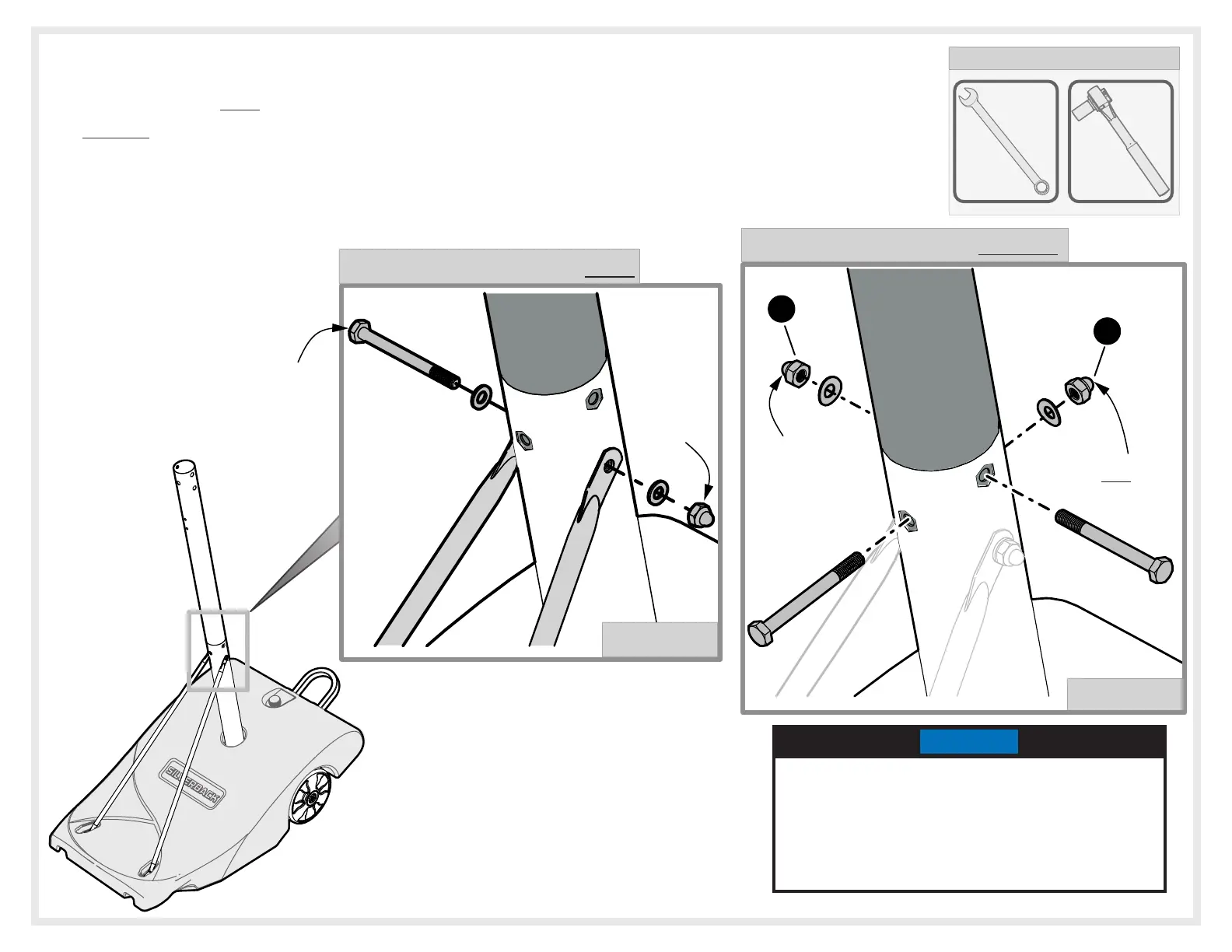

18. In this Step you will continue to tighten the hardware from
previous steps: First tighten hardware shown in Detail A.
Second, tighten hardware shown in Detail B. TIGHTEN
HARDWARE TIGHT BUT DO NOT CRUSH TUBE.
21
21
DETAIL A
TIGHTEN THIS HARDWARE SECOND.
TIGHTEN THIS
NUT LAST , use
17mm Socket.
Use 17mm Socket.
Use 17mm
Socket.
Use 16mm
Wrench
NOTE
TIGHTEN THIS HARDWARE FIRST.
