ESCALADE SilverBack NXT50 - Page 31

31
IMPORTANT NOTE
DO NOT over tighten hardware, parts
must be able to pivot freely.
DETAIL BDETAIL A
26
24
23
30
30
24
23
27
27
23
23
27
27
FINGER TIGHTEN ONLY UNTIL
INSTRUCTED.
26
Bolts face down
HARDWARE NEEDED (ACTUAL SIZE)
HEX HEAD BOLT M10-1.5 X 220mm
1B-7085-00
30
(QTY. 2)
WASHER M10
2B-6800-00
23
(QTY. 4)
WASHER, NYLON
3M-9000-00
27
(QTY. 4)
HEX LOCK NUT M10-1.5
2B-6801-00
24
(QTY. 2)
16mm
TOOLS NEEDED
16mm
19mm

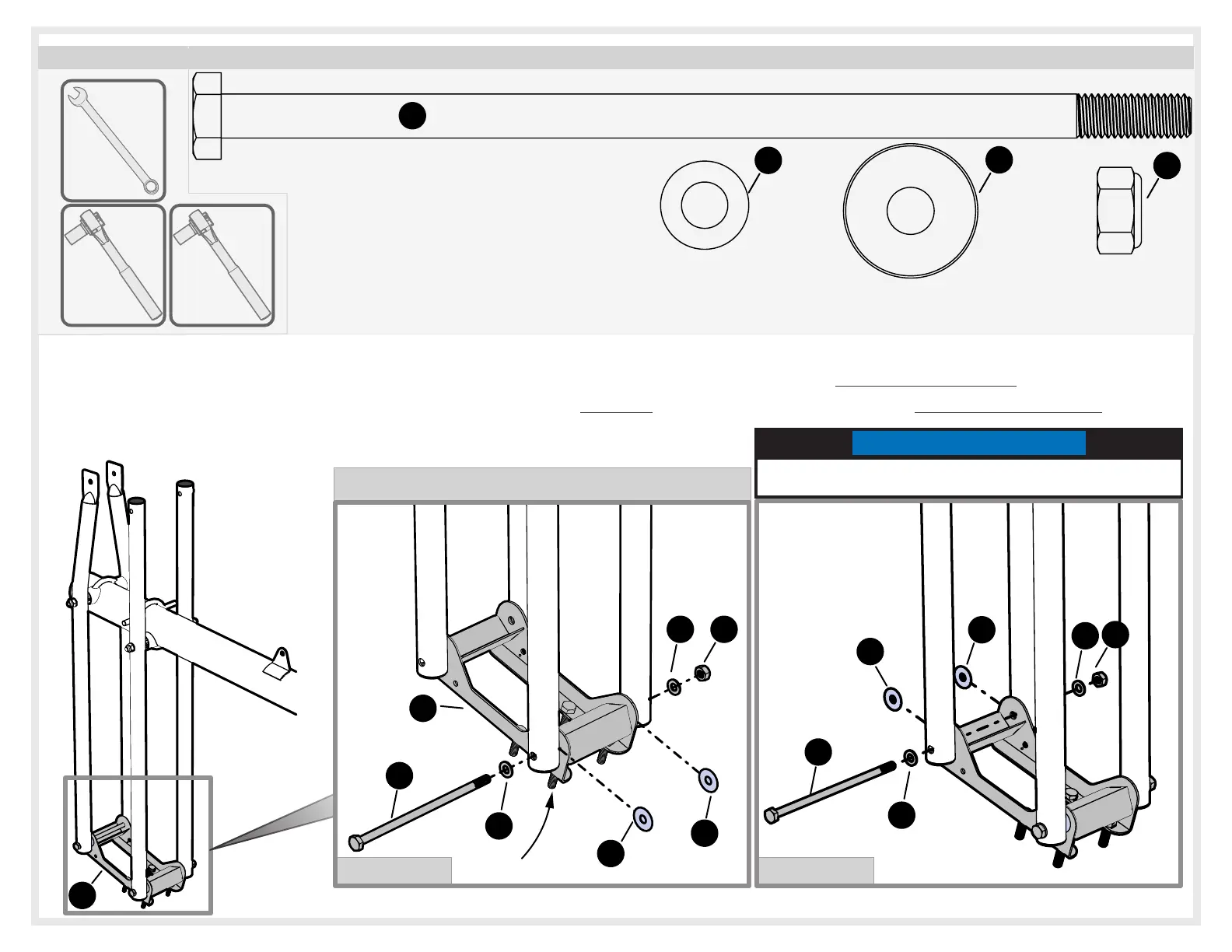

29. Attach Backboard Box (26) to lower and upper arms as shown in Detail A & B. Make sure to put a (27) Nylon Washer in
between the Arms and the Backboard Box. Tighten hardware from Detail A & B but back off half a turn once you feel the
hardware is snug. At this time also tighten Nuts from STEP 28 with a19mm Socket and also back off half a turn once you
feel the hardware is snug.
