25
HARDWARE NEEDED (ACTUAL SIZE)
HEX LOCK NUT M6-1
2B-6803-00
47
48
(QTY. 1)
48
47
46

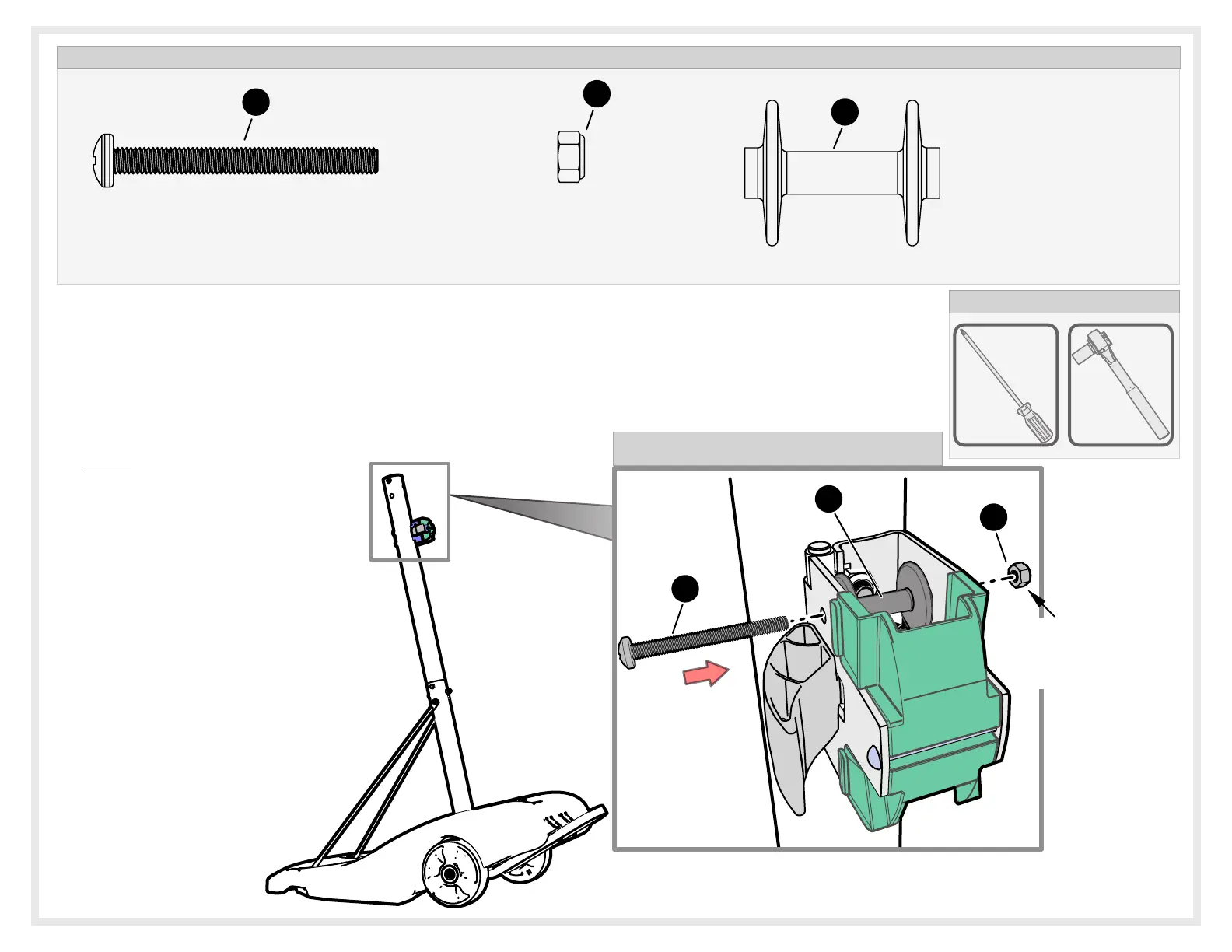

20. Insert Screw (46) through Actuator
bracket, Actuator Roller (48) and
through other side of Actuator
bracket. Fasten with (47) nut.
10mm
TOOLS NEEDED
Phillips
ACTUATOR ROLLER
3M-9035-00
(QTY. 1)
PHILIPS HEAD SCREW M6-1 X 60mm
1B-7123-00
(QTY. 1)
46
Actuator roller #48 must rotate freely.
Do not over-tighten nut
#47. There must be no
more than 1-2 threads
sticking out from nut.
NOTE:
Do not over-tighten nut #47.
There must be no more than 1-2
threads sticking out from nut.
To Next Page
