ES720.1 - User’s Guide66
Technical Data ETAS
8.5 Electrical Data
8.5.1 Network
ES720.1 IP Address IP Address (default) 192.168.40.228
Subnet Mask (default) 255.255.255
Remote Desktop Account DriveRecorder
Passwort etases720dr
8.5.2 Interface „7-29V“
Pin Assignment
O
N

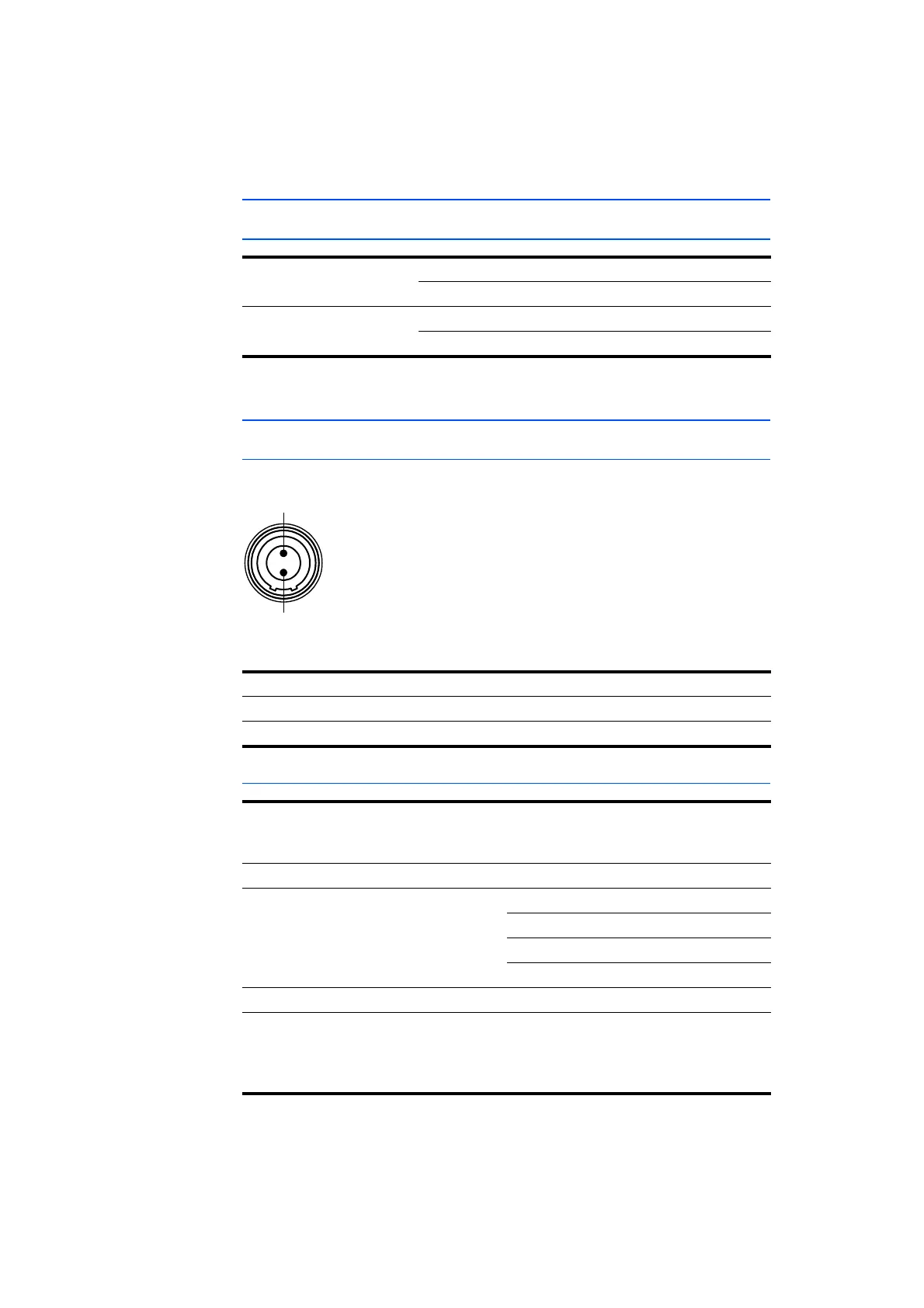

Fig. 8-2 Interface „7-29V“
Pin Signal Meaning
1 UBATT+ Power supply, plus
2 Ground Ground
Technical Data
Operating voltage (max.) 7 V to 29 V DC ±10%;
Load Dump protected, reverse-polarity
pr
otected
Current consumption (operation) max. 2,75 A
Power consumption (at 13,5 V) Typ. 100 mW (Low Power Standby)
Typ. 550 mW (Fast Boot Standby)
Typ. 5 W (normal mode)
1)
Typ. 6 W (normal mode)
2)
Energy management Wake-Up, standby

1)
: Measurement mode with INCA, CPU load normal, WLAN off
2)
: Measurement mode with INCA, CPU load normal, WLAN on
