ETAS ES720.1 - Interface ETH; Fig. 8-3 Interface ETH

ES720.1 - User’s Guide 67
ETAS Technical Data
8.5.3 Interface „ETH“
Pin Assignment
N
U

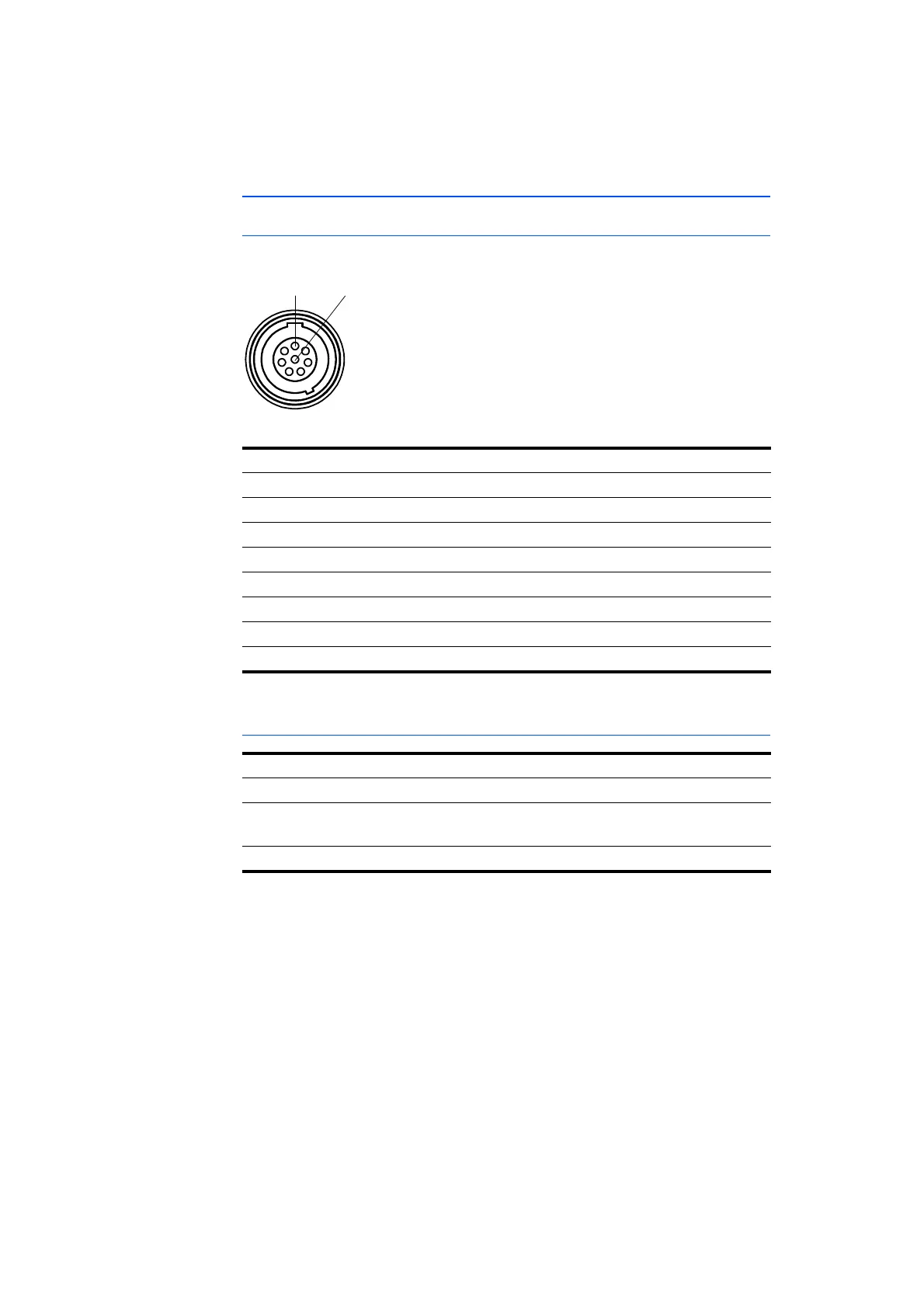

Fig. 8-3 In
terface „ETH“
Pin Signal Meaning
1 N.C. Reserved
2 N.C. Reserved
3 N.C. Reserved
4 RX+ Received data, plus
5 TX- Send data, minus
6 RX- Received data, minus
7 N.C. Reserved
8 TX+ Send data, plus
Technical Data
Connection 10/100Base-T Ethernet
Protocoll TCP/IP
Synchronization No support of ETAS synchronization
mechanism
Power supply of connected modules No
