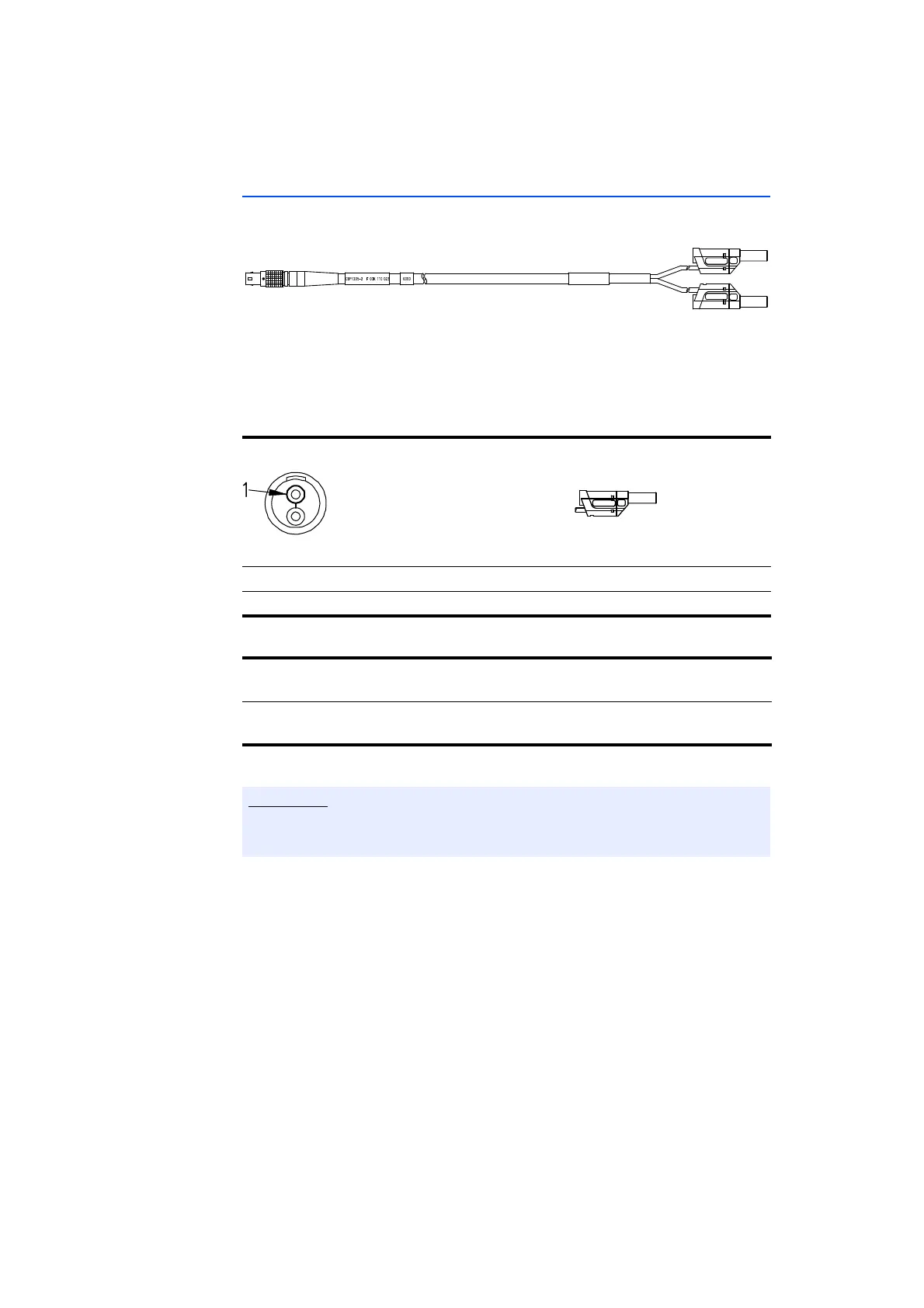

ETAS ES720.1 - CBP1205 Cable; Fig. 9-2 CBP1205 Cable (Power Supply Cable with Safety Banana Plugs)

ES720.1 - User’s Guide 77
ETAS Cable and Accessoires
9.1.2 CBP1205 Cable
Side A Side B
Fig. 9-2 CB
P1205 cable (power supply cable with safety banana plugs)
Side A Side B
Pin Signal Plug Signal
1 UBATT Red UBATT
2 Ground Black Ground
Order Name Short name Order 
Number
Power Supply Cable, Lemo 1B FGJ – Safety
Banana (2
fc-2mc), 2 m
CBP1205-2 F 00K 110 023
Power supply cables with safety banana plug are suitable only for connection
to voltage sources with safety socket.
Note
