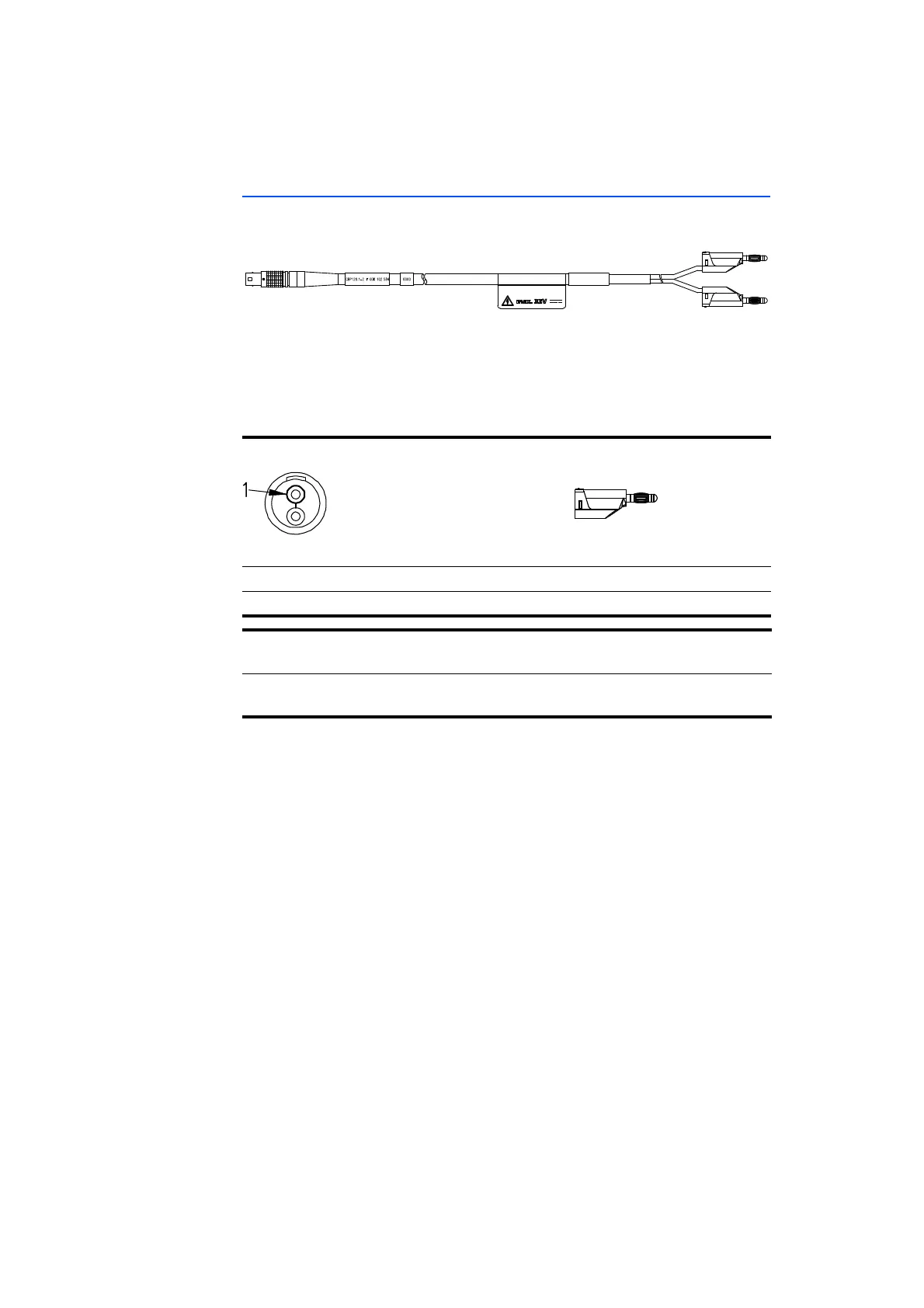

ETAS ES720.1 - CBP120 Cable; Fig. 9-1 CBP120-2 Cable (Power Supply Cable with Standard Banana Plugs)

ES720.1 - User’s Guide76
Cable and Accessoires ETAS
9.1.1 CBP120 Cable
Side A Side B
Fig. 9-1 CB
P120-2 cable (power supply cable with standard banana plugs)
Side A Side B
Pin Signal Plug Signal
1 UBATT Red UBATT
2 Ground Black Ground
Order Name Short name Order 
Number
Power Supply Cable, Lemo 1B FGJ Banana
(
2fc-2mc), 2 m
CBP120-2 F 00K 102 584
