Patch 137
The dimmer list is the area of patch that handles setting up dimmer feedback from CEM+, CEM3,
and FDX 2000/ 3000. You can also do some configuration of dimmers from this list.
The RDM List is the area of patch that handles RDM feedback with devices. You can also do some
configuration of devices from this list. Once RDM compatible devices have been patched, they keep
communicating with the console to allow you to know when things like blown lamps happen or if a
device goes offline for some reason. See RDM Device List (on page139)
The Device List displays all discovered devices during the current session and all devices that have
been stored in the show file.
Note: Consoles only support RDM devices that are connected through a Gadget, Local
I/O, or external ACN gateway. Supported gateways are the ETC Net3 4 or 2 port Gateways.
Gateways need to be running version 5.1 or newer.
Dimmer List for CEM+, CEM3, and FDX 2000/3000
Note: For Dimmer Feedback, these software versions are required: CEM+ v3.0 and newer,
CEM3 v1.3.1 and newer, and FDX v3.4.0 and newer.
To use the Dimmer Feedback area of the Device List, you must first enable feedback. In the network
tab of the ECU, when using CEM+ or CEM3, make sure {Sensor/FDX3000 Feedback} is enabled, or
when using FDX 2000/ 3000, make sure that {Sensor/FDX3000 Feedback} or {FDX2000 Feeback} is
enabled. The default setting is disabled for both. See Interface Protocols (on page480)

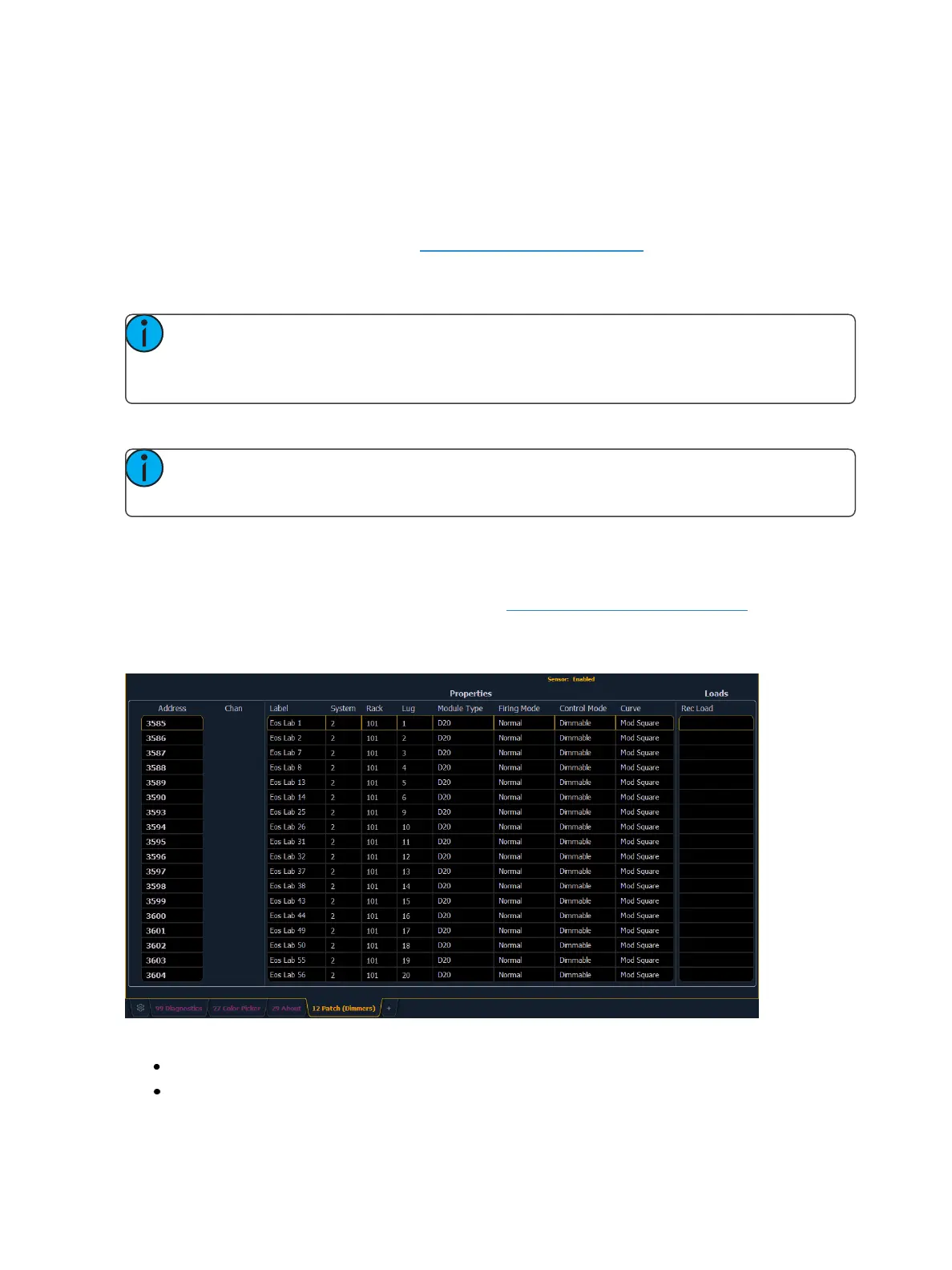

Open the Dimmer Feedback display while in the Patch display by pressing {Device List}> {Dimmers}.
When the dimmer list is opened, the dimmers will be displayed in Patch by Address mode.
Eos will display the following information that it receives from the dimmers:
Address
Channel
