Eternus DX60 - Figure 6.5 Connection of AC Output Cables (1 U AC Outlet Box)

Chapter 6 Cable Connection
> 6.7 Power Cord Connection
ETERNUS DX60/DX80/DX90 Disk storage system User Guide
128
Copyright 2010 FUJITSU LIMITED
P3AM-3042-07ENZ0

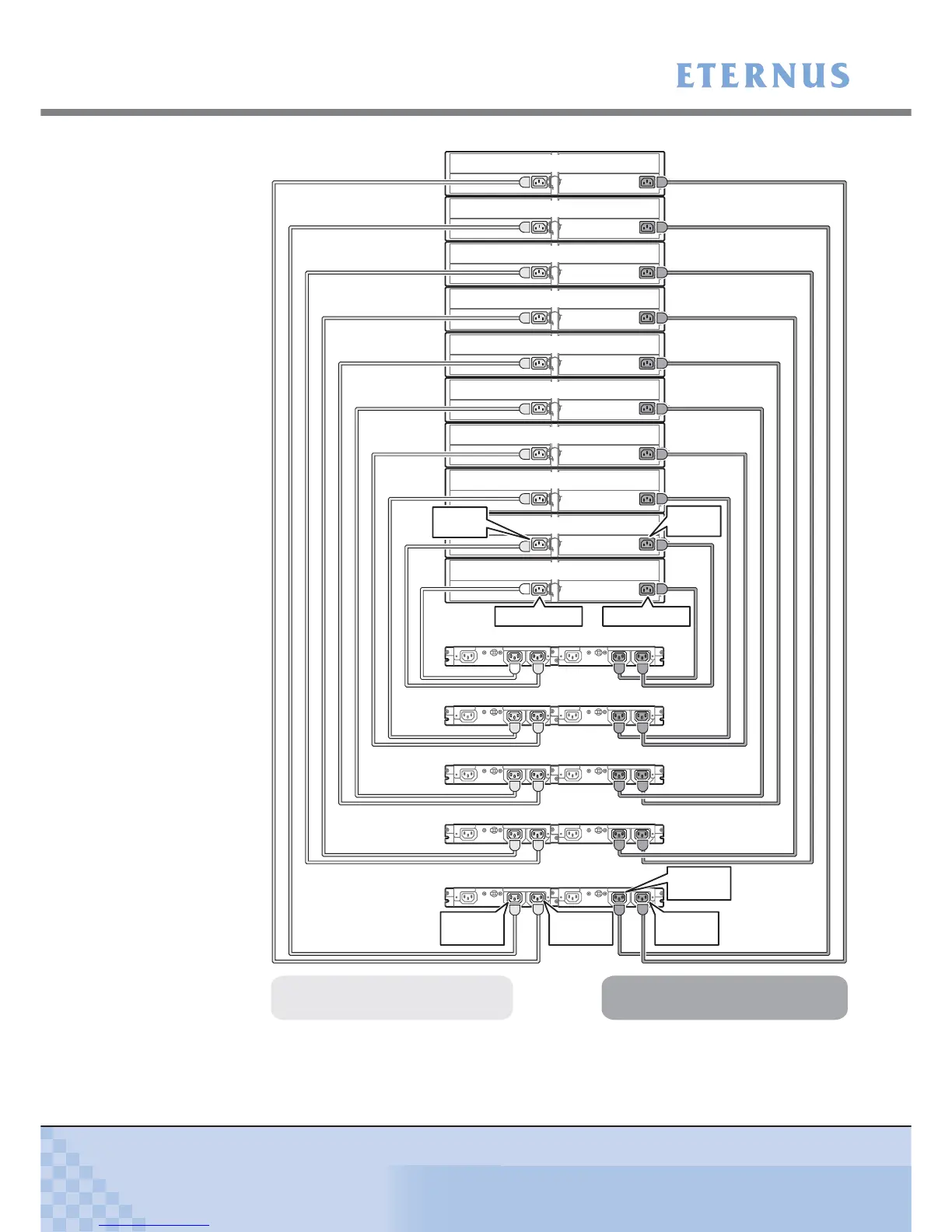

Figure 6.5 Connection of AC output cables (1U AC outlet box)
Drive Enclosure 9
Drive Enclosure 8
Drive Enclosure 7
Drive Enclosure 6
Drive Enclosure 5
Drive Enclosure 4
Drive Enclosure 3
Drive Enclosure 2
Drive Enclosure 1
Controller Enclosure
Connect between the OUTPUT#0-n of the AC outlet box
and the PSU#0 inlets of the ETERNUS DX60/DX80/DX90.
Connect between the OUTPUT#1-n of the AC outlet box
and the PSU#1 inlets of the ETERNUS DX60/DX80/DX90.
AC outlet box 1
AC outlet box 2
AC outlet box 3
AC outlet box 4
AC outlet box 5
Outlet
OUTPUT #0-1
Outlet
OUTPUT #0-2
Outlet
OUTPUT #1-2
Outlet
OUTPUT #1-1
PSU#1 Inlet
PSU#1 InletPSU#0 Inlet
PSU#0 Inlet
