• Example when volumes transferred from a RAID5(3+1) configuration to a different RAID
level, RAID1+0(3+3), configuration:

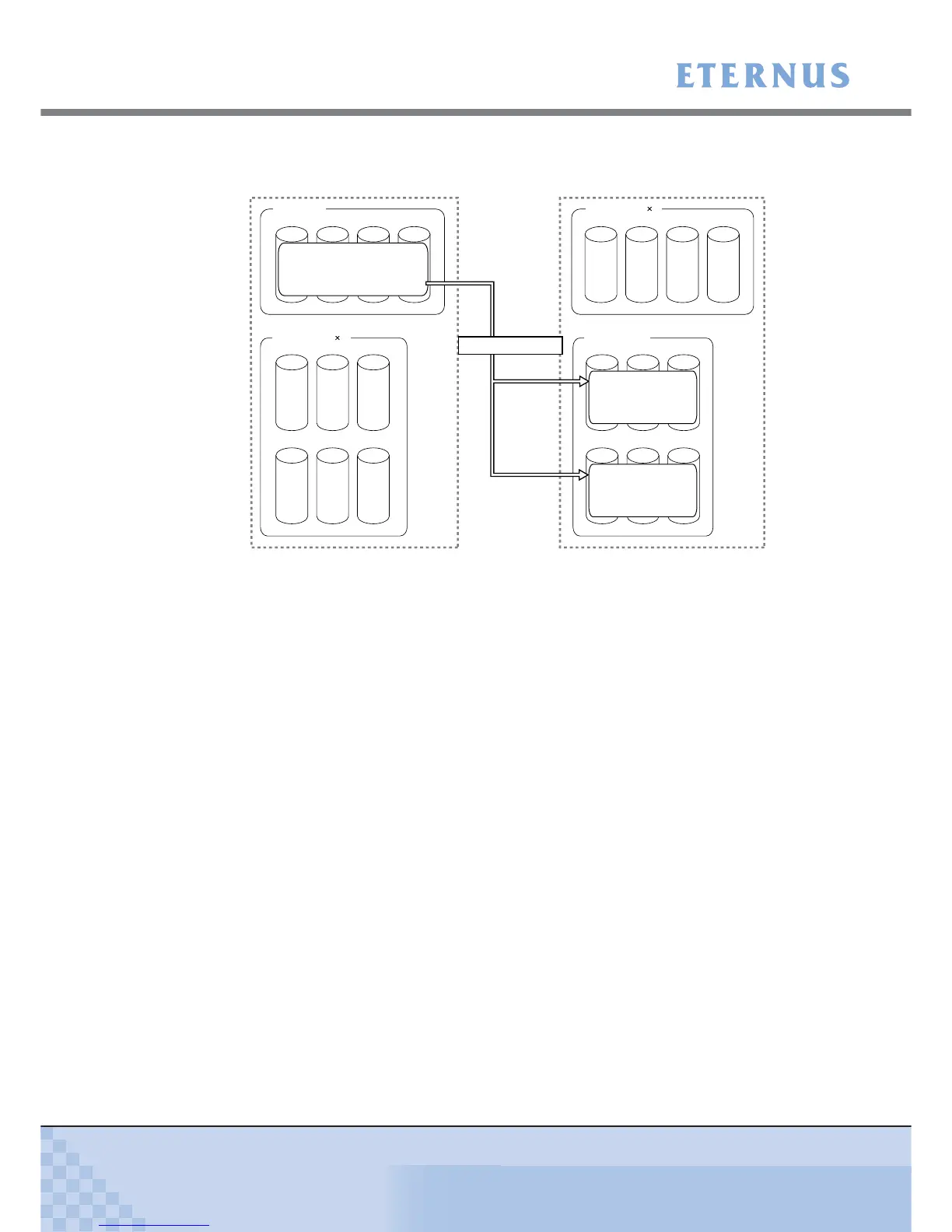

Figure 1.14 Example for use RAID Migration 2
RAID5 (3+1)
Unused 300GB 6 RAID1+0 (3+3)
300GB 300GB 300GB 300GB
300GB 300GB 300GB
300GB 300GB 300GB
300GB 300GB 300GB
300GB 300GB 300GB
300GB 300GB 300GB 300GB
Unused 300GB 4
LUN0 900GB
Migrate to another RAID group
LUN0 900GB
LUN0 900GB
