Eton VECTOR ST 250 - COOLING SYSTEM

101
12. COOLING SYSTEM
12-1 Mechanism Diagram
12-2 General Information
12-3 Trouble Diagnosis
12-4 Trouble Diagnosis for Cooling System
12-5 System Test
12-6 Radiator
12-7 Water Pump
12-8 Thermostat

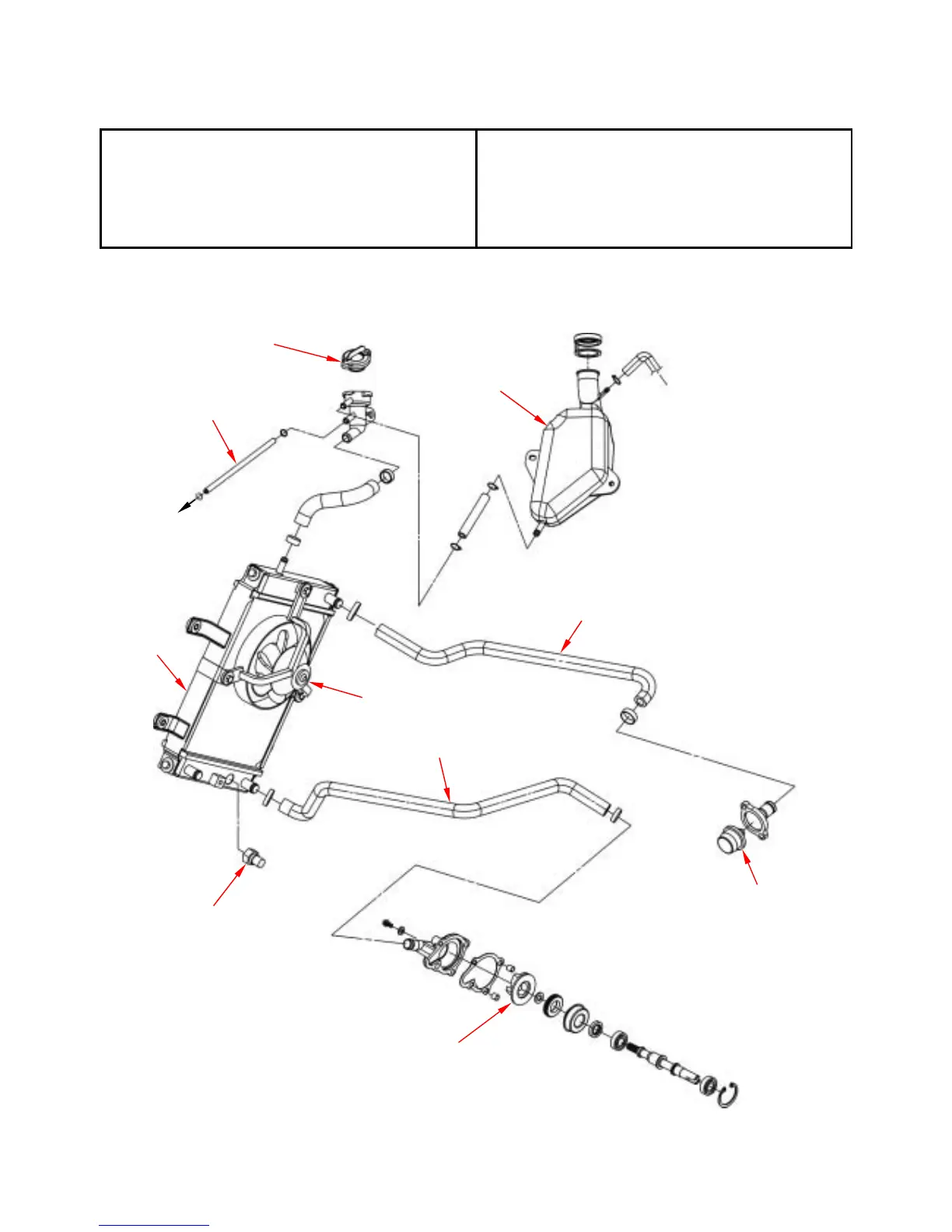

12-1 Mechanism Diagram
Radiator filler cap
Radiator
Reserve tank
Thermo switch (fan)
Coolant inlet pipe
Coolant outlet pipe
By-pass pipe
Water pump
Thermostat
Cooling fan
To cylinder head
