Eton VECTOR ST 250 - FINAL DRIVING MECHANISM

72
9. FINAL DRIVING MECHANISM
9-1 Mechanism Diagram - transmission
cover
9-2 Precautions in operation
9-3 Trouble Diagnosis
9-4 Disassembly of Transmission
9-5 Inspection of Mission Mechanism
9-6 Bearing Replacement
9-7 Re-assembly of Final Driving
Mechanism

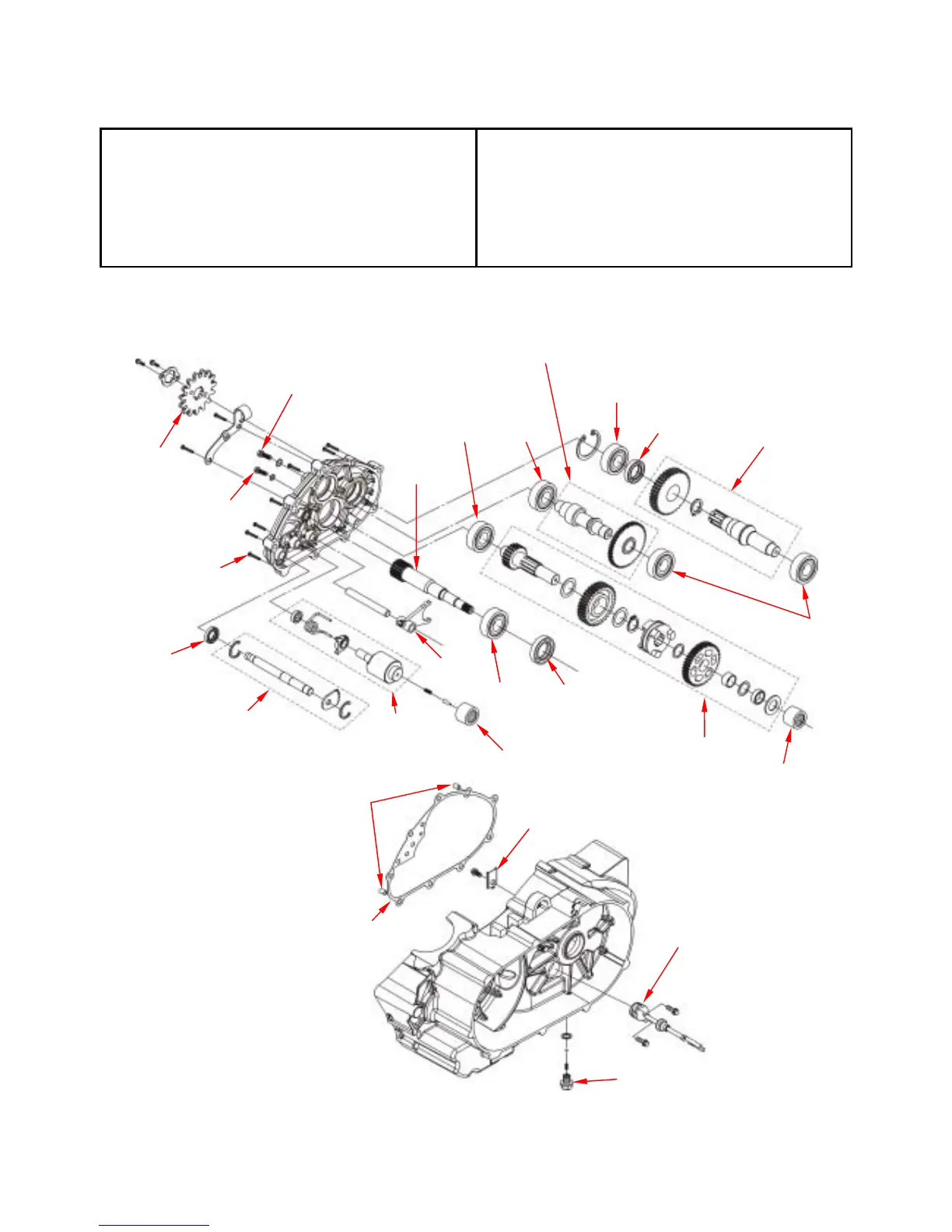

9-1 Mechanism Diagram - transmission cover
Final shaft
Drive sprocket
Reverse shaft
Counter shaft
Drive shaft
Bearing (6304)
Bearing (6205LLU)
Bearing
(6204)
Bearing
(6305)
Change switch
Gasket
Gear oil fill bolt
3.5~4.5kgf-m
Drive shaft bearing
setting plate
Oil seal
(14x26x6)
Shift spindle Shift drum
Shift fork
Dowel pin
Needle bearing
(HK2016)
Oil seal
(25x40x7)
Oil seal (30x46x7)
Bearing (6204)
Gear oil drain bolt
0.8~1.2kgf-m
Needle bearing
(K25x29x10)
Cover bolt
2.6~3.0kgf-m
Shift drum fixed catch bolt
2.6~3.0kgf-m
