Eton VECTOR ST 250 - Flywheel Removal

To Next Page

To Previous Page

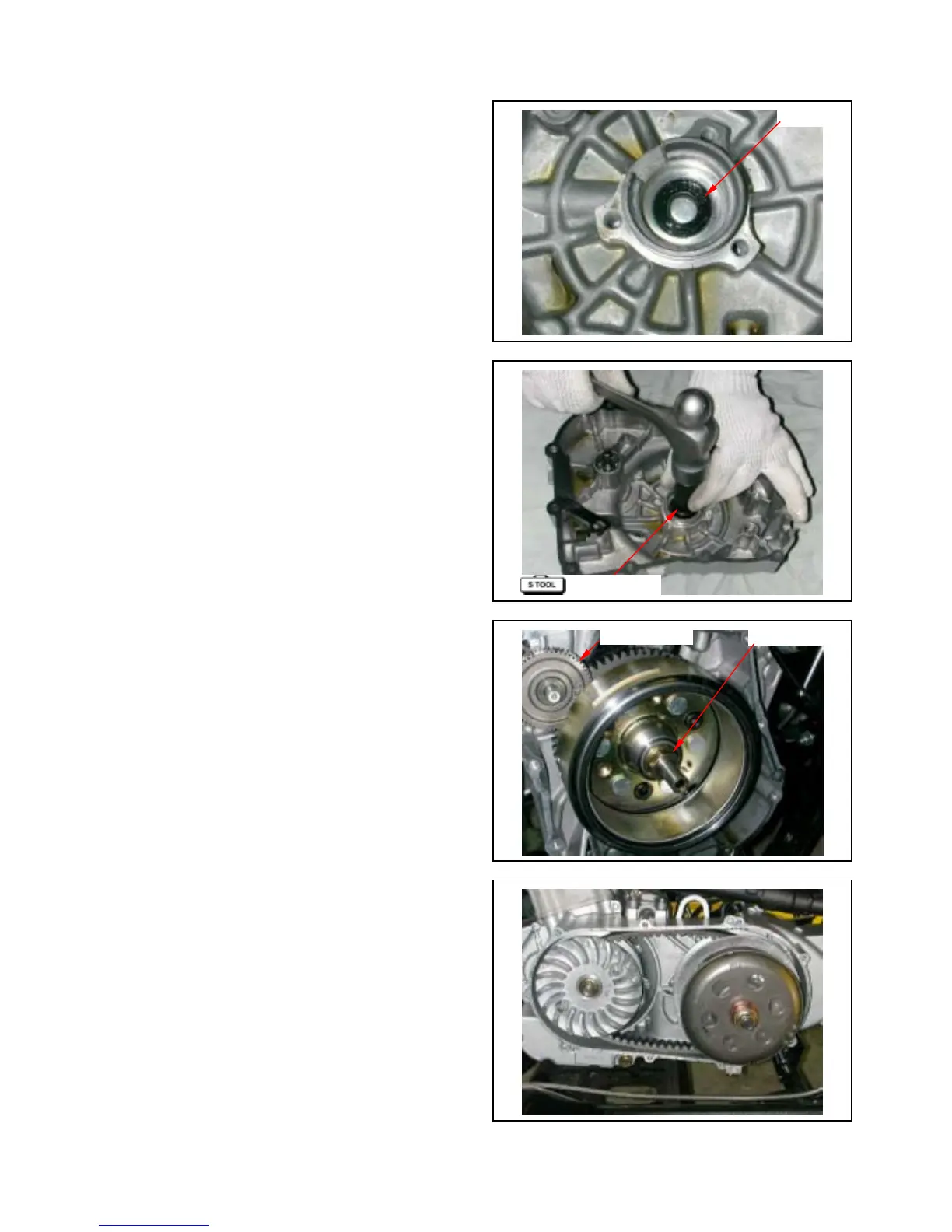

Check the oil seal for wear or damage. Replace

it if necessary.

Install a new one bearing (6201LU) by bearing

driver.

Special tool:

Bearing driver

10-6 Flywheel Removal

Remove right crankcase cover.

Remove left crankcase cover.

Hold the flywheel by drive face with universal

holder.

Remove flywheel nut.

Special tool:

Universal Holder

Flywheel nut

Reduction gear

Oil seal

Bearing driver
