16.2 REAR FENDERS REMOVAL

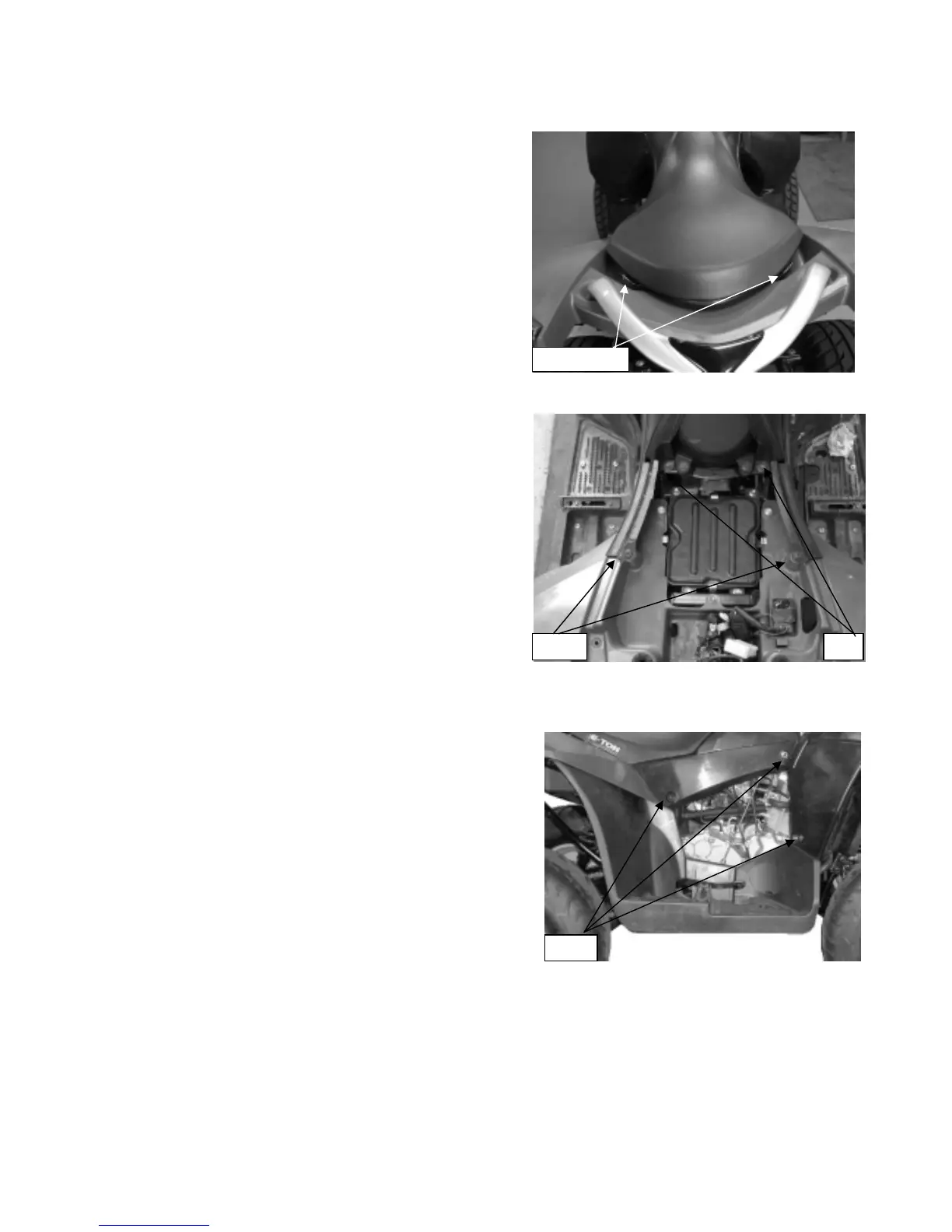

There are two seat release bars located at the right
and left hand side of the seat. Please remove the seat first.
Procedures of remove the rear fender:
Remove the rear rack.
1. Open the seat.
2. Loosen the four bolts which connect the front fender and
rear fender.
3. Loosen the two bolts, which connect the rear tender
and frame, these two bolts just below the seat.
Loosen the three screws which connect with footrest plate.
Pull the rear fender backward.
So the rear fender can be removed.
Pull the seat handle up first.
Screws Bolts
Screws
Release Bars
