91

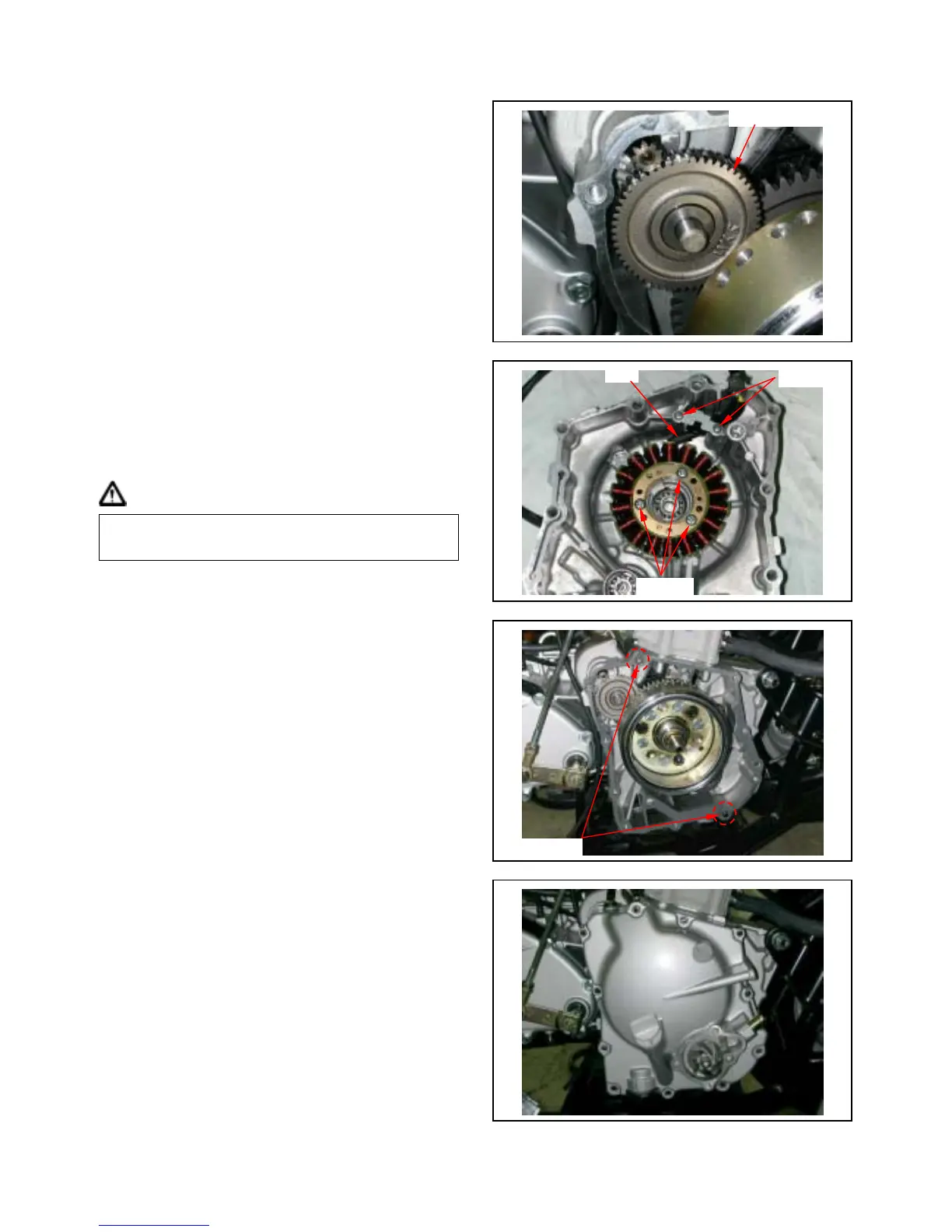

Install reduction gear shaft and reduction gear.
10-9 A.C.G. Set Installation
Install the A.C.G. coil set onto right crankcase
cover (3 screws).
Install pulse generator (2 screws).
Tie the wire harness securely onto the indent of
crankcase.
Caution
Make sure that the wire harness is placed under
pulse generator.
10-10 Right Crankcase Cover
Installation
Install dowel pin and new gasket.
Remove water pump cover.
Install right crankcase cover onto the crankcase.
Note: Align the water pump shaft indent with the oil
pump shaft.
2 bolts
3 screws
Wire
Reduction gear
Dowel pin
To Next Page
