Eton VECTOR ST 250

To Next Page

To Previous Page

116

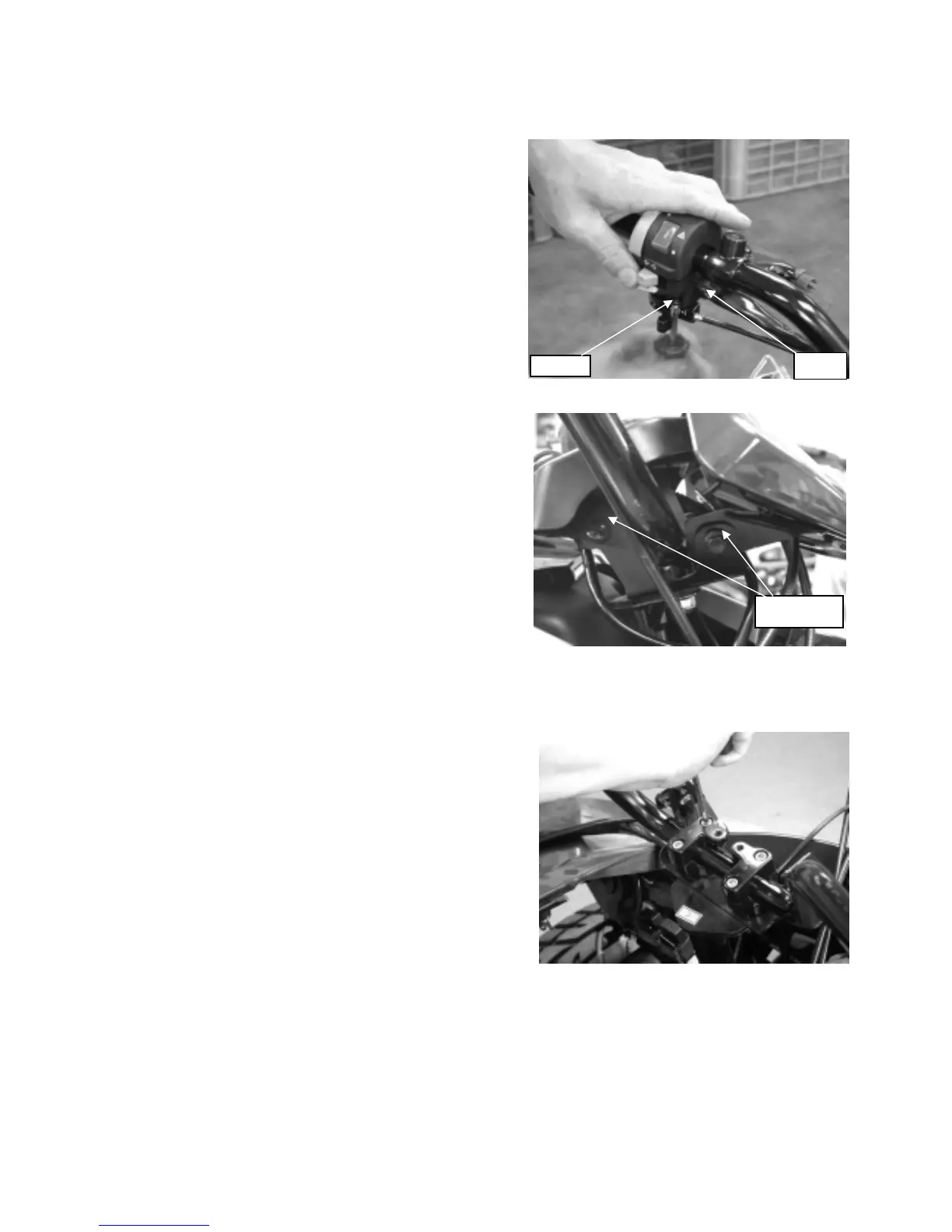

Remove the handle bar switch on the left handle bar.

Remove rear brake lever bracket assembly.

Remove the handle cover and instrument panel by four

screws at right and left side as shown in picture.

Remove the bolts attaching the handlebar upper holder.

Remove the handlebar.

Bolts

Screws
