75

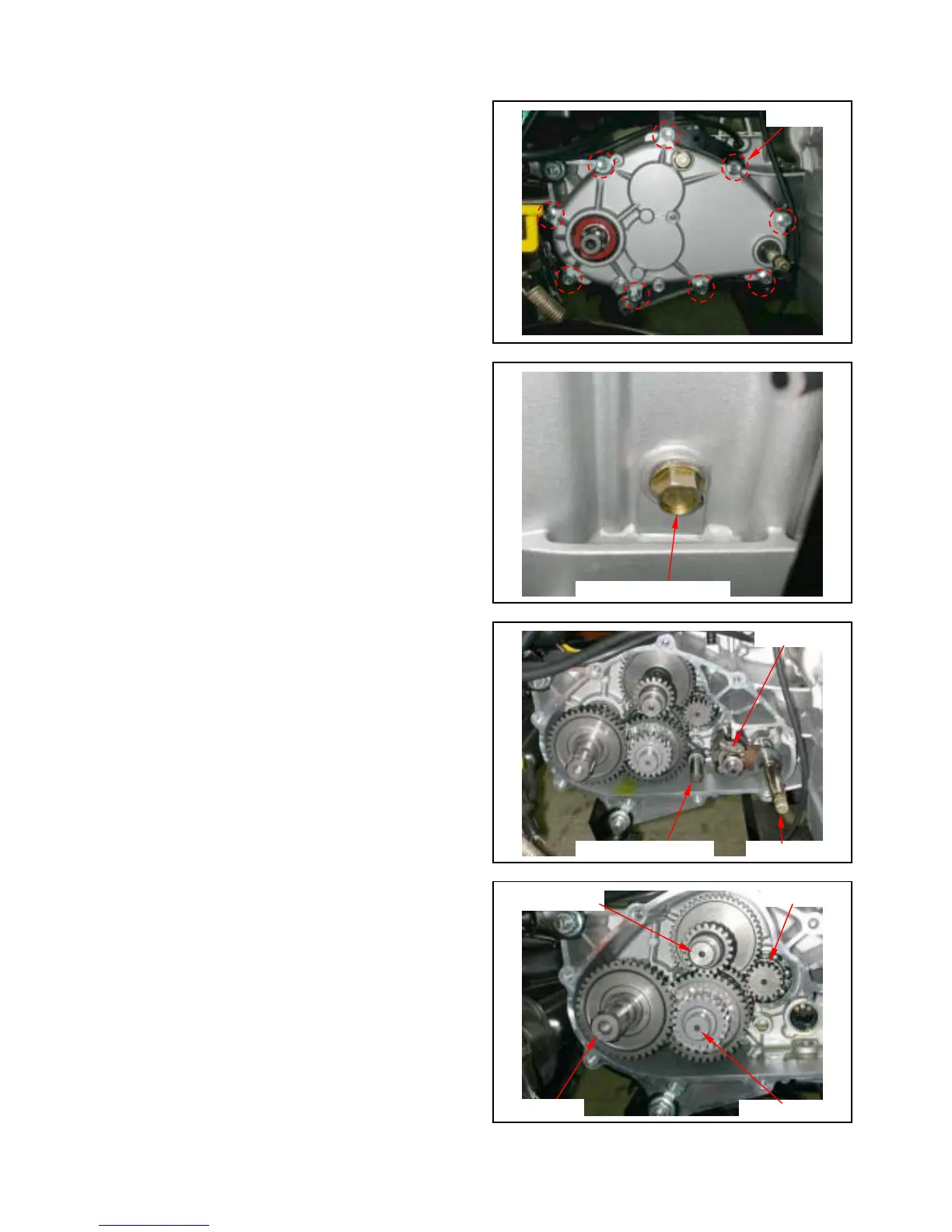

Remove gear box cover bolts (9 bolts) and then
remove the cover.
Remove shift drum catch ball, spring and bolt.
Remove shift spindle, shift fork shaft, shift fork and
shift drum.
Remove final shaft, counter shaft and reverse
shaft.
Shift drum
Shift spindle
Shift fork shaft and fork
9 bolts
Reverse shaft
Counter shaft
Final shaft
Shift drum fixed catch bolt
Drive shaft
