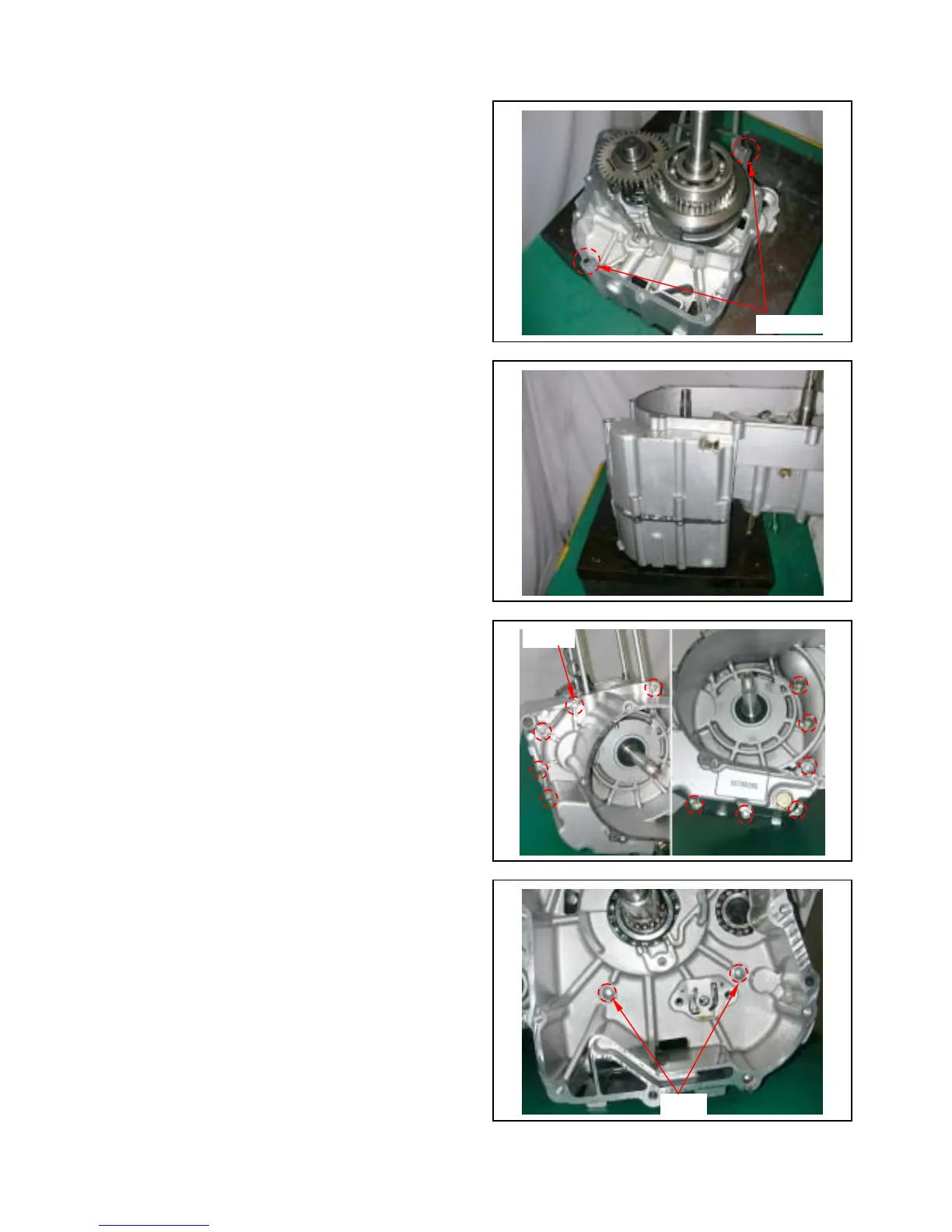

Install 2 dowel pins and new gasket.

Install the left crankcase onto the right crankcase.

Tighten 11 bolts on the left crankcase.

Torque value: 0.8~1.2kgf-m

Tighten 2 bolts on the right crankcase.

Torque value: 0.8~1.2kgf-m

Dowel pins

2 bolts

11 bolts
