EVCO S.p.A.
EVBOX1 | Installation guide ver. 2.0 | Code 144BOX1E204
page 17 of 100

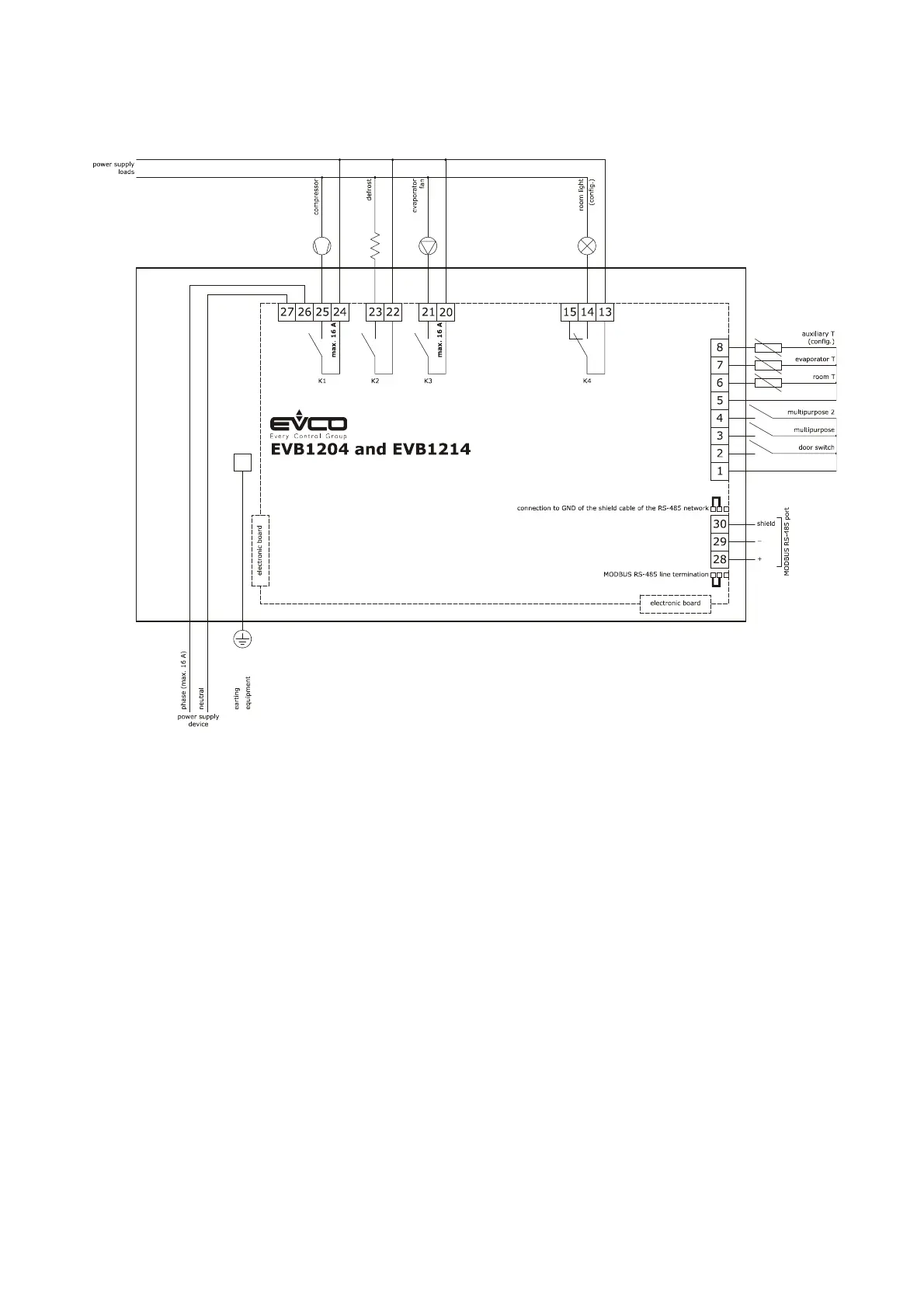

4.2 Electric connection for models EVB1204 and EVB1214
The following drawing shows the electric connections for the EVB1204 and EVB1214 models.
