Evco EVBOX1 EVB1206 - Electric connection for models with magneto-thermal switch or differential magneto-thermal circuit breaker (example for EVB1256 N9 D)

EVCO S.p.A. EVBOX1 | Installation guide ver. 2.0 | Code 144BOX1E204
page 23 of 100
4.8 Electric connection for models with magneto-thermal switch or differential
magneto-thermal circuit breaker (example for EVB1256N9D)

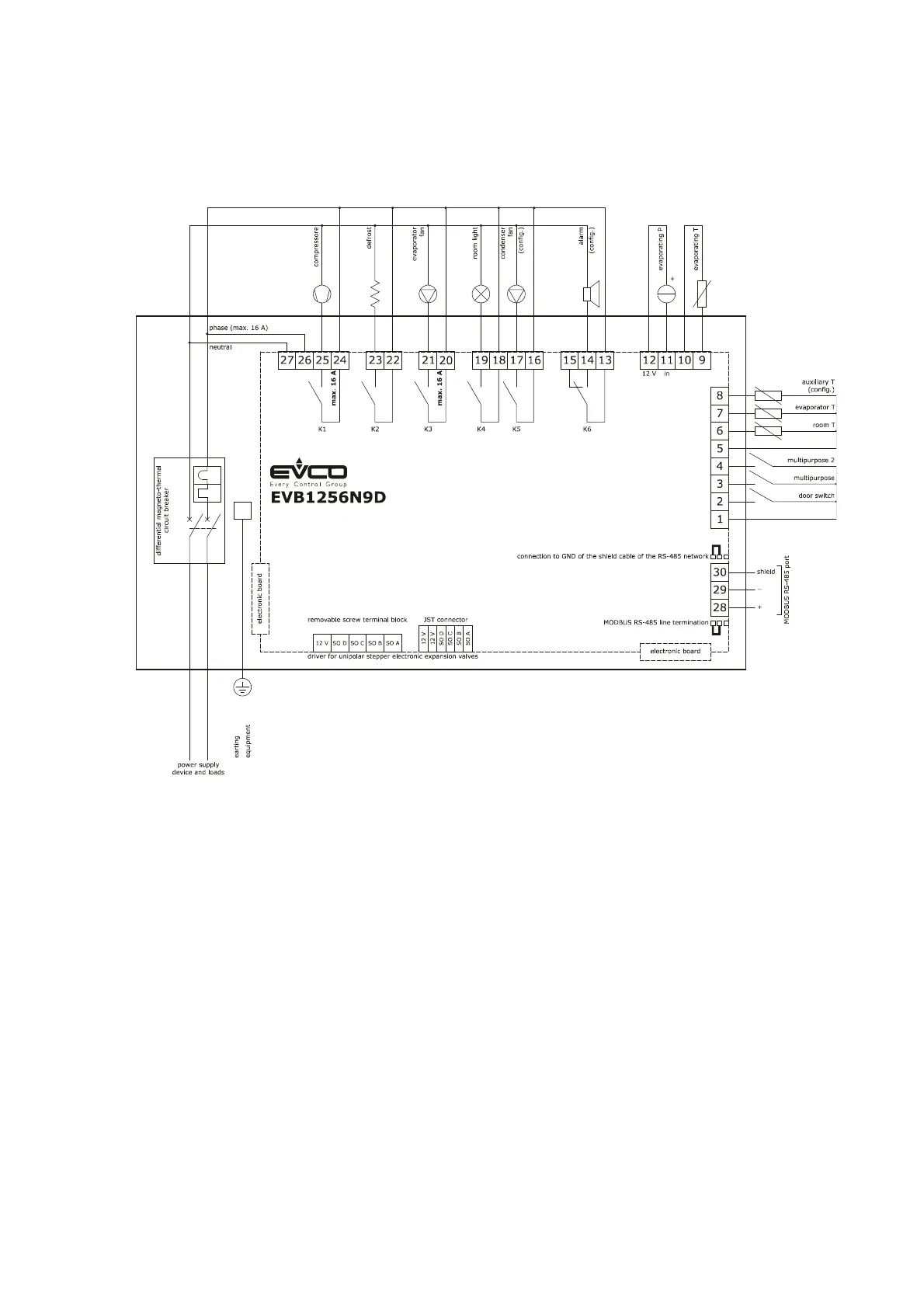

The following drawing shows the electric connections for models with magneto-thermal switch or differential magneto-thermal circuit
breaker (example EVB1256N9D).
