4.4 Electric connection for models EVB1226 and EVB1236

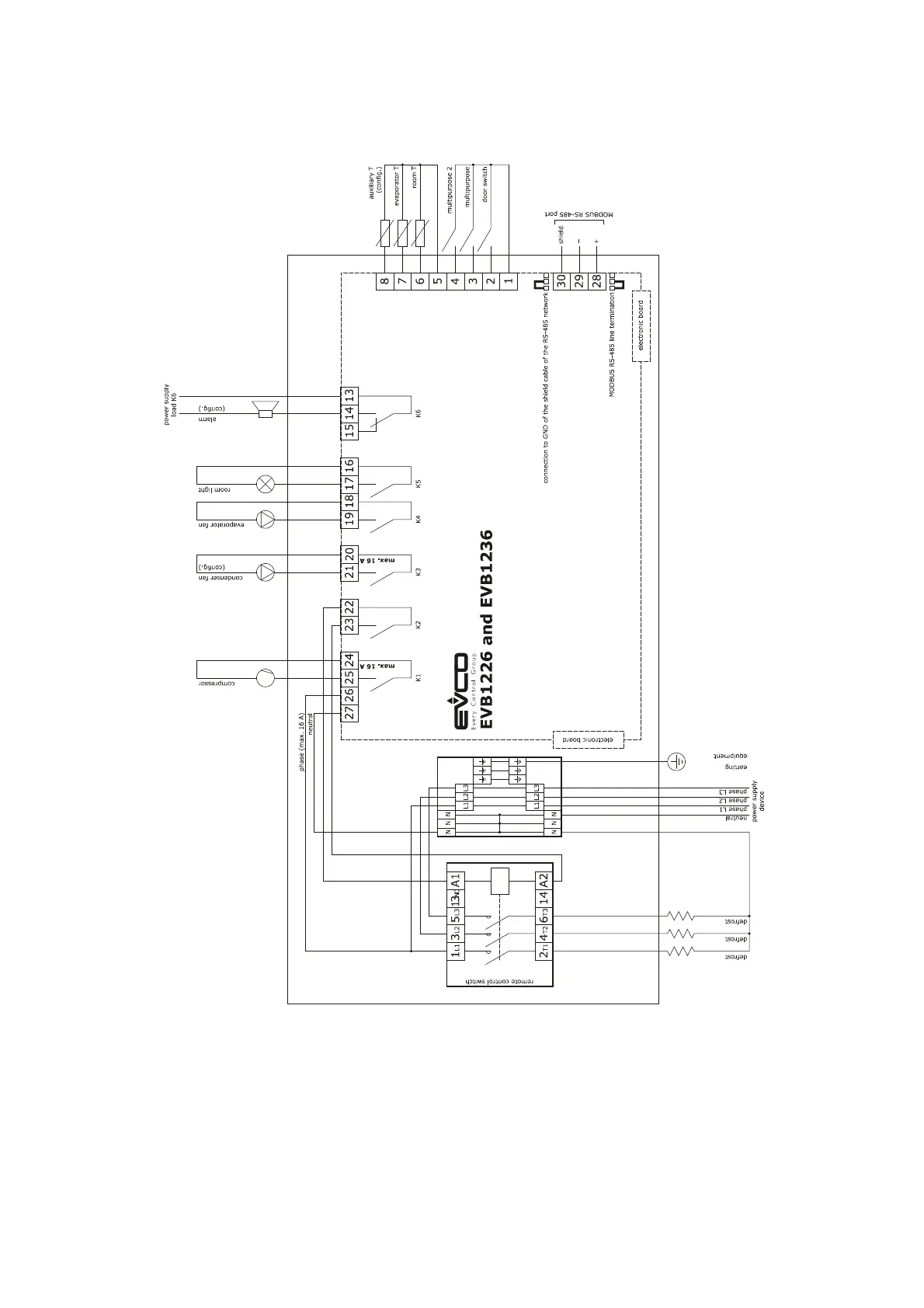

The following drawing shows the electric connections for the EVB1226 and EVB1236 models.
