Eventide ARGUS 5000 - Page 215

3.210±0.305
3.060
00.193
(4) PLACES
CHAMFER
0.438±0.005 X 45'
(4) CORNERS
-1 -21-3 -4 ITEM
PART No.
NOMENCLATURE OR DESCRIPTION
QTY REQUIRED
IS/1.
natptaas are w inches
TOlBWttSS
G. FLEMING
ENCKOR
REMOVE AU. BURBS
15 DEC 95
erar
ARGUS
Little Ferry, New Jersey 07643

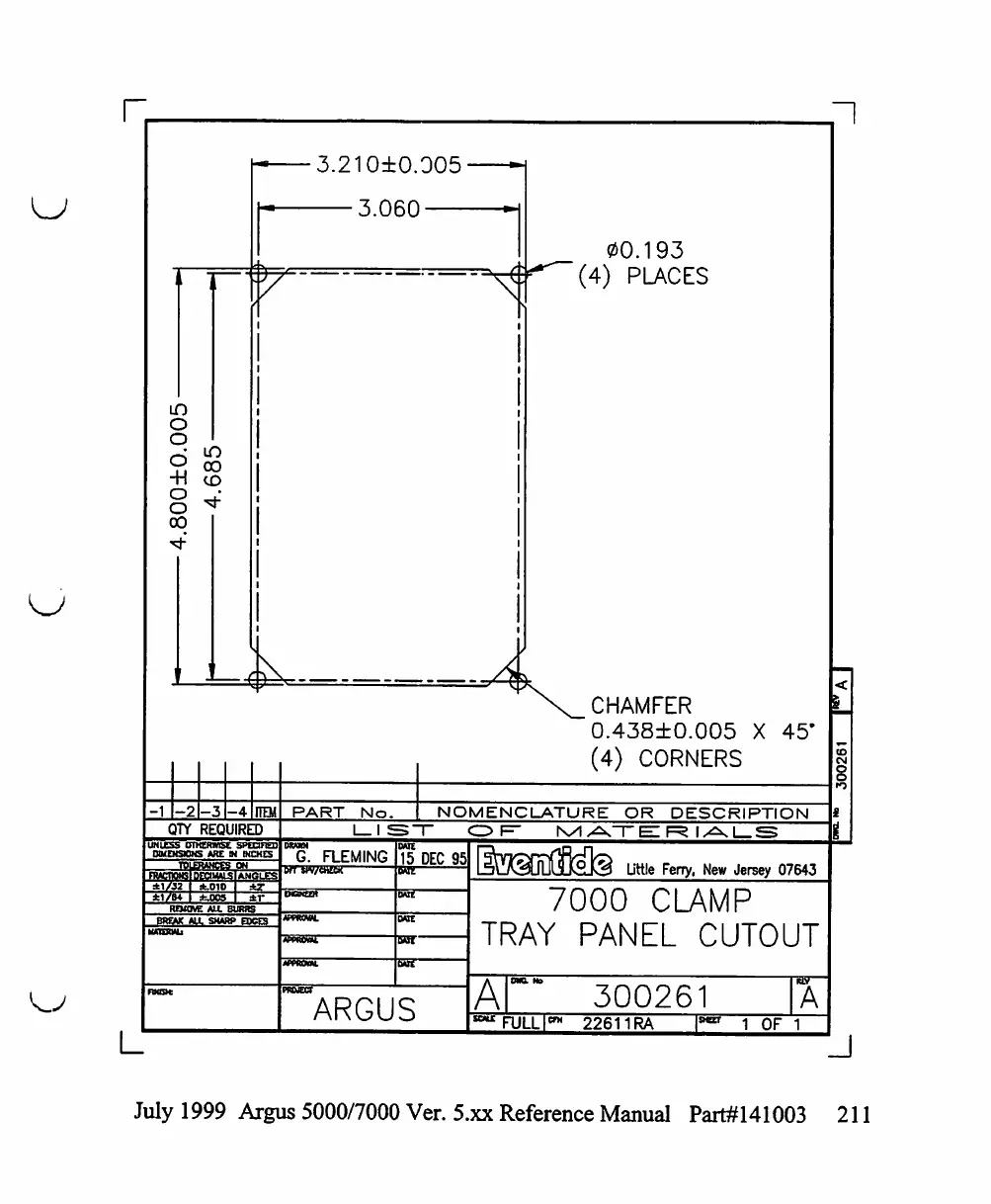

7000 CLAMP
TRAY PANEL CUTOUT
A
300261
FULL I0" 22611RA
A
July 1999 Argus 5000/7000 Ver. 5.xx Reference Manual Part#141003 211
