Eventide ARGUS 5000 - Page 216

3.210±0.005
3.060
00.193
(4) PLACES
CHAMFER
0.438±0.005 X 45'
(4) CORNERS
-1 -2 -3 -4 ITEM PART No.
NOMENCLATURE OR DESCRIPTION
QTY REQUIRED
wM
G. FLEMING
BMcnms oaawis angles
_*Z1
oSmT
REMOVE AU. BURRS
OWE
15 DEC 95
Bar
5sg"
ARGUS
Little Ferry, New Jersey 07643

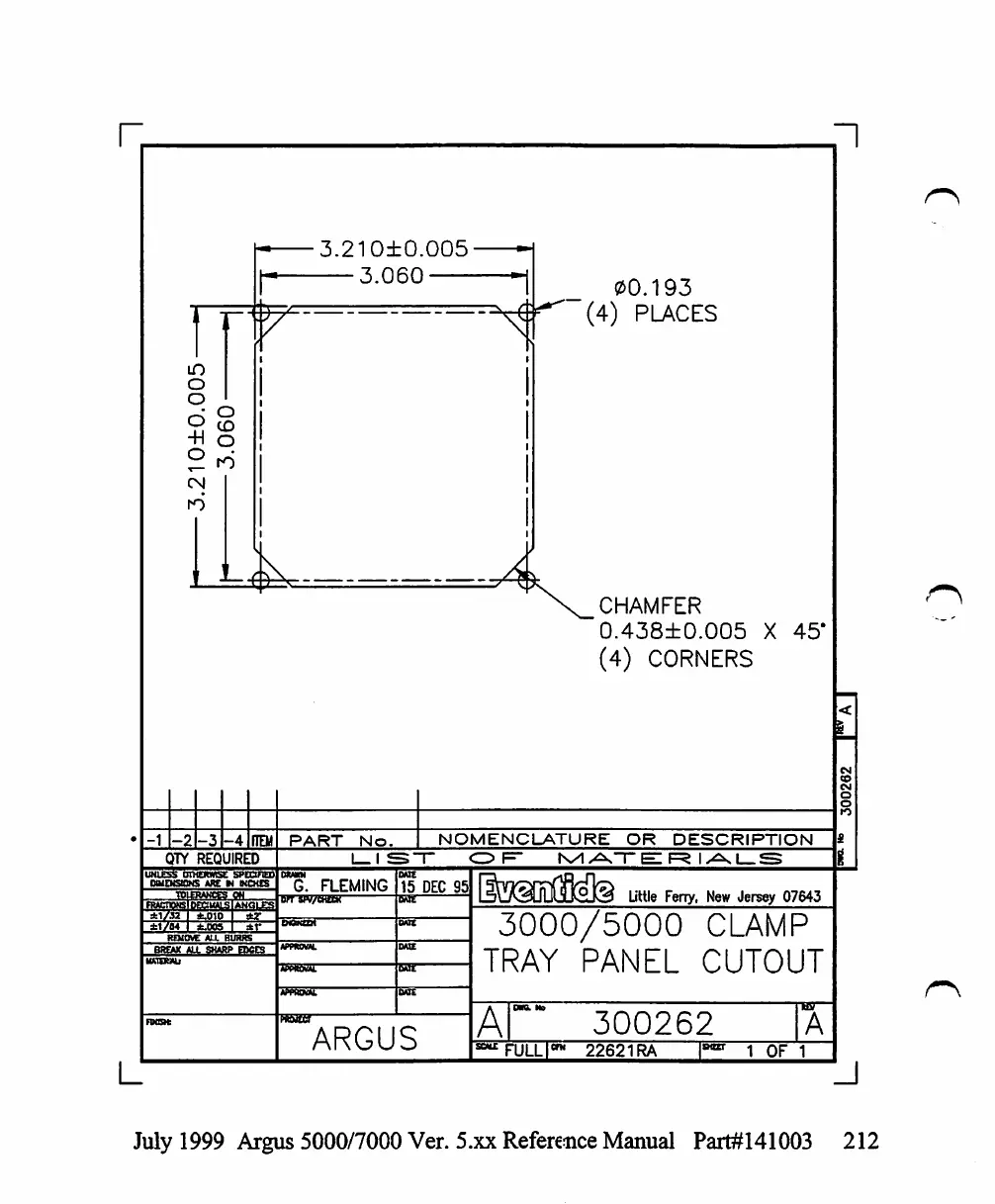

3000/5000 CLAMP
TRAY PANEL CUTOUT
A
300262
FULL I™ 22621RA
A
■» 1 OF 1
