ADF Connections — Standard install.
The exact configuration depends on your ADF.
For AC systems (AC SIN/COS or AC SYNCHRO)
Pin 3 is provided with 5 volts by the ARGUS, pin 23, through
1K resistor.
Install scaling resistors (provided) in line with the ADF. Ground
SYNCHRO Z, or the SIN/COS COMMON to the Argus pin 20.
The same excitation must be used for for ADF & HEADING.
For DC systems (SIN/COS OR -SIN/+C0S)
Pin 3 is supplied by the reference voltage. Be sure to set the
ARGUS to your ADF type in the set up mode.
When using the RMI adapter, do not install resistors. See
drawing 138012.
CD
Q
FOR AC SYSTEMS
AC SIN/SYNCHRO X
AC COS/SYNCHRO Y
AC SIN/COS COMMON/SYNCHRO Z
FOR DC SIN/COS SYSTEMS
ON ARGUS, CONNECT
TO SWITCH CONTACT
11.8K 1/4W IX
\AA >(ja)
11.8K 1/4W 1% y^L
Wv >(?)
IK
■AAAr
■>
DC SIN +
DC COS +
DC SIN-/COS-
y^
V.
*y
ON CE ARGUS,
CONNECT TO
ARGUS 1P1 PIN 1
ARGUS 1P1 PIN 2
ARGUS 1P1 PIN 20
ARGUS 1P1 PIN 23
ARGUS 1P1 PIN 3
ARGUS 1P1 PIN 1
ARGUS 1P1 PIN 2
ARGUS 1P1 PIN 3
FOR DC -SIN/+COS SYSTEMS
DC SiN -
DC COS +
DC SIN +
DC COS -

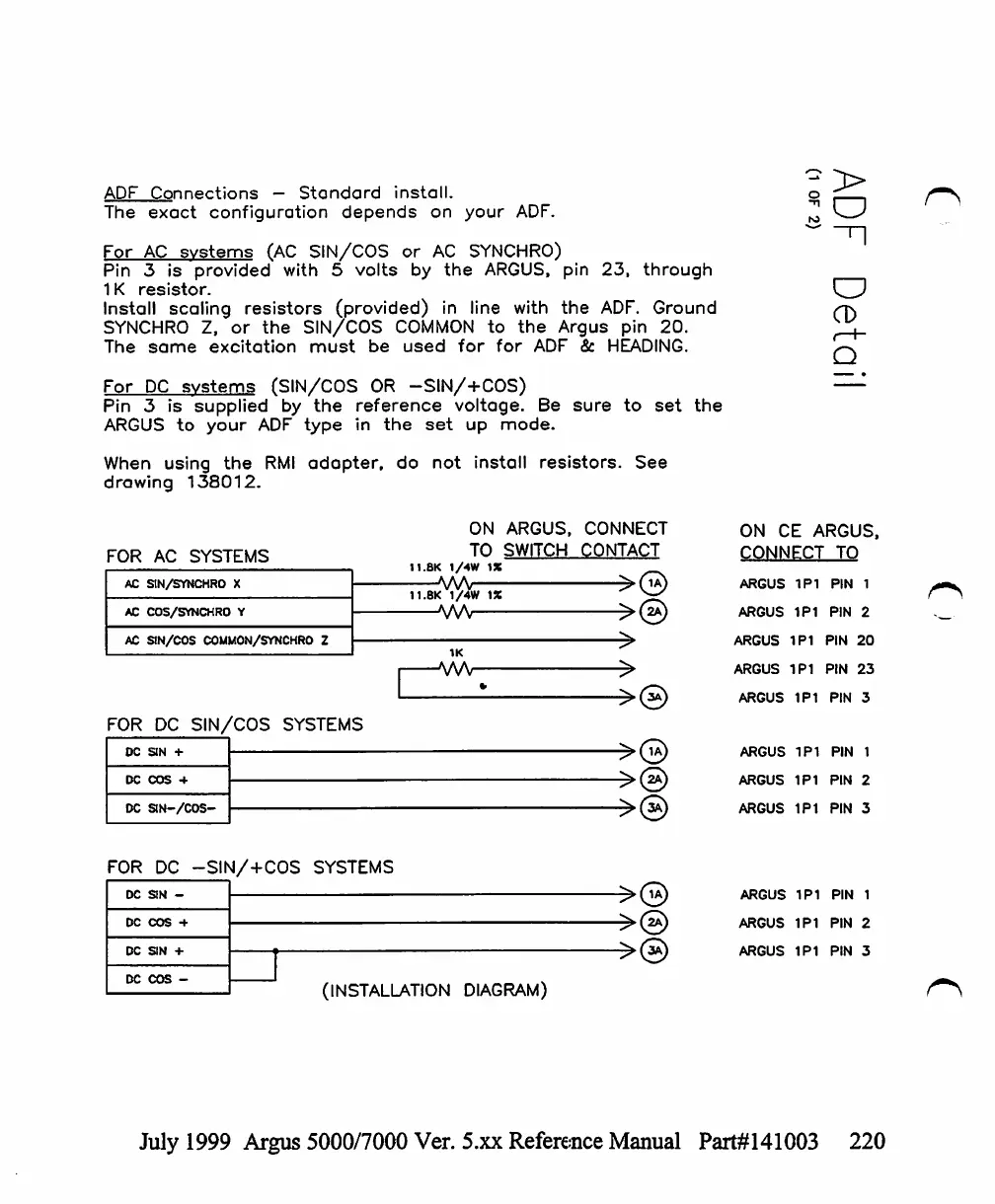

(INSTALLATION DIAGRAM)
ARGUS 1P1 PIN 1
ARGUS 1P1 PIN 2
ARGUS 1P1 PIN 3
