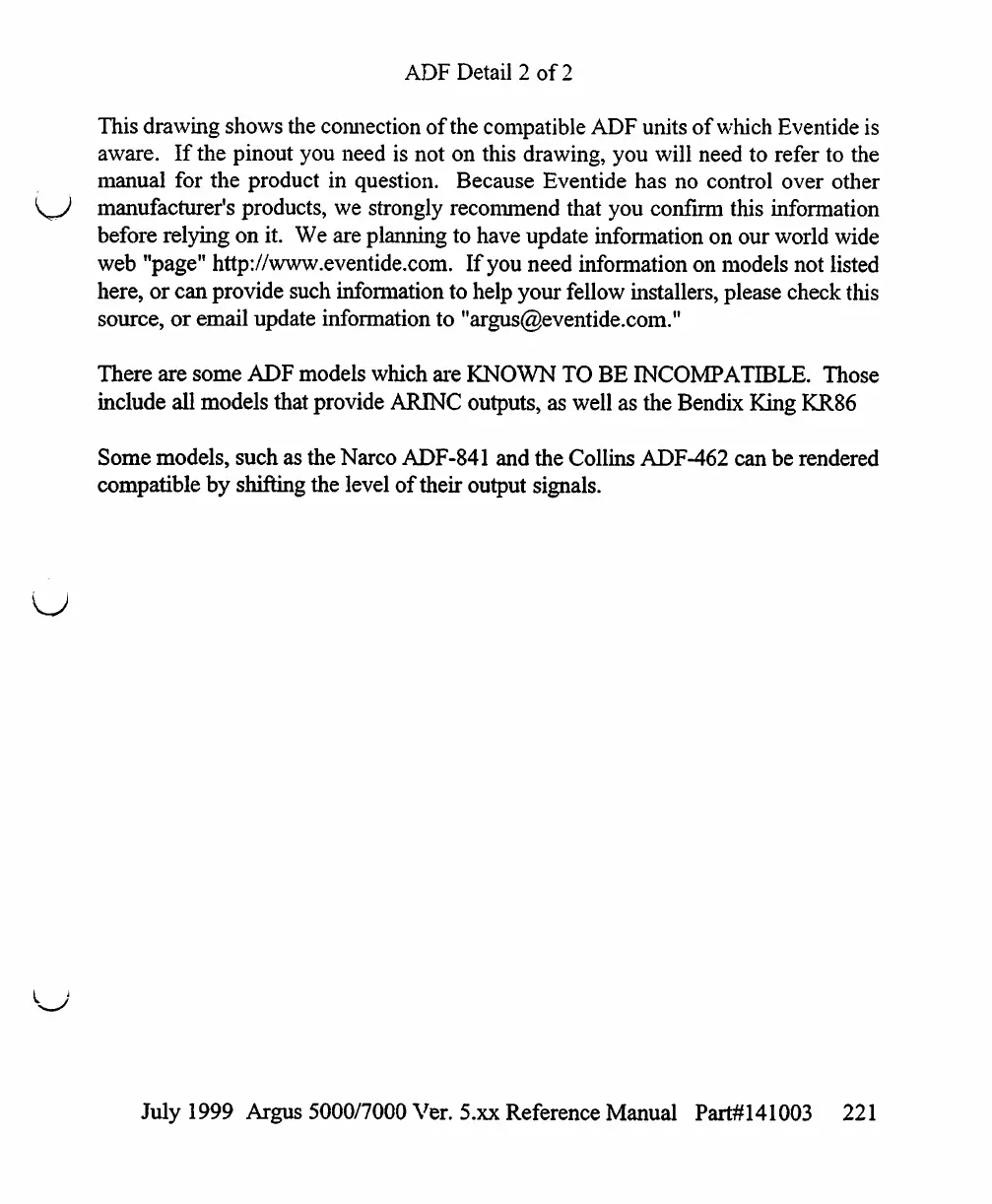

ADF Detail 2 of 2
This drawing shows the connection of the compatible ADF units of which Eventide is
aware. If the pinout you need is not on this drawing, you will need to refer to the
manual for the product in question. Because Eventide has no control over other
t\rrJ manufacturer's products, we strongly recommend that you confirm this information
before relying on it. We are planning to have update information on our world wide
web "page" http://www.eventide.com. If you need information on models not listed
here, or can provide such infonnation to help your fellow installers, please check this
source, or email update information to "argus@eventide.com."
There are some ADF models which are KNOWN TO BE INCOMPATIBLE. Those
include all models that provide ARINC outputs, as well as the Bendix King KR86
Some models, such as the Narco ADF-841 and the Collins ADF-462 can be rendered
compatible by shifting the level of their output signals.
